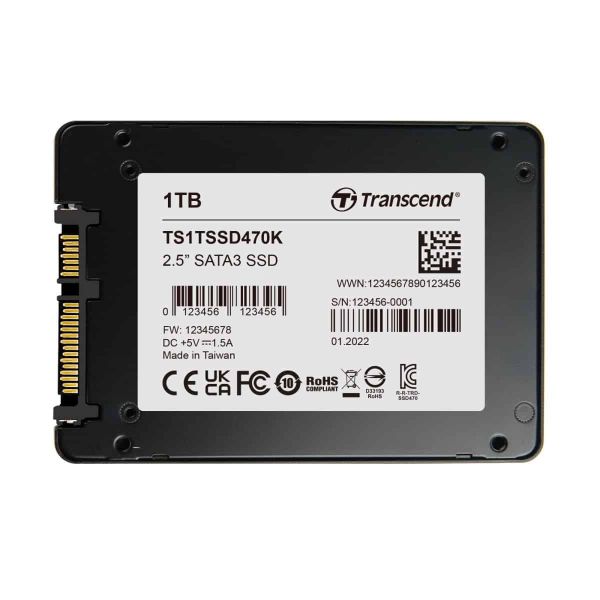

Transcend SSD470K 2.5" 1 TB SATA III 3D NAND

Transcend SSD470K, 1 TB, 2.5", 560 MB/s, 6 Gbit/s

Niet op voorraad

Fabrikant Transcend
MPN TS1TSSD470K
EAN 0760557855347
€ 143,00 excl. BTW

Transcend SSD470K 2.5" 1 TB SATA III 3D NAND

Transcend's SSD470K features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 112 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 96 layers, this density breakthrough greatly improves storage efficiency, and its built-in DRAM cache allows faster access. The SSD470K is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and an extended operating temperature ranging from -20℃~75℃.

Transcend also offers the SSD470K-I with wide temperature (-40℃ ~ 85℃) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
  • Dynamic thermal throttling
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • NCQ command for better performance
  • Full drive encryption with Advanced Encryption Standard (AES) (optional)
  • Power-saving DevSleep (Device Sleep) mode (optional)
  • Compliant with RoHS 2.0 standards
  • DDR3 DRAM Cache embedded
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Key components fortified by default with Corner Bond technology
  • Anti-sulfur technology implemented to prevent sulfurization in the environment
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
  • Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
  • Supports Transcend Scope Pro software

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

SSD-vormfactor*
2.5"
SSD capaciteit*
1 TB
Interface*
SATA III
Type geheugen*
3D NAND
NVMe*
Nee
Component voor*
PC/Laptop
Overdrachtssnelheid
6 Gbit/s
Leessnelheid
560 MB/s
Schrijfsnelheid
520 MB/s
Random read (4KB)
90000 IOPS
Random write (4KB)
85000 IOPS
DevSlp (apparaat in slaapstand) ondersteuning
Ja
S.M.A.R.T. support
Ja
TRIM support
Ja
ECC
Ja
NCQ (Native command queuing)
Ja
Mean time between failures (MTBF)
3000000 uur
TBW-classificatie
9680
SSD usage tagging
Ingebouwd

Energie

Operating voltage
5 V
Vermogensverbruik (avg)
5 W
Slaapstand
1,3 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 75 °C
Temperatuur bij opslag
-55 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Trillingen, in bedrijf
20 G
Schokbestendigheid
1500 G

Technische details

Duurzaamheidscertificaten
CE, RoHS

Gewicht en omvang

Breedte
100 mm
Diepte
69,8 mm
Hoogte
6,8 mm
Gewicht
54 g
