Transcend MTS602M M.2 256 GB SATA III MLC NAND

Transcend MTS602M, 256 GB, M.2, 530 MB/s, 6 Gbit/s

Nog slechts 5 beschikbaar

Fabrikant Transcend
MPN TS256GMTS602M
EAN 0760557855743
€ 337,00 excl. BTW

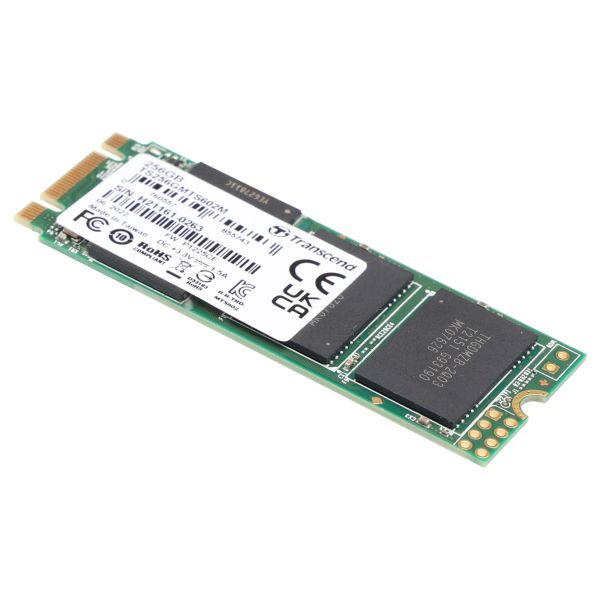

Transcend MTS602M M.2 256 GB SATA III MLC NAND

Transcend’s MTS602M with SATA III 6Gb/s interface and ultra compact dimensions make it best suited to address the high-performance needs and strict size limitations of small form factor devices. This means it is perfect for use in today’s modern ultrabooks, thin and light notebooks, and tablets. Built with the latest SATA III 6Gb/s specifications, and with a powerful controller and exceptional transfer speeds, the M.2 SSD easily handles everyday computing tasks as well as demanding multimedia applications.

Transcend also offers the MTS602I with wide temperature (-40℃ ~ 85℃) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
  • Built-in BCH ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • NCQ command for better performance
  • Full drive encryption with Advanced Encryption Standard (AES) (optional)
  • Power-saving DevSleep (Device Sleep) mode
  • Compliant with RoHS 2.0 standards
  • Space-saving M.2 form factor (60mm) – ideal for mobile computing devices
  • DDR3 DRAM Cache embedded
  • MLC NAND flash
  • Key components fortified by default with Corner Bond technology
  • 30µ" PCB gold finger
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Supports Transcend Scope Pro software

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

SSD-vormfactor*
M.2
SSD capaciteit*
256 GB
Interface*
SATA III
Type geheugen*
MLC NAND
NVMe*
Nee
Component voor*
PC/notebook
Overdrachtssnelheid
6 Gbit/s
Leessnelheid
530 MB/s
Schrijfsnelheid
450 MB/s
Random read (4KB)
70000 IOPS
Random write (4KB)
70000 IOPS
DevSlp (apparaat in slaapstand) ondersteuning
Ja
S.M.A.R.T. support
Ja
TRIM support
Ja
ECC
Ja
NCQ (Native command queuing)
Ja
Mean time between failures (MTBF)
2500000 uur
TBW-classificatie
1480
SSD usage tagging
Ingebouwd
Certificering
FCC, BSMI, UKCA

Energie

Operating voltage
3,3 V
Vermogensverbruik (avg)
2,5 W
Slaapstand
0,35 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Trillingen, in bedrijf
20 G
Schokbestendigheid
1500 G

Technische details

Duurzaamheidscertificaten
RoHS, CE

Gewicht en omvang

Breedte
60 mm
Diepte
22 mm
Hoogte
3,58 mm
Gewicht
7 g
