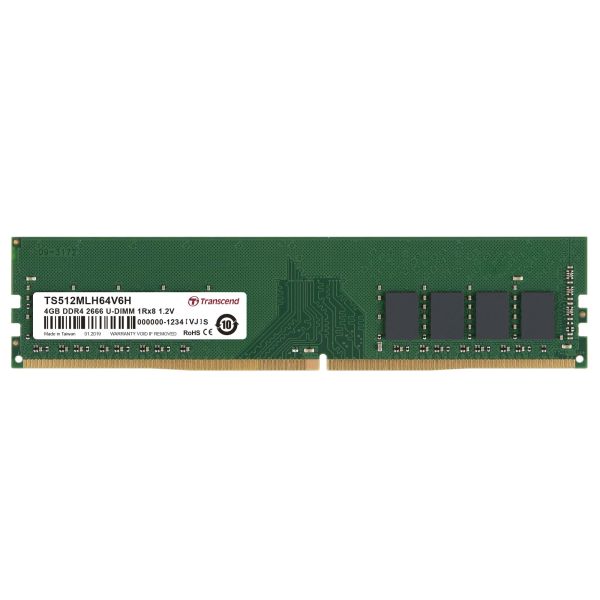

Transcend TS512MLH64V6H, 4 GB, 1 x 8 GB, DDR4, 2666 MHz, 288-pin DIMM

Niet op voorraad

Fabrikant Transcend
MPN TS512MLH64V6H
EAN 0760557843184

Transcend TS512MLH64V6H geheugenmodule 4 GB 1 x 8 GB DDR4 2666 MHz

Transcend's DDR4 DRAM modules operate at a nominal voltage of just 1.2V, offering higher energy efficiency and exceptional clock speeds to cater to the demands of the embedded industry. The modules are available in multiple form factors and technologies, such as ECC and wide-temperature support. All components are of the highest quality, having been sourced directly from the world's first-tier supplier of DRAM chips and stringently tested for unparalleled
compatibility, reliability, and performance.
  • JEDEC standard 1.2V ± 0.06V power supply
  • High energy efficiency
  • 8 bit pre-fetch
  • Burst Length: 4, 8
  • 16 Banks (4 Bank Groups)
  • Support DBI mode
  • Support Command/Address parity detection
  • Support Data Cyclic Redundancy Check (CRC) for improved data
  • reliability
  • On-die termination with ODT pin
  • Serial presence detect with EEPROM
  • 100% tested for stability, compatibility and performance

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Unregistered (unbuffered)
CAS-latentie
19
Intern geheugen*
4 GB
Geheugenlayout (modules x formaat)*
1 x 8 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
2666 MHz
Component voor*
Pc/server
Geheugen form factor*
288-pin DIMM

Kenmerken

ECC*
Nee
Geheugen rangschikking
1
Geheugen voltage
1.2 V
Module configuration
512M x 8
Geheugen bandbreedte (max)
21 GB/s

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
