Trendnet TEG-25GECTX netwerkkaart Intern Ethernet 2500 Mbit/s

Trendnet TEG-25GECTX, Intern, Bedraad, PCI Express, Ethernet, 2500 Mbit/s, Blauw, Zilver

Ruim op voorraad

Fabrikant Trendnet
MPN TEG-25GECTX
EAN 0710931140576
€ 27,00 excl. BTW

Trendnet TEG-25GECTX netwerkkaart Intern Ethernet 2500 Mbit/s

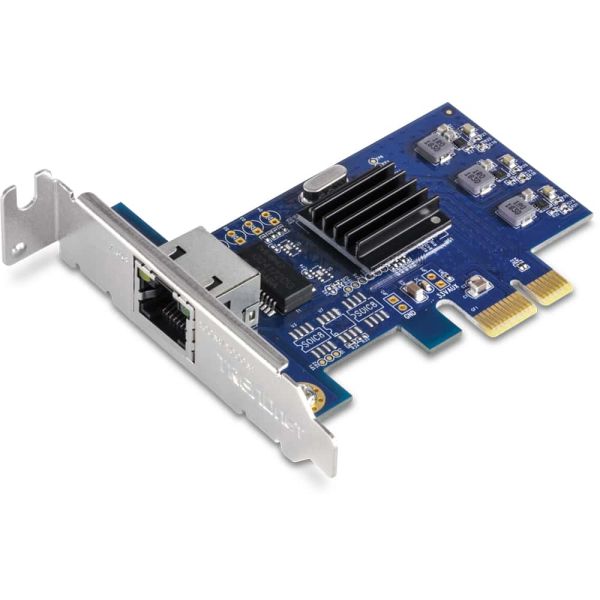

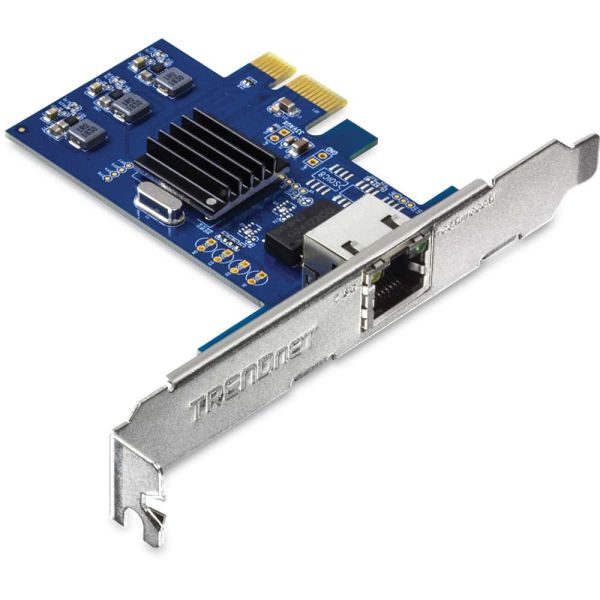

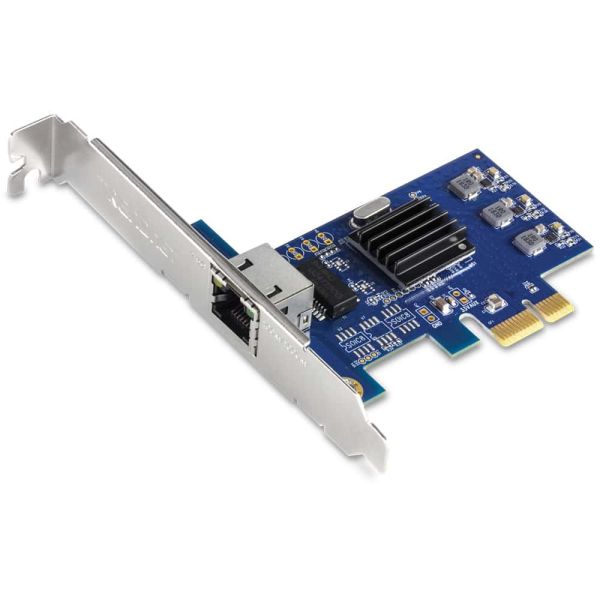

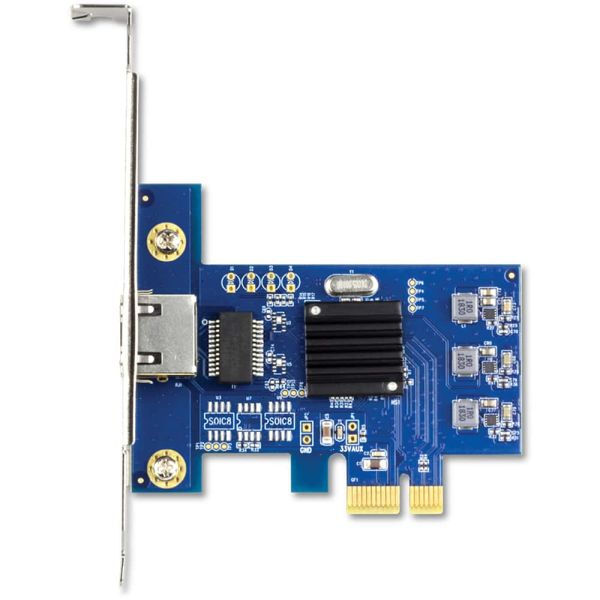

2.5GBASE-T PCIe Network Adapter

TRENDnet’s 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.

2.5G Port

2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance.

Operating Systems

Compatible with Windows, Windows Server, and Linux operating systems.

2.5G Port

2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

PCI Express

Converts a PCIe 2.0 x1 slot into a 2.5G Ethernet Port

2.5GBASE-T Support

2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance

VLAN Support

2.5G network adapter with IEEE 802.1Q tagged-based VLAN support

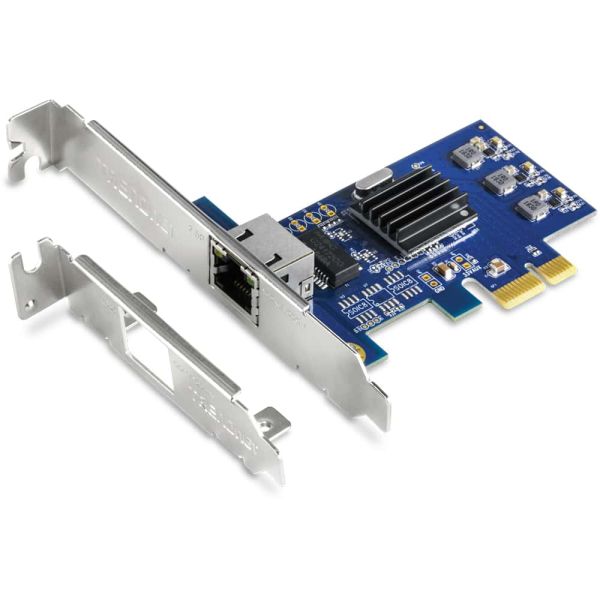

Brackets

Supports most installations with included standard and low-profile brackets

Operating Systems

Compatible with Windows, Windows Server, and Linux operating systems

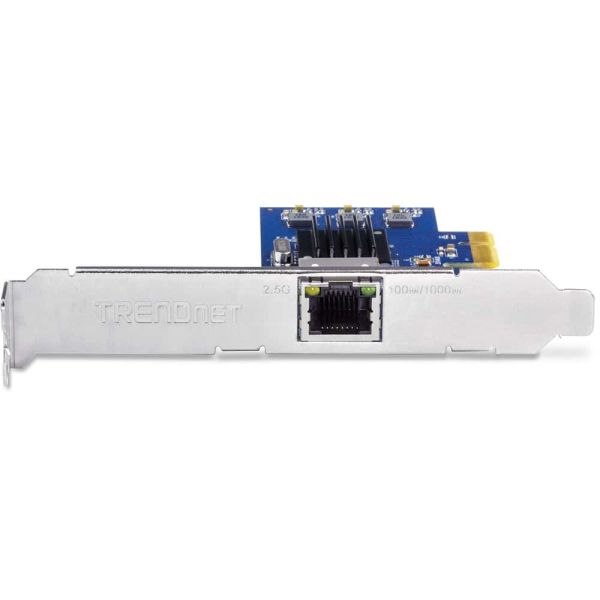

LED Indicators

LED indicators convey port status, link speed and activity
  • Converts a PCIe slot into a 2.5G Ethernet Port
  • Supports 802.1Q VLAN Tagging
  • Includes standard and low-profile brackets
  • Windows and Linux support
  • IEEE 802.3ab and 802.3bz compliant
  • Supports up to 9KB jumbo frames

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
1

Netwerk

Maximale overdrachtssnelheid van gegevens*
2500 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN
Ja

Design

Kleur van het product
Blauw, Zilver
Intern*
Ja
LED-indicatoren
Ja
Certificering
CE, FCC

Energie

Stroomverbruik (typisch)
1,8 W

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 7, Windows 8.1
Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2012, Windows Server 2016

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
84 mm
Diepte
64 mm
Hoogte
18 mm
Gewicht
42 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Maximale temperatuur (in bedrijf)
40 °C
Snelstartgids
Ja
