Trendnet TEW-AO46S antenne Omnidirectionele antenne N-type 6 dBi

Trendnet TEW-AO46S, 6 dBi, 2.4 - 2.5 / 5.15 - 5.88 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 4 dBi, 6 dBi, 50 Ohm

Niet op voorraad

Fabrikant Trendnet
MPN TEW-AO46S
EAN 0710931130539
€ 54,00 excl. BTW

Trendnet TEW-AO46S antenne Omnidirectionele antenne N-type 6 dBi

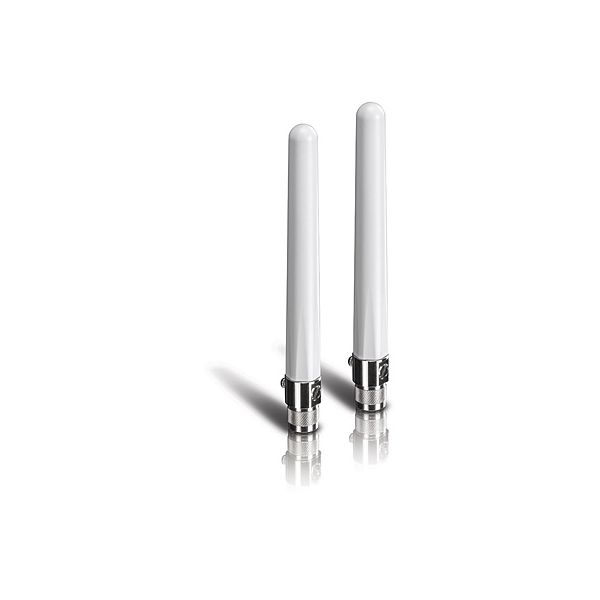

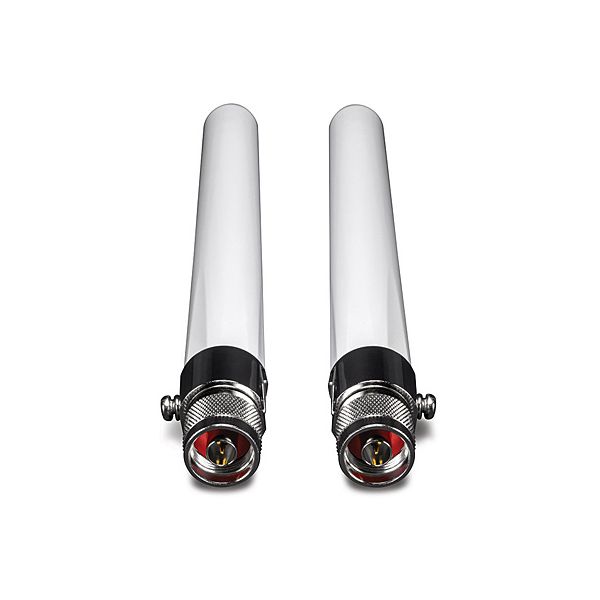

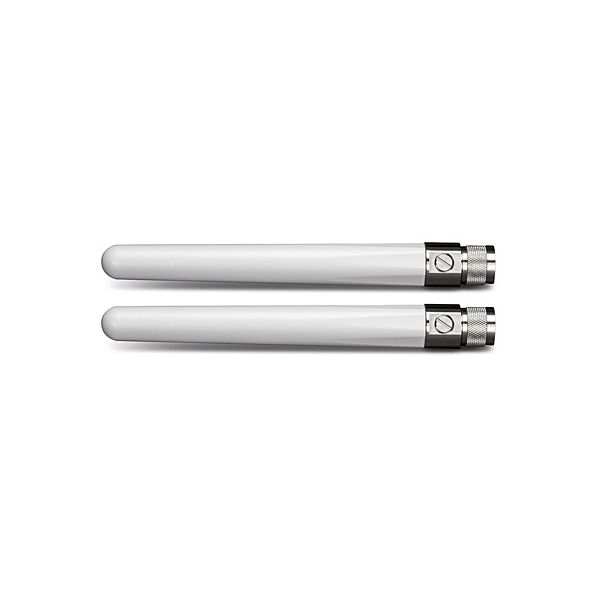

TRENDnet’s 4/6 dBi Surge Outdoor Dual Band Omni Antenna Kit, model TEW-AO46S, comes with a pair of high performance outdoor antennas which support 2.4 and 5 GHz radio transmissions. The omni-directional antennas provide blanket wireless coverage, have an N-Type male connector, and feature a replaceable surge protection fuse. The antennas work with 802.11ac/n/g/b/a routers and access points with N-Type female connectors.
- Antenna Kit
Comes with a pair of outdoor antennas
- Outdoor
Durable antenna construction for extreme outdoor conditions
- Omni-Directional
Omni-directional antennas for blanket wireless coverage
- Dual Band Support (2.4 + 5 GHz)
Compatible with 802.11ac/n/g/b/a routers and access points
- Antenna Gain
2.4 GHz peak gain: 4 dBi, 5 GHz peak gain: 6 dBi
- Surge Protection
Replaceable surge protection fuse and grounding point
- N-Type Connector
N-Type male connectors are compatible with routers and access points with N-Type female connectors
* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna align-ment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Frequentieband*
2.4 - 2.5 / 5.15 - 5.88 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Antenne versterking (2.4 GHz)
4 dBi
Antenna versterking (5 GHz)
6 dBi
Impedantie
50 Ohm
H-plane (3 dB straalbreedte)
360°
E-plane (3 dB straalbreedte)
30°
Antenne versterkingsniveau (max)*
6 dBi

Kenmerken

Soort antenne*
Omnidirectionele antenne
Aansluiting antenne*
N-type
Geslacht connector
Mannelijk
Polarisatie
Verticale polarisatie
Voltage Standing Wave Ratio (VSWR)
2.0 max.: 1
Power handling
2 W
Bedoeld voor
Buiten

Kenmerken

Compatibele producten
Compatible with 802.11ac/n/g/b/a routers and access points with N-Type female connectors
Kleur van het product
Wit

Technische details

Duurzaamheidscertificaten
RoHS

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 70 °C

Gewicht en omvang

Breedte
20 mm
Hoogte
220 mm
Gewicht
112 g

Inhoud van de verpakking

Aantal per verpakking
2 stuk(s)

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85177100
