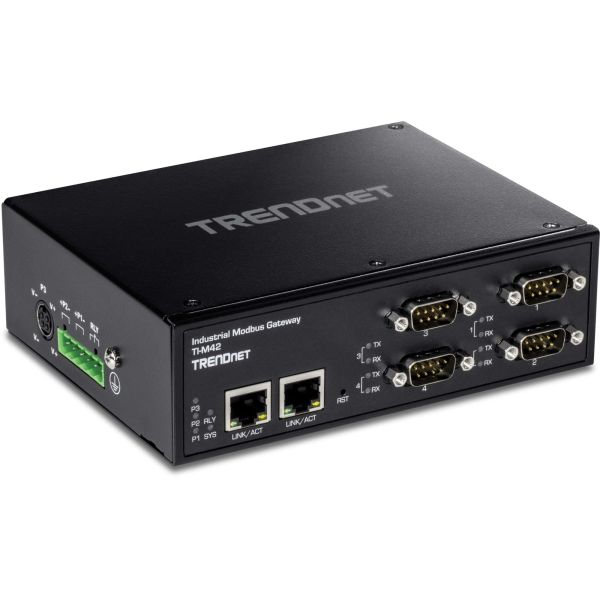

Trendnet TI-M42 gateway/controller 10, 100 Mbit/s
Trendnet TI-M42, Zwart, IP30, 4 x Serial (DB-9) ports, 10,100 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, RS-232/422/485
Niet op voorraad
Fabrikant
Trendnet
MPN
TI-M42
EAN
0710931162189
€ 359,00
excl. BTW
(€ 434,39 incl. BTW)
Trendnet TI-M42 gateway/controller 10, 100 Mbit/s
TRENDnet’s Industrial Modbus Gateway, model TI-M42, provides four port serial connections, and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling . This industrial gateway allows users to connect four modbus serial devices to a network.
Network
Two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Connect up to four RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within a wide operation temperature range -40° - 75° C (-40° – 167° F).
Network
Two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Connect up to four RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within a wide operation temperature range -40° - 75° C (-40° – 167° F).
- Connect up to four RS-232/RS-422/RS-485 serial devices to a network
- Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
Kleur van het product*
Zwart
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Kenmerken
Interface
4 x Serial (DB-9) ports
Prestatie
Besturings -en afbeeldingseenheid*
Nee
Netwerk
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Beveiliging
MAC adres filtering
Ja
Poorten & interfaces
RS-232 port
4
Poorten & interfaces
Soort serieële aansluiting
RS-232/422/485
Energie
Vermogensverbruik (max)
3,84 W
Ingangsspanning
48 V
Gewicht en omvang
Breedte
103,5 mm
Diepte
81,5 mm
Hoogte
32 mm
Gewicht
512 g
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
