Trendnet TI-PE50 netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart

Trendnet TI-PE50, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant Trendnet
MPN TI-PE50
EAN 0710931161601
€ 93,00 excl. BTW

Trendnet TI-PE50 netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart

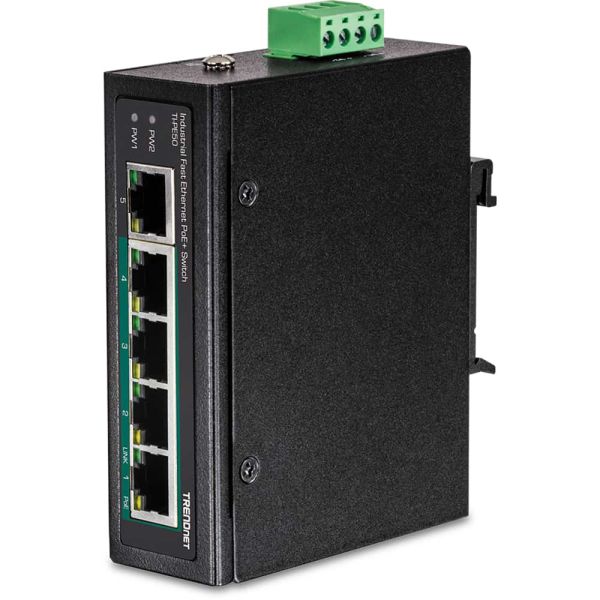

TRENDnet’s Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
  • 4 x Fast Ethernet PoE+ ports
  • 1 x Fast Ethernet port
  • 90W PoE power budget
  • 1Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail mount and wall mount brackets
  • Wide operating temperature range of -40° – 75°C (-40° – 167°F)
  • Dual inputs provide redundant power with overload current protection
  • Power supply sold separately (model: TI-S12048)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
5
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Fast Ethernet (koperen) ports kwantiteit
5

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Full duplex
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
1 Gbit/s
Verzending snelheid
0,1488 Mpps
MAC-adrestabel*
1024 entries
Store-and-forward
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja

Design

DIN rail bevestiging
Ja
Certificering
CE, FCC

Prestatie

Mean time between failures (MTBF)
708903 uur

Energie

Redundante voeding
Ja
DC voltage input
48 - 56 V
Vermogensverbruik (max)
2,24 W
Stroomspanning bescherming
Overbelasting

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Totaal Power over Ethernet (PoE)-budget
90 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Gewicht en omvang

Breedte
103 mm
Diepte
82 mm
Hoogte
31 mm
Gewicht
160 g

Verpakking

Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
