Trendnet TI-PG102I, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Nog slechts 8 beschikbaar

Fabrikant Trendnet
MPN TI-PG102I
EAN 0710931161342

Trendnet TI-PG102I netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

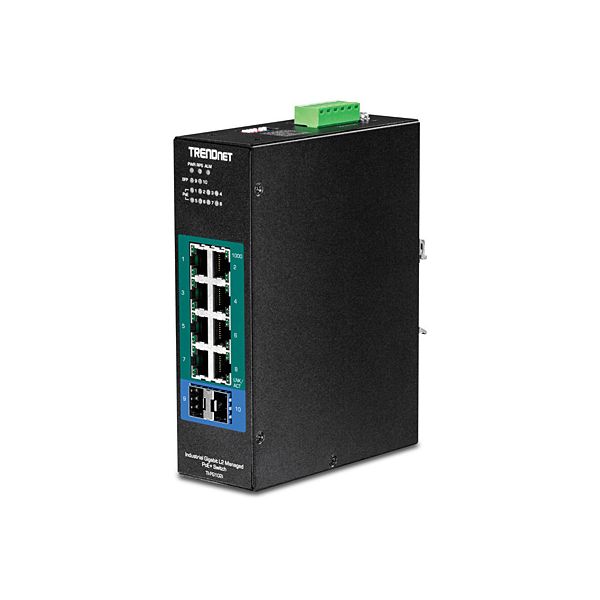

TRENDnet’s 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG102i, features eight Gigabit PoE+ ports with a 240W PoE budget, and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

PoE Power
A 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

Industrial Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

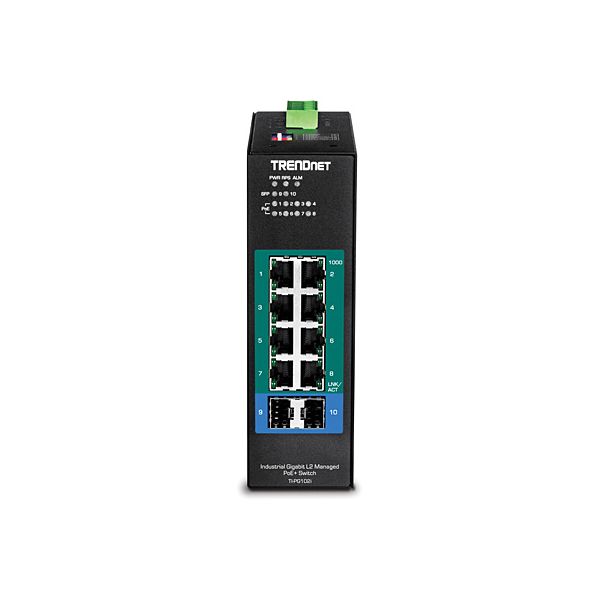

Network Ports
8 x Gigabit PoE+ ports, 2 x Gigabit SFP Slots

PoE Power
Supplies up to 30W of PoE+ power per port with a 240W power budget

Full PoE Control Per Port
Available PoE port controls include enabling / disabling PoE, power priority, PD alive check, and power scheduling

Traffic Management
Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP spanning tree, and link aggregation for flexible network integration

Access Control
Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

System Monitoring
Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI

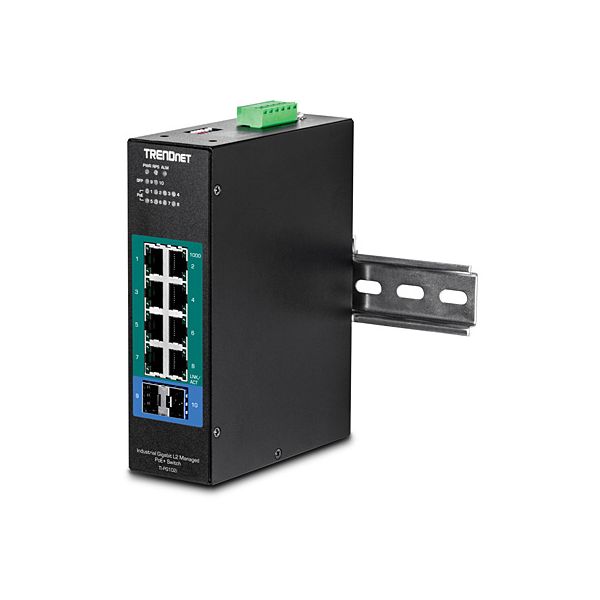

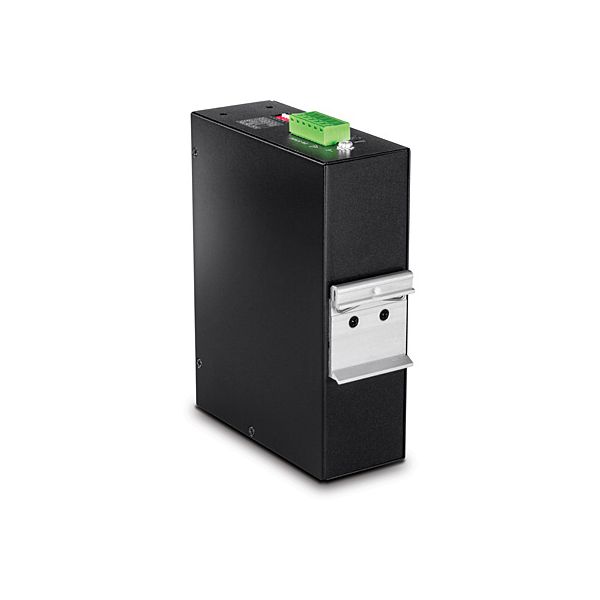

DIN-Rail Mount
IP30 rated metal enclosure includes DIN-rail mounting bracket

Switching Capacity
20Gbps switching capacity

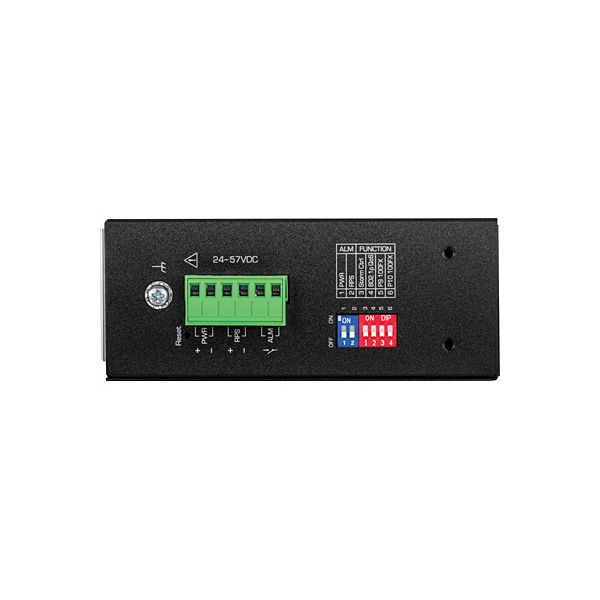

Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: TI-S24048, TI-S48048, TI-S12024)

Alarm Relay
Alarm relay output triggered by power failure of primary and / or redundant power

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Wide Temperature Range
A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in extreme hot or cold environments

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point
Grounding point protects equipment from external electrical surges
  • 8 x Gigabit PoE+ ports
  • 2 x SFP slots
  • Supports 100/1000Base-FX fiber SFP modules
  • PoE power budget: 240W@48VDC or 124W@24VDC
  • PoE alive check restarts unresponsive PoE powered devices
  • 20Gbps switching capacity
  • Hardened IP30 rated metal housing
  • Includes DIN-rail mounting bracket
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
  • IEEE 802.1p QoS with queue scheduling support
  • Bandwidth control per port
  • Dual redundant power inputs with overload current protection
  • Alarm output triggered by power failure

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
System event log
Ja
MIB-ondersteuning
MIB II RFC 1213, MIB RFC 1493, RMON (1,2,3,9) RFC 2819 RFC 1757

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Port mirroring
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
MAC-adres zelflerende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN, MAC address-based VLAN
Aantal VLANs
256

Data-uitwisseling

Switchingcapaciteit*
20 Gbit/s
Verzending snelheid
14,88 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
128 MB

Beveiliging

DHCP-functies
DHCP server, DHCP relay
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SNMP, SNMPv3, SSH
Bescherming lus
Ja

Beveiliging

BPDU filtering / bescherming
Ja

Multicast-functies

Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
256

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
Reset button
Ja
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
DIN rail bevestiging
Ja
Certificering
CE, FCC, (IEC 60068-2-27), (IEC 60068-2-32), (IEC 60068-2-6)

Prestatie

Upgraden van firmware mogelijk
Ja
Mean time between failures (MTBF)
562234 uur

Energie

DC voltage input
24 - 57 V
Vermogensverbruik (max)
253 W
Spanningsbeveiliging
Ja

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
160 mm
Diepte
120 mm
Hoogte
50 mm
Gewicht
930 g

Verpakking

Snelstartgids
Ja
Klemmenblok inclusief
Ja
DIN-rail inbegrepen
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
