Trendnet TI-PG50F netwerk-switch Managed Zwart Power over Ethernet (PoE) (TI-PG50F)

Schrijf de eerste review over dit product en win een coupon van € 100,-!

€ 187,00
excl. BTW € 226,27 incl. BTW
Partnummer:

TI-PG50F

EAN: 0710931161564 Beschikbaarheid: Nog 2 beschikbaar (bel voor reservering)
Omschrijving

5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

Bestel Nu >>
Toon in vergelijking
Toevoegen aan favorieten

Productinformatie

Trendnet TI-PG50F. Switch type: Managed. MAC-adrestabel: 2 entries, Switchingcapaciteit: 10 Gbit/s. Netwerkstandaard: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x. Power over Ethernet (PoE). Rack-montage

TRENDnet’s Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

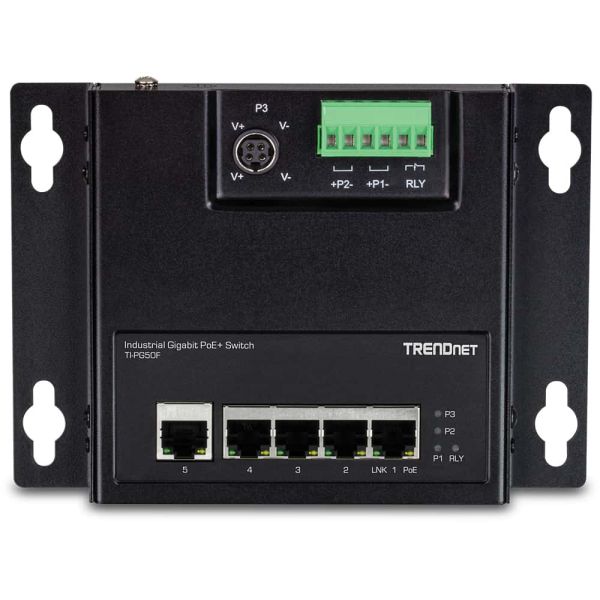

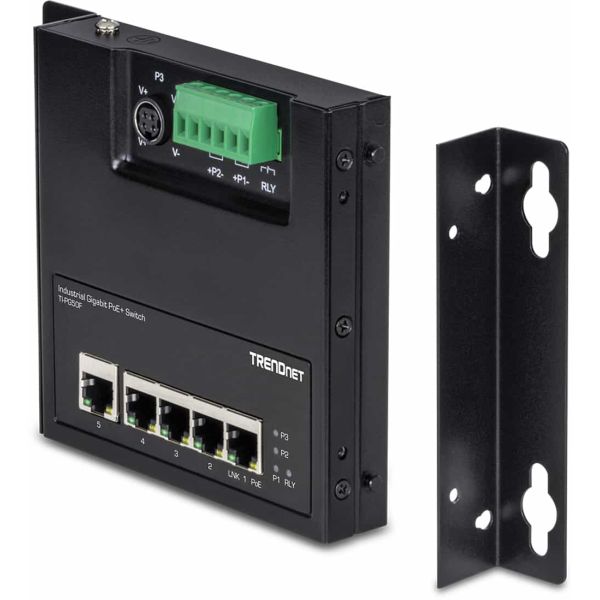

Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It’s flat and compact size make it ideal for cabinet installations where space is limited.

PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices.

Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port

PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget

Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation

Compact
The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

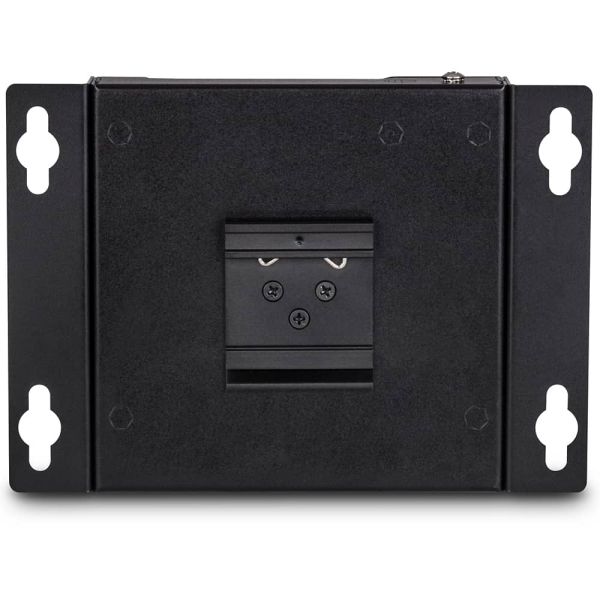

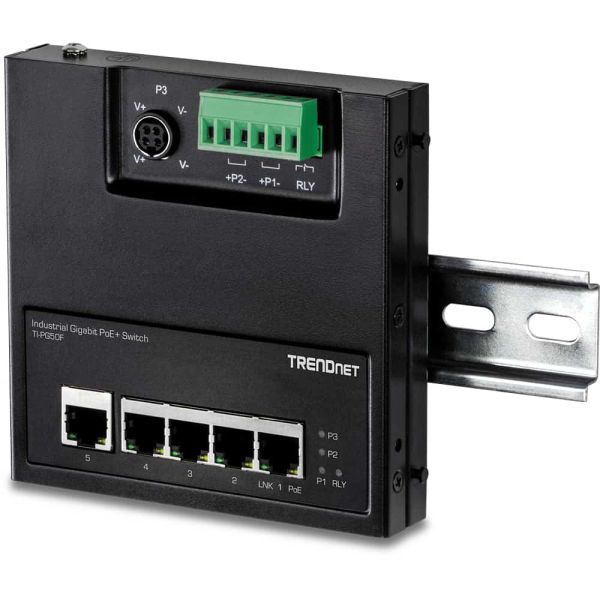

DIN-Rail Mount
Includes DIN-Rail mounting bracket

Switching Capacity
16Gbps switching capacity

Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: TI-S12048, TI-S24048, and 48VDC3000)

Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs

Jumbo Frames
Sends larger packets, or jumbo frames (up to 9KB), for increased performance

Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments

Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings

Grounding Point
Grounding point protects equipment from external electrical surges

LED Indicators
Front access switch with LED indicators that convey power and port status

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Ontwerp

Rack-montage Ja
Certificering CE
FCC
UL
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Kleur van het product Zwart

Beheerfuncties

Switch type Managed

Netwerk

Netwerkstandaard IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Port mirroring Ja

Data-uitwisseling

MAC-adrestabel 2 entries
Switchingcapaciteit 10 Gbit/s
Jumbo Frames ondersteuning Ja
Jumbo frames 9
Verzending snelheid 7,44 Mpps

Beveiliging

MAC adres filtering Ja

Prestatie

Stapelbaar Nee
Packet buffergeheugen 64 MB
Mean time between failures (MTBF) 454556 uur

Energie

AC invoer voltage 100 - 240 V
AC invoer frequentie 50 - 60 Hz
Stroom 2 A

Power over Ethernet (PoE)

Power over Ethernet (PoE) Ja
Aantal Power over Ethernet plus (PoE +)-poorten 4
Totaal Power over Ethernet (PoE)-budget 200 W
Vermogen per poort Power over Ethernet (PoE) 5 W

Eisen aan de omgeving

Temperatuur, in bedrijf -40 - 75 °C
Luchtvochtigheid bij opslag 0 - 95 procent

Gewicht en omvang

Breedte 118 mm
Diepte 23,5 mm
Hoogte 118 mm
Gewicht 425 g

Verpakking

Snelstartgids Nee
Rekbevestigingspakket Ja
