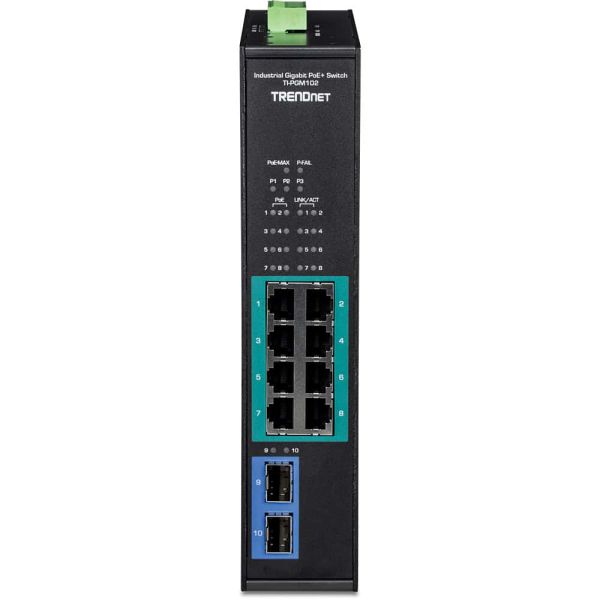

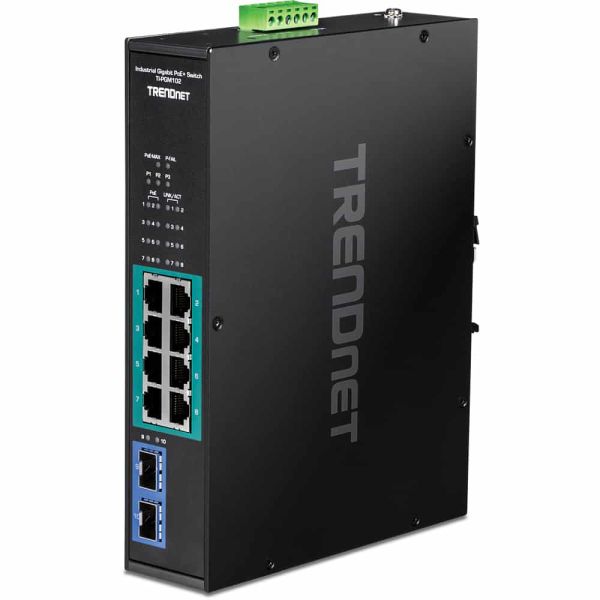

Trendnet TI-PGM102 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Trendnet TI-PGM102, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant Trendnet
MPN TI-PGM102
EAN 0710931162202
€ 176,00 excl. BTW

Trendnet TI-PGM102 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget

Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots

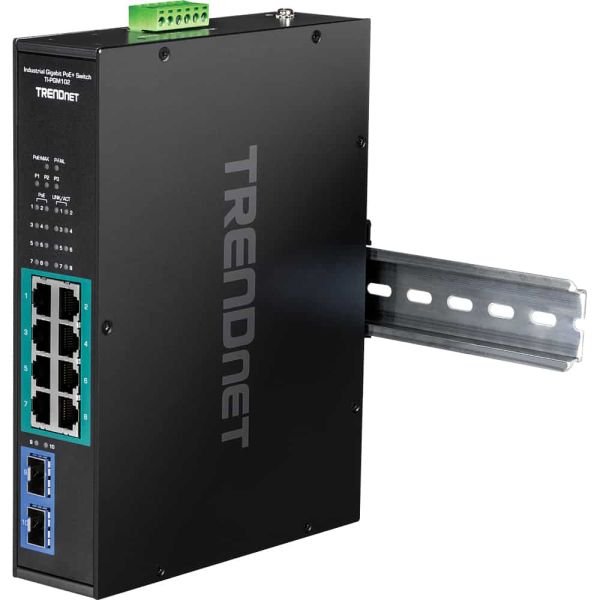

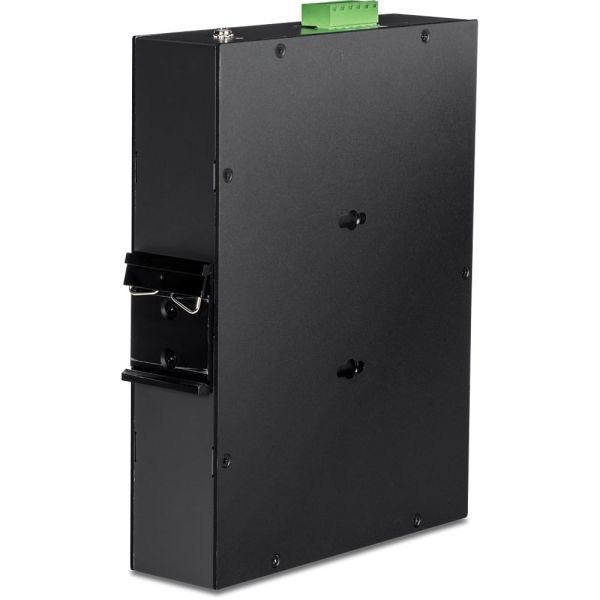

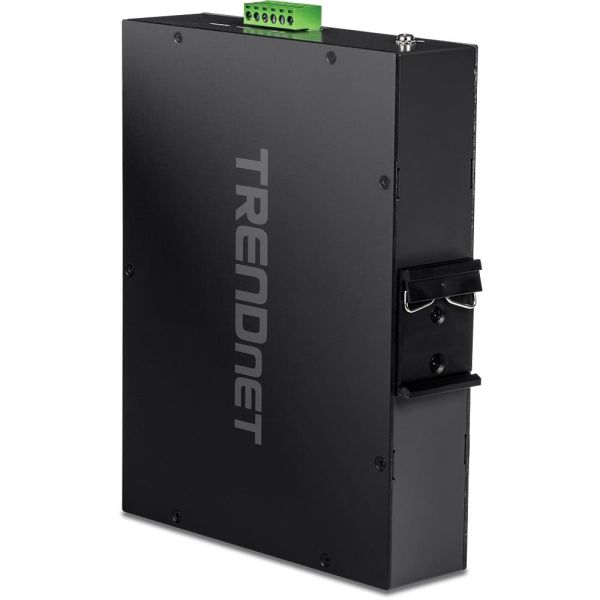

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware

Switching Capacity
20Gbps switching capacity

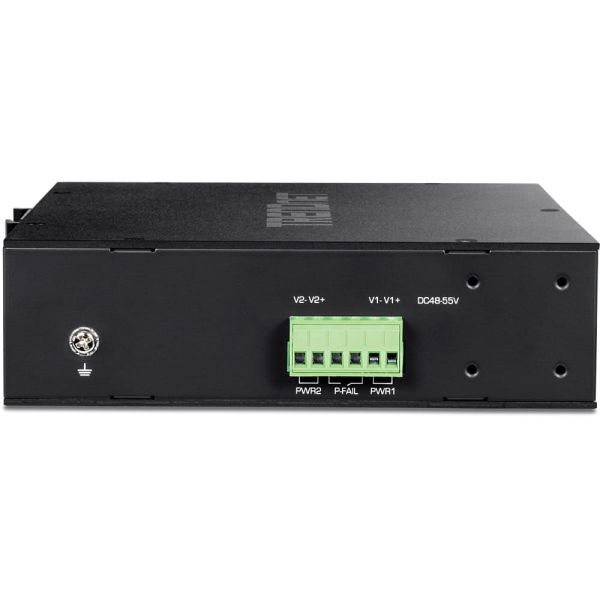

Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24052, TI-S24048)

Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Wide Operating Temperature
Rated for an operating temperature range of -20° – 65°C (-4° – 149°F)

Grounding Point
Grounding point protects equipment from external electrical surges
  • 8 x Gigabit PoE+ ports
  • 2 x Gigabit SFP slots
  • 240W PoE power budget
  • 20Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Wide operating temperature range of -20° – 65°C (-4° – 149°F)
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (models: TI-S24052, TI-S24048)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
8
Aantal geïnstalleerde SFP modules*
2

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Full duplex
Ja
Half-duplex
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
20 Gbit/s
Verzending snelheid
14,88 Mpps
MAC-adrestabel*
4000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
1
Packet buffergeheugen
1,5 MB

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja

Prestatie

Mean time between failures (MTBF)
1000000 uur

Energie

Stroombron*
DC
Vermogenstoevoer inclusief*
Nee
Redundante voeding
Ja
DC voltage input
48 - 55 V
Vermogensverbruik (max)
6,38 W
Stroomspanning bescherming
Overbelasting

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
240 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 65 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
210 mm
Diepte
160 mm
Hoogte
45 mm
Gewicht
1,1 kg

Verpakking

Snelstartgids
Ja
Rekbevestigingspakket
Ja
