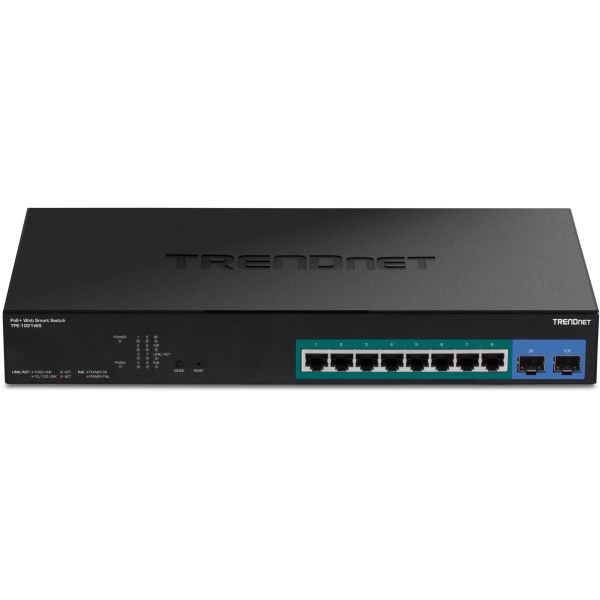

Trendnet TPE-1021WS netwerk-switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Trendnet TPE-1021WS, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage

Nog slechts 7 beschikbaar

Fabrikant Trendnet
MPN TPE-1021WS
EAN 0710931162103
€ 257,00 excl. BTW

Trendnet TPE-1021WS netwerk-switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

TRENDnet TPE-1021WS - Switch - Smart - 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP - Desktop, an Rack montierbar - PoE+ (130 W)
  • 8 x Gigabit PoE+ ports
  • 2 x SFP slots
  • 130W PoE power budget
  • Easy-to-use web-based management interface
  • PoE alive check automatically attempts to recover an unresponsive PoE device connected
  • Remote cloud management with TRENDnet Hive (Additional fee applies)
  • Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
  • IPv4/IPv6 Static Routing support
  • Bandwidth control per port
  • Private, Multicast, and Voice VLAN support
  • IEEE 802.1p QoS with queue scheduling support
  • 20Gbps switching capacity

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3/L4
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Locatie-instellingen (CLI) configureren
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring
Ja
Routing entries
32
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
256

Data-uitwisseling

Switchingcapaciteit*
20 Gbit/s
Verzending snelheid
14,9 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
4,1 MB

Beveiliging

DHCP-functies
DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
HTTPS, SNMP, SNMPv2, SNMPv3, SSL/TLS, TLS
SSH/SSL support
Ja
Authenticatie type
RADIUS, TACACS+

Multicast-functies

Multicast-ondersteuning
Ja
Multicast MAC adrestabel
256 entries

Protocollen

GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage*
Ja
Kleur van het product
Zwart
LED-indicatoren
Ja

Prestatie

Fanloos
Ja
Mean time between failures (MTBF)
590929 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
152,3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
130 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C

Gewicht en omvang

Breedte
330 mm
Diepte
180 mm
Hoogte
44 mm
Gewicht
1,76 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
