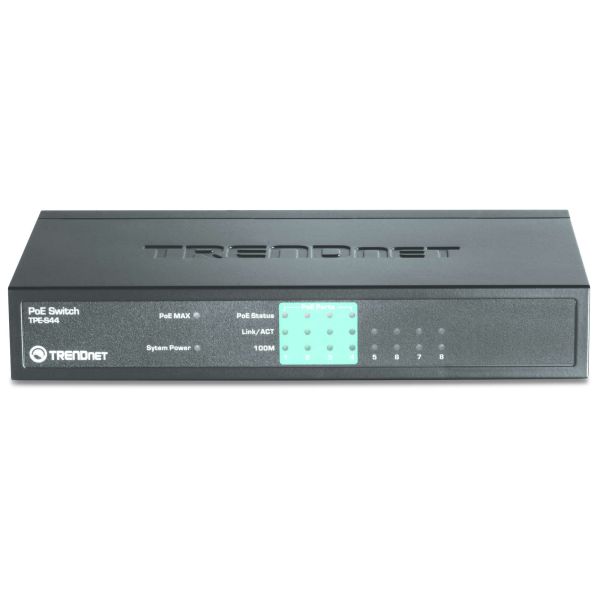

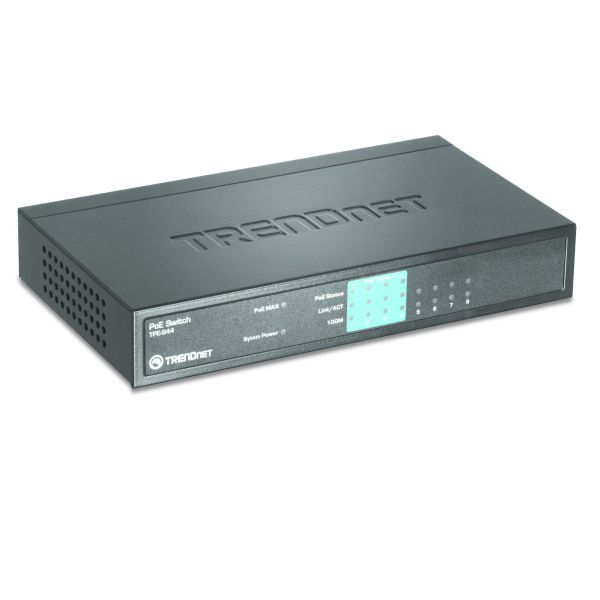

Trendnet TPE-S44 netwerk-switch Unmanaged Power over Ethernet (PoE) Blauw

Trendnet TPE-S44, Unmanaged, Full duplex, Power over Ethernet (PoE)

Nog 2 beschikbaar (bel voor reservering)

Fabrikant Trendnet
MPN TPE-S44
EAN 0710931505061
€ 132,00 excl. BTW

Trendnet TPE-S44 netwerk-switch Unmanaged Power over Ethernet (PoE) Blauw

TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.

-Reduces equipment cost by delivering data and power over existing network cables.
-4 PoE and 4 standard 10/100Mbps ports.
-Flow Control for Full-Duplex mode.

-IEEE 802.3af Power over Ethernet (PoE) Standard Compliant.
-8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports.
-Built-in 4 PoE Ports (Port 1 ~ Port 4).
-Supports PoE Power Maximum 15.4 watts for each POE port.
-Supports PoE Powered Device (PD) classification identify.
-Full Wire-Speed Non-Blocking Reception and Transmission.
-Store and Forward Switching Method.
-96Kbytes RAM Data Buffer and 1K entries MAC Address Table.
-Extensive Diagnostic LED´s on the Front Panel.
-IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode.
-5-year limited warranty.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3af
Koperen ethernetbekabelingstechnologie
100Base-TX, 10Base-T
Full duplex
Ja
Auto MDI/MDI-X
Ja

Data-uitwisseling

Ondersteunde data-overdrachtsnelheden
10/100 Mbps
Max. overdrachtssnelheid
0,1 Gbit/s

Protocollen

Ondersteunde protocollen
CSMA/CD

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Blauw

Design

Certificering
FCC, CE

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Gewicht en omvang

Gewicht
430 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Afmetingen (B x D x H)
171 x 98 x 29 mm
Connectiviteitstechnologie
Bedraad
Stroomvoorziening
48V DC, 0.8A
Netwerkfuncties
Ethernet, Fast Ethernet
Connectivity LEDs
