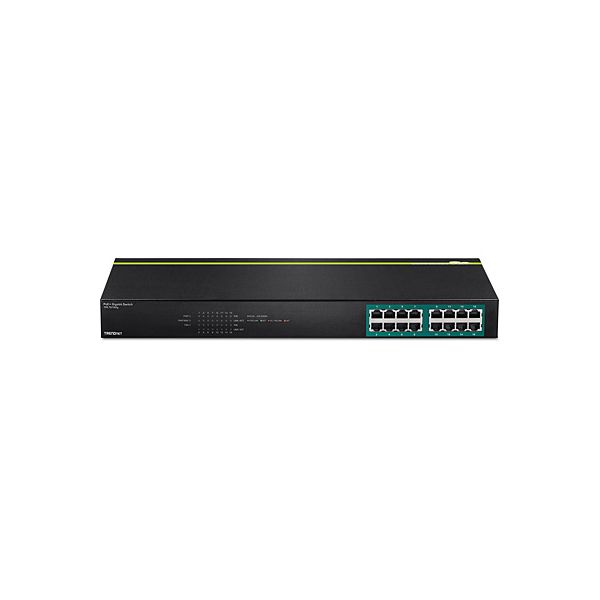

Trendnet TPE-TG160G netwerk-switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart
Trendnet TPE-TG160G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U
Nog 13 beschikbaar
Fabrikant
Trendnet
MPN
TPE-TG160G
EAN
0710931160277
€ 217,00
excl. BTW
€ 217,00
excl. BTW
excl. BTW
Trendnet TPE-TG160G netwerk-switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart
TRENDnet’s 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity, and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.
PoE Camera Flexibility
The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.
Full PoE Power
The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.
Gigabit Networking
All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.
PoE Camera Flexibility
The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.
Full PoE Power
The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.
Gigabit Networking
All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beheerfuncties
Switch type*
Unmanaged
Switch-laag
L2
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Ja
Datastroombeheer
Ja
Data-uitwisseling
Switchingcapaciteit*
32 Gbit/s
Throughput
23,8 Mpps
MAC-adrestabel*
8000 entries
Design
Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Design
LED-indicatoren
Ja
Certificering
CE
FCC
Prestatie
Buffergrootte
512 KB
Energie
Stroomverbruik (typisch)
36 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Totaal Power over Ethernet (PoE)-budget
246 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Gewicht en omvang
Breedte
440 mm
Diepte
210 mm
Hoogte
44 mm
Gewicht
3 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
