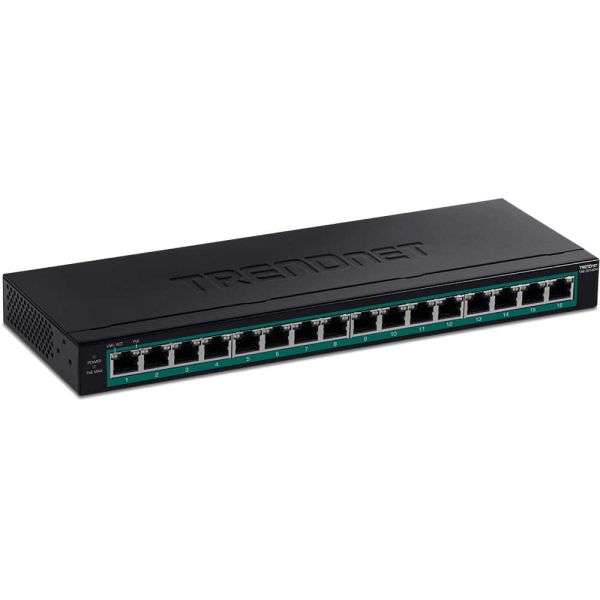

Trendnet TPE-TG160H netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Trendnet TPE-TG160H, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage, 1U

Nog slechts 8 beschikbaar

Fabrikant Trendnet
MPN TPE-TG160H
EAN 0710931161960
€ 140,00 excl. BTW

Trendnet TPE-TG160H netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

16-Port 10/100 Mbps PoE+ Switch

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. These fanless PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. Connect and network your PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to reliable TRENDnet's fanless PoE+ switches.
  • 16 x Gigabit PoE+ ports
  • 32Gbps switching capacity
  • 123W PoE power budget
  • IEEE 802.3af/at compliant
  • Fanless design eliminates operating noise
  • Reduces equipment cost by delivering data and power over existing network cables

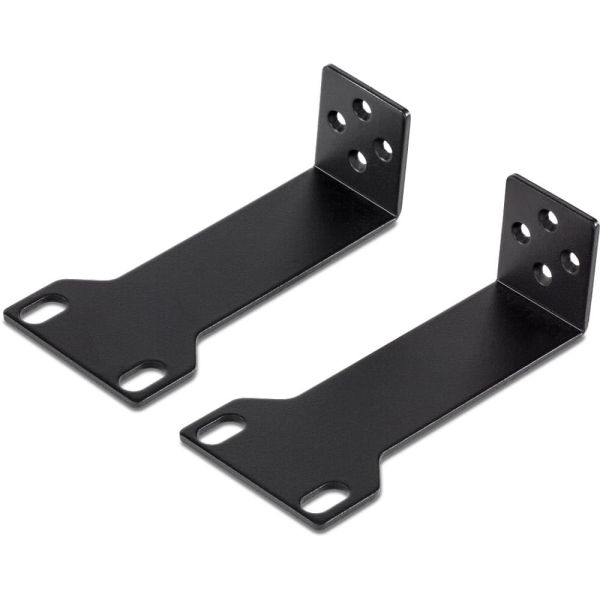

  • 1U 19” rack mountable with brackets included
  • External power supply

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
32 Gbit/s
Verzending snelheid
23,8 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Certificering
CE, FCC

Prestatie

Mean time between failures (MTBF)
988148 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
12,8 W
Stroomspanning bescherming
Overstroom, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Totaal Power over Ethernet (PoE)-budget
123 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
286 mm
Diepte
102 mm
Hoogte
27 mm
Gewicht
900 g

Verpakking

Snelstartgids
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
