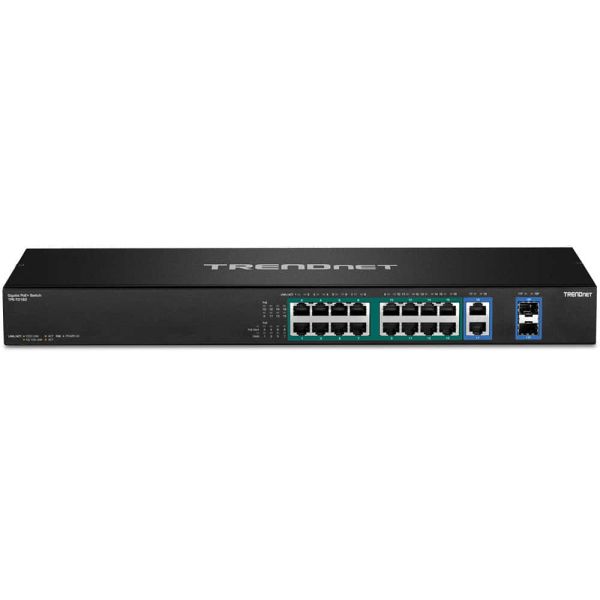

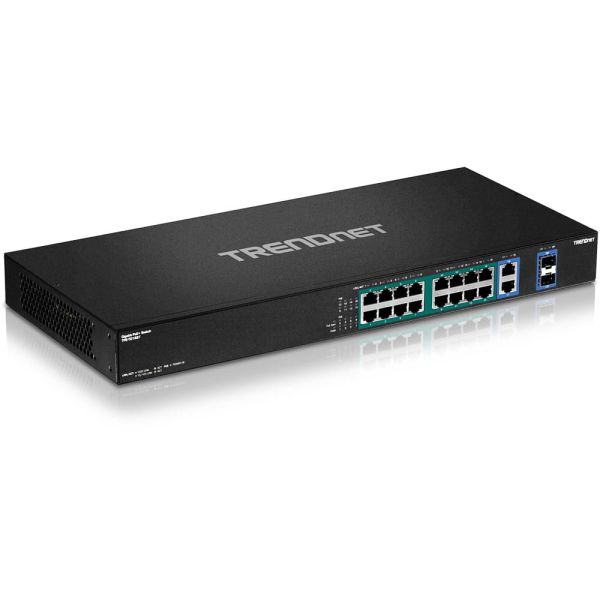

Trendnet TPE-TG182F v1.0R Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Trendnet TPE-TG182F v1.0R, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage, 1U

Nog slechts 6 beschikbaar

Fabrikant Trendnet
MPN TPE-TG182F
EAN 0710931161465
€ 322,00 excl. BTW

Trendnet TPE-TG182F v1.0R Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

TRENDnet’s 18-Port Gigabit High Power PoE+ Switch, model TPE-TG182F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This rack mountable ,high-power PoE switch provides 16 gigabit PoE+ ports with a total PoE power budget of 440W. It also features two additional shared RJ-45 or SFP gigabit ports. The TPE-TG182F high-power PoE switch supplies up to 30W of power per port for devices such as high-power wireless access points, PTZ (Pan/Tilt/Zoom) IP cameras, and VoIP phone systems.

High Power PoE
The 440W total PoE power budget on this high-power PoE switch supplies 16 Power over Ethernet devices with up to 30W per port.

Gigabit Ports
Eighteen gigabit ports provide a 36Gbps switching capacity to support edge network installations.

Housing Design
Sturdy 19” rack mountable metal housing with included mounting brackets.
  • 16 x Gigabit PoE+ ports
  • 2 x Shared Gigabit ports (RJ-45 or SFP)
  • 36Gbps switching capacity
  • Internal power supply
  • 440W PoE power budget
  • Reduces equipment cost by delivering data and power over existing network cables
  • Sturdy rack mountable metal housing

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16
Aantal Combo SFP-poorten
2

Netwerk

Netwerkstandaard*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
36 Gbit/s
Verzending snelheid
26,78 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja
Certificering
CE FCC ETL

Prestatie

Buffergrootte
512 KB

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
470 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Totaal Power over Ethernet (PoE)-budget
440 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C

Gewicht en omvang

Breedte
440 mm
Diepte
196 mm
Hoogte
44 mm
Gewicht
3,05 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja
