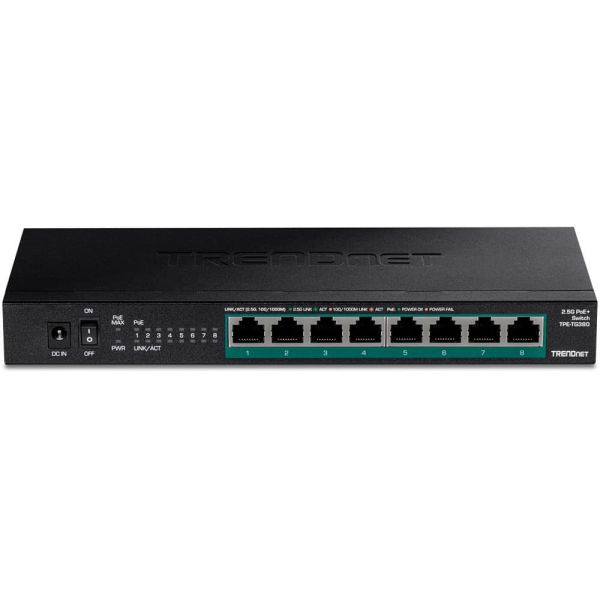

Trendnet TPE-TG380 netwerk-switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Zwart

Trendnet TPE-TG380, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Nog 15 beschikbaar

Fabrikant Trendnet
MPN TPE-TG380
EAN 0710931162141
€ 159,00 excl. BTW

Trendnet TPE-TG380 netwerk-switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Zwart

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 2.5G PoE+ Switches. These 2.5G PoE+ switches are equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G PoE+ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G PoE+ switches are cost-effective solutions to increase your network’s throughput. A 100W total PoE power budget on this multi-gig PoE+ switch supplies up to eight PoE+ devices with up to 30W per port.

2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Wall Mountable
The 2.5G PoE+ switches feature a metal housing with a convenient wall mountable design for greater installation flexibility.

PoE+
A 100W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.

Easy Installation
No configuration needed, simply connect network devices to the 2.5G multi-gig PoE+ switch

Fanless
Fanless design lowers energy consumption and eliminates operating noise

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance

LED Indicators
LED indicators on the 2.5G PoE+ switch convey port status














  • Fanless design eliminates noise
  • Wall mountable for installation flexibility

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
2.5G Ethernet (100/1000/2500)
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Ondersteundende kabel types
Cat5e
Full duplex
Ja
Half-duplex
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500 Mbit/s

Data-uitwisseling

Switchingcapaciteit*
40 Gbit/s
MAC-adrestabel*
16000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
12000
Packet buffergeheugen
1,5 MB

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom
Ophangsysteem voor aan de muur
Ja
Certificering
CE, FCC

Prestatie

Fanloos
Ja

Prestatie

MTBF (PoE)
1121502 uur

Energie

Stroombron*
AC/DC
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
12 W
Lengte stroomkabel
1,5 m
Stroomspanning bescherming
Overstroom, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
100 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
240 mm
Diepte
103 mm
Hoogte
26 mm
Gewicht
900 g

Verpakking

Meegeleverde kabels
DC
Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
