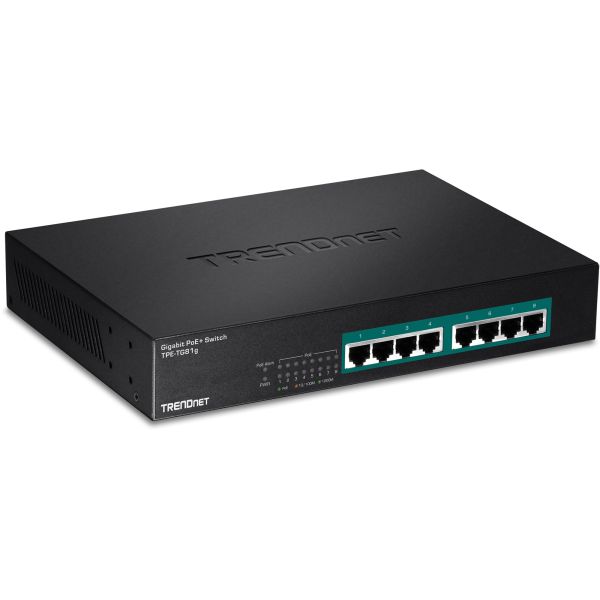

Trendnet TPE-TG81g Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Trendnet TPE-TG81g, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Niet op voorraad

Fabrikant Trendnet
MPN TPE-TG81G
EAN 0710931160055
€ 116,00 excl. BTW

Trendnet TPE-TG81g Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

TRENDnet’s 8-Port Gigabit GREENnet PoE+ Switch, model TPE-TG81g, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers eight Gigabit PoE+ ports which supply up to 30W of power per port for devices such as high power wireless access points, IP Cameras, and VoIP telephony systems. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 110W PoE budget. This rack mountable switch features a fanless design that eliminates operating noise and lowers energy consumption.
  • 8 x Gigabit PoE+ ports
  • Internal power supply
  • Up to 30W per port with 110W total power budget
  • Reduces equipment cost by delivering data and power over existing network cables
  • Fanless design for silent operation
  • 16Gbps switching capacity
  • Sturdy rack mountable metal housing
  • Use with TRENDnet's PoE splitter to network and power non-PoE devices

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
8

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
4000 entries
Jumbo Frames ondersteuning
Ja

Design

Rack-montage*
Ja
Kleur van het product
Zwart
LED-indicatoren
Ja
Certificering
CE, FCC, UL

Energie

Vermogenstoevoer inclusief*
Ja
Aantal voedingen
1

Energie

AC-ingangsspanning
110 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
130 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-20 - 90 °C

Gewicht en omvang

Breedte
265 mm
Diepte
183 mm
Hoogte
44 mm
Gewicht
1,54 kg

Verpakking

Meegeleverde kabels
AC

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
