Trendnet TPE-TG82G netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Trendnet TPE-TG82G, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Ruim op voorraad

Fabrikant Trendnet
MPN TPE-TG82G
EAN 0710931161083
€ 69,00 excl. BTW

Trendnet TPE-TG82G netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

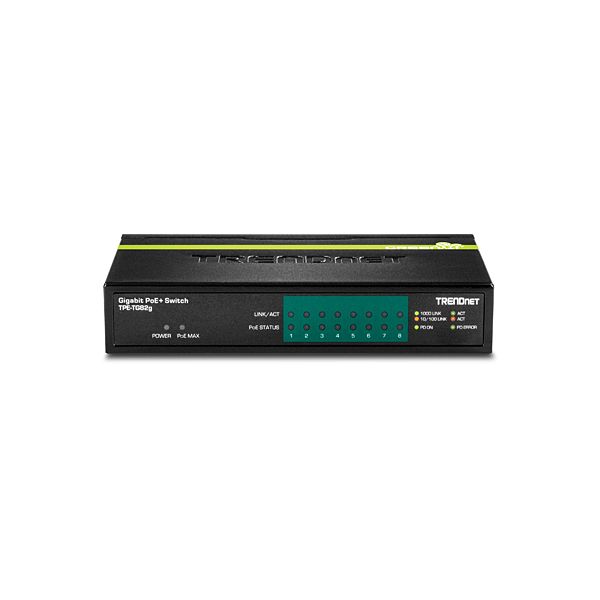

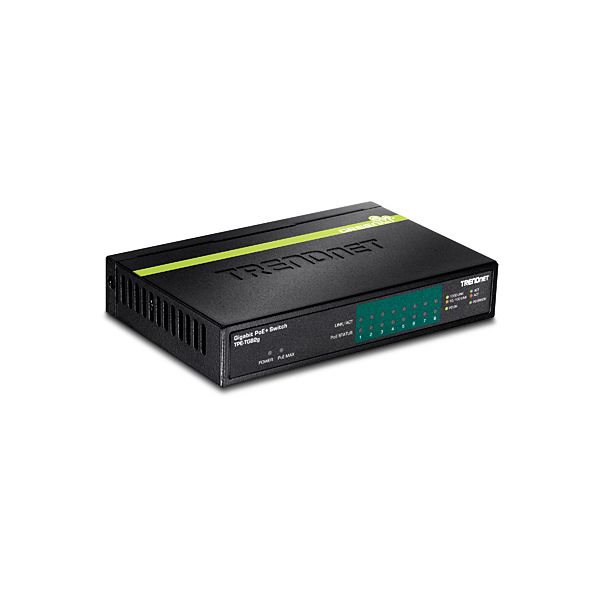

The 8-Port Gigabit PoE+ Switch, model TPE-TG82g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE and PoE+ devices with a 61W PoE budget. Plug and Play this sturdy metal switch for reliable high-speed PoE networking.

PoE Power
A 61W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit Ethernet
Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.

Compact Design
With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Virtuele kabeltest (VCT)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
VLAN Identifier ( VLAN ID), Voice VLAN

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
Throughput
11,9 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Beveiliging

DHCP-functies
DHCP snooping

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Certificering
CE, FCC

Prestatie

Buffergrootte
128 KB
Maximale overdrachtssnelheid van gegevens
2000 Mbit/s

Prestatie

Plug and play
Ja

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Spanning
54 V
Output current
1,67 A
Vermogensverbruik (max)
36 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
61 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
150 mm
Diepte
95 mm
Hoogte
30 mm
Gewicht
400 g

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja

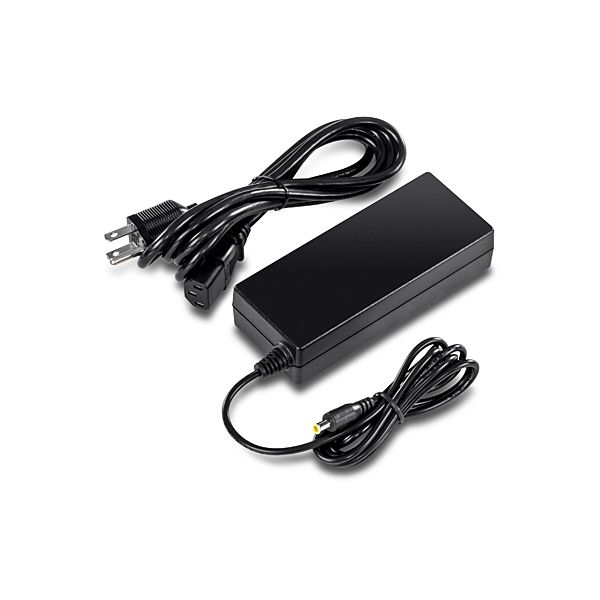

Inclusief AC-adapter
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
