Trendnet TPE-TG83, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Nog 10 beschikbaar

Fabrikant Trendnet
MPN TPE-TG83
EAN 0710931162233

Trendnet TPE-TG83 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

PoE+
A 65W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit Ports
Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.

Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations

Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance

Fanless
Fanless design is ideal for quiet environments that require silent operation




  • Compact fanless design
  • Wall-mountable metal housing

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Ondersteundende kabel types
Cat5e
Full duplex
Ja
Half-duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
Verzending snelheid
11,9 Mpps
MAC-adrestabel*
4000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,192 MB

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom
Ophangsysteem voor aan de muur
Ja
Certificering
CE, FCC, LVD

Prestatie

Fanloos
Ja

Energie

Stroombron*
AC/DC
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
2.5 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
65 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
240 mm
Diepte
105 mm
Hoogte
27 mm
Gewicht
580 g

Verpakking

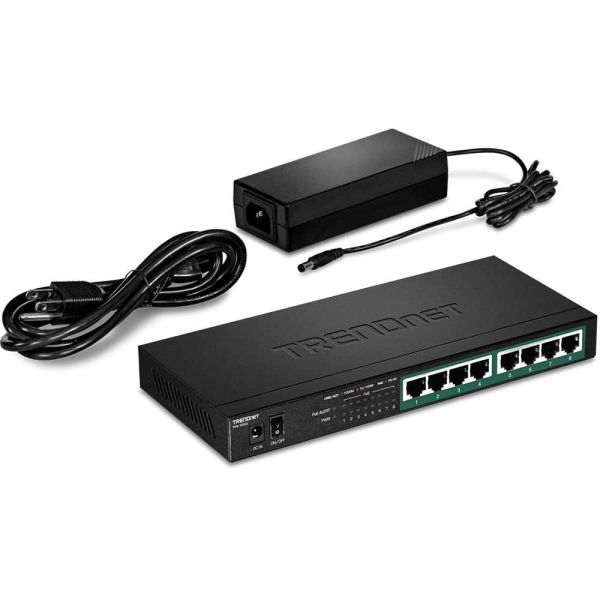

Meegeleverde kabels
DC
Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
