Ubiquiti AP-5AC-90-HD antenne Sector-antenne RP-SMA 22 dBi

Ubiquiti AP-5AC-90-HD, 22 dBi, 5.15 - 5.85 GHz, 30°, 30°, Sector-antenne, RP-SMA

Nog 1 beschikbaar (bel voor reservering)

Fabrikant Ubiquiti
MPN AP-5AC-90-HD
EAN 0810354021947
€ 403,00 excl. BTW

Ubiquiti AP-5AC-90-HD antenne Sector-antenne RP-SMA 22 dBi

5 GHz, 3x30° HD Sector Antenna
The innovative airPrism® Antenna features significant advances in noise isolation and beam performance for co‑location deployments in a multipoint network.

3 x 30° Beamwidth Coverage

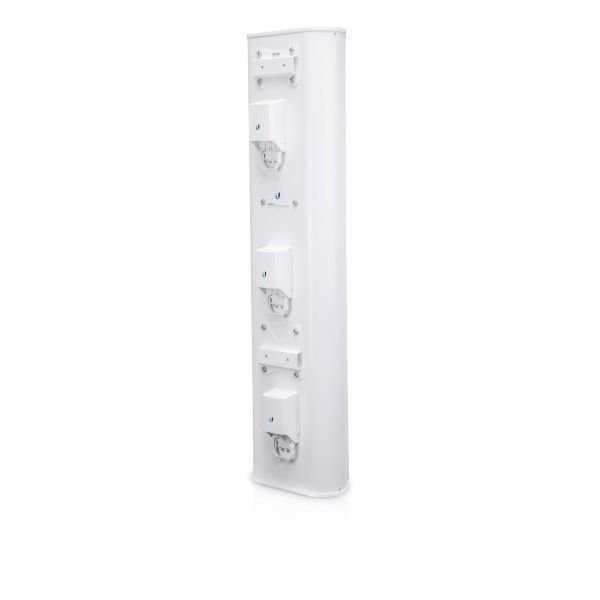

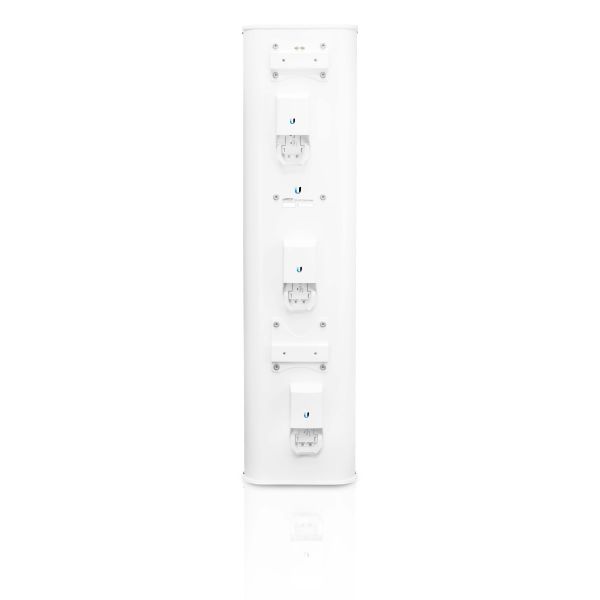

The three Rocket5ac Prism™ radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth.

Powerful Performance
Highly resistant to noise interference, the airPrism antenna provides superior beam performance in
high-density areas for high-capacity, multipoint networks.

Breakthrough Design
Mounted on a single airPrism antenna, three Rocket5ac Prism radios maximize throughput in an efficient
tower footprint, minimizing installation and tower costs.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Frequentieband*
5.15 - 5.85 GHz
H-plane (3 dB straalbreedte)
30°
E-plane (3 dB straalbreedte)
30°
Antenne versterkingsniveau (max)*
22 dBi

Kenmerken

Soort antenne*
Sector-antenne
Aansluiting antenne*
RP-SMA
Polarisatie
Dubbele polarisatie
Voltage Standing Wave Ratio (VSWR)
1,75:1
Doorstaat windsnelheid
200 km/h
Bedoeld voor
Buiten
Isolatie
30 dB

Kenmerken

Kleur van het product
Wit
Certificering
CE, FCC, IC

Gewicht en omvang

Breedte
322,6 mm
Diepte
201,5 mm
Hoogte
1300 mm
Gewicht
13,1 kg

Inhoud van de verpakking

Aantal per verpakking
1 stuk(s)

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85177100
