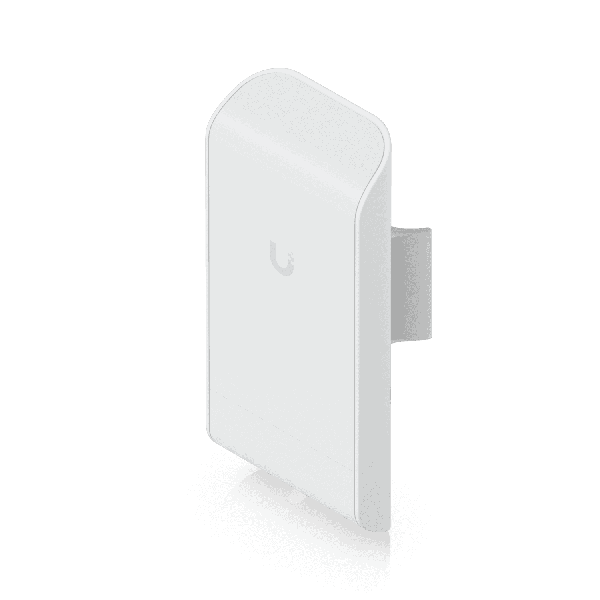

Ubiquiti LocoM5, Netwerkbrug, 150 Mbit/s, Wifi, Ethernet LAN, Wit

Ruim op voorraad

Fabrikant Ubiquiti
MPN LOCOM5
EAN 0810354022340

Ubiquiti LocoM5 Netwerkbrug 150 Mbit/s Wit

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.

airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.

Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.

World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Data-uitwisseling

Maximale overdrachtssnelheid van gegevens*
150 Mbit/s

Antenne

Antenne-ontwerp
Intern
Antenne versterkingsniveau (max)
13 dBi

Draadloos LAN

Wifi
Ja
Wifi-band
Single-band (5 GHz)
Frequentieband
5.17 - 5.875 GHz

Netwerk

Ethernet LAN
Ja
Interfacetype Ethernet LAN
Fast Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3u
Bekabelingstechnologie
10/100Base-T(X)

Poorten & interfaces

Connectiviteitstechnologie
Bedraad en draadloos
Aantal Ethernet LAN (RJ-45)-poorten
1

Kenmerken

Type product*
Netwerkbrug
Materiaal
Kunststof
Montagewijze
Paal
Kleur van het product
Wit

Energie

Vermogensverbruik (max)
5,5 W

Energie

Power over Ethernet (PoE)
Ja
Stroom via Ethernet (PoE)
24 V

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-30 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Certificaten

Certificering
FCC, IC, CE, RoHS

Gewicht en omvang

Breedte
80 mm
Diepte
31 mm
Hoogte
161 mm
Gewicht
180 g

Processor

Processorfamilie
Atheros
Processormodel
MIPS 74Kc
Frequentie van processor
560 MHz

Geheugen

Flash memory
8 MB
RAM-capaciteit
64 MB
RAM-type
DDR2

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
