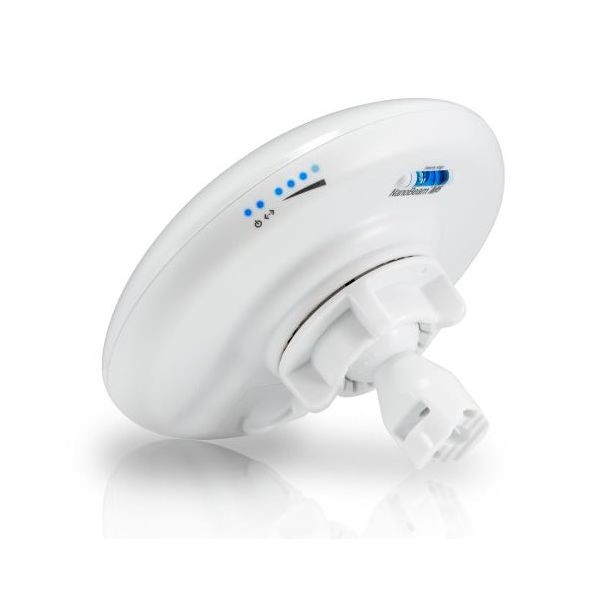

Ubiquiti NanoBeam M5 antenne 16 dBi
Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.
Plug and Play Installation
The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation
The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Prestatie
Frequentieband*
5 GHz
Antenne versterkingsniveau (max)*
16 dBi
Kenmerken
Polarisatie
Dubbele polarisatie
Montage
Muur
Kleur van het product
Wit
Certificering
FCC, IC, CE
Energie
Stroomvoorziening
24V
Stroomverbruik
500 mA
Technische details
Duurzaamheidscertificaten
RoHS
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Gewicht en omvang
Breedte
140 mm
Diepte
140 mm
Hoogte
54 mm
Gewicht
320 g
Inhoud van de verpakking
Aantal per verpakking
1 stuk(s)
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85177100
