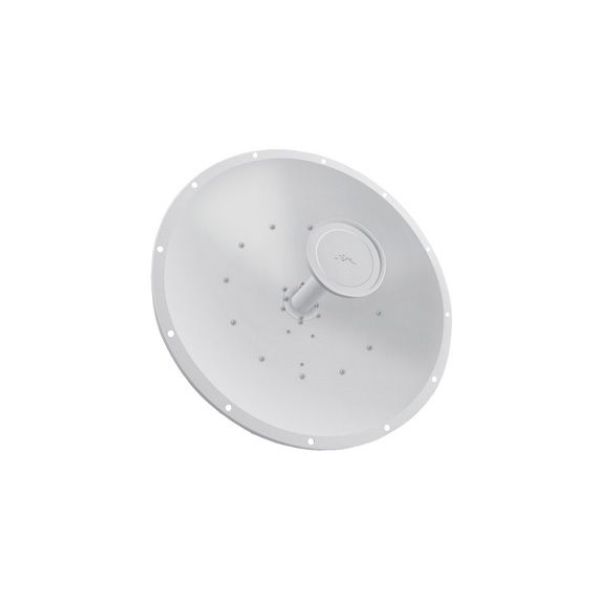

Ubiquiti RD-5G30 antenne Sector-antenne 30 dBi
New Technology OMT Design
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.
Rocket M Seamlessly Integrates with Rocket Dish Antenna
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.
Rocket M Seamlessly Integrates with Rocket Dish Antenna
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Prestatie
Frequentieband*
5.1 - 5.9 GHz
H-plane (3 dB straalbreedte)
5°
E-plane (3 dB straalbreedte)
5°
Verticale balk wijdte (2.4 GHz)
2°
Antenne versterkingsniveau (max)*
30 dBi
Kenmerken
Soort antenne*
Sector-antenne
Polarisatie
Dubbele polarisatie
Voltage Standing Wave Ratio (VSWR)
1,4:1
Montage
Muur
Bedoeld voor
Buiten
Kleur van het product
Wit
Kenmerken
Certificering
EN 302 326 DN2
Gewicht en omvang
Breedte
650 mm
Diepte
650 mm
Hoogte
304 mm
Gewicht
9,8 kg
Inhoud van de verpakking
Aantal per verpakking
1 stuk(s)
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85177100
