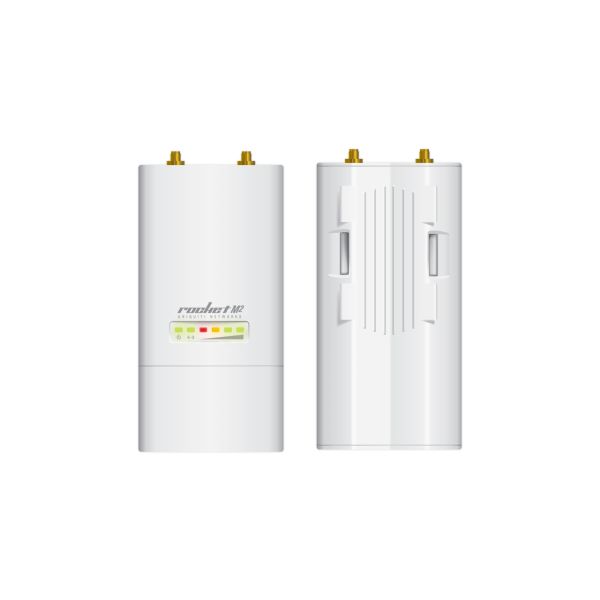

Ubiquiti Rocket M2 150 Mbit/s Wit Power over Ethernet (PoE)

Ubiquiti Rocket M2, 150 Mbit/s, 150 Mbit/s, 10,100 Mbit/s, 2.412 - 2.462 GHz, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, 50000 m

Niet op voorraad

Fabrikant Ubiquiti
MPN ROCKETM2
EAN 0810354022753
€ 137,00 excl. BTW

Ubiquiti Rocket M2 150 Mbit/s Wit Power over Ethernet (PoE)

Ubiquiti Rocket M2, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP AirMax base-station applications.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
150 Mbit/s
Draadloos LAN data-overdrachtsnelheid (max)
150 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Frequentieband
2.412 - 2.462 GHz
Netwerkstandaard
IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Maximum outdoorbereik
50000 m

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja
AC-ingangsspanning
24 V
Stroom
1 A
Uitgangsvermogen
28dBm
Stroomverbruik (typisch)
6,5 W

Design

Kleur van het product*
Wit
LED-indicatoren
Ja
Certificering
FCC Part 15.247, IC RS210, CE RoHS
Intern
Nee

Antenne

Soort antenne*
Extern

Antenne

Antennefuncties
Afneembare antenne
Antennas quantity
2
Aansluiting antenne
RP-SMA

Prestatie

Type processor
Ja
Processormodel
Qualcomm Atheros
Frequentie van processor
400 MHz
Processor architectuur
MIPS 24Kc
Flash memory
8 MB
Intern geheugen
64 MB

Gewicht en omvang

Breedte
80 mm
Diepte
30 mm
Hoogte
170 mm
Gewicht
500 g

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Bedrijfstemperatuur (T-T)
-30 - 75 °C

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
