Ubiquiti Dream Wall gateway/controller 1000, 10000 Mbit/s

Ubiquiti Dream Wall, Wit, Metaal, Wandmontage, Stroom, Ja, CE, FCC, IC, Intern

Ruim op voorraad

Fabrikant Ubiquiti
MPN UDW
EAN 0810010079572
€ 948,00 excl. BTW

Ubiquiti Dream Wall gateway/controller 1000, 10000 Mbit/s

All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports.
  • Integrated Enterprise WiFi6 (4x4 MIMO)
  • Full UniFi OS and UniFi application support
  • 3.5+ Gbps routing
  • (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
  • (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
  • 4.7" touchscreen for management
  • Integrated 128 GB SSD & pre-installed 512 GB microSD card

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Kleur van het product*
Wit
Behuizingsmateriaal
Metaal
Montagewijze
Wandmontage
LED-indicatoren
Stroom, Ja
Certificering
CE, FCC, IC

Kenmerken

Soort antenne
Intern
Antenne versterkingsniveau (max)
6 dBi
Geïntegreerde geheugenkaartlezer
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash), MicroSDHC, MicroSDXC

Prestatie

Besturings -en afbeeldingseenheid*
Ja
Type beeldscherm
LCD
Type processor
Ja
Processorfabrikant
ARM
Frequentie van processor
1,7 MHz
Aantal geïnstalleerde processoren
1
Intern geheugen
4000 MB
Intern geheugentype
DDR4
SSD capaciteit
128 GB
Flash memory
16 MB

Netwerk

Ethernet LAN, data-overdrachtsnelheden
1000,10000 Mbit/s
Netwerkstandaard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g
Wifi
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen
WEP, WPA, WPA-PSK, WPA2, WPA3
VLAN=ondersteuning
Ja

Poorten & interfaces

WAN-poort
Ethernet (RJ-45), SFP

Beheerfuncties

Quality of Service (QoS)
Ja
Reset button
Ja

Energie

Vermogensverbruik (max)
532 W
Ingangsspanning
100 - 240 V
Frequentie
50/60 Hz
Stroom
7 A
Netvoeding
550 W
Power over Ethernet (PoE)
Ja

Gewicht en omvang

Breedte
549 mm
Diepte
62 mm
Hoogte
342 mm
Gewicht
8,6 kg

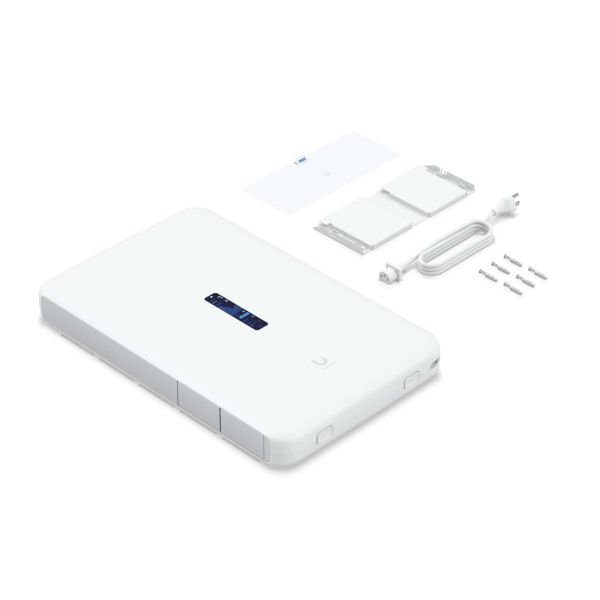

Inhoud van de verpakking

Meegeleverde kabels
AC

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
