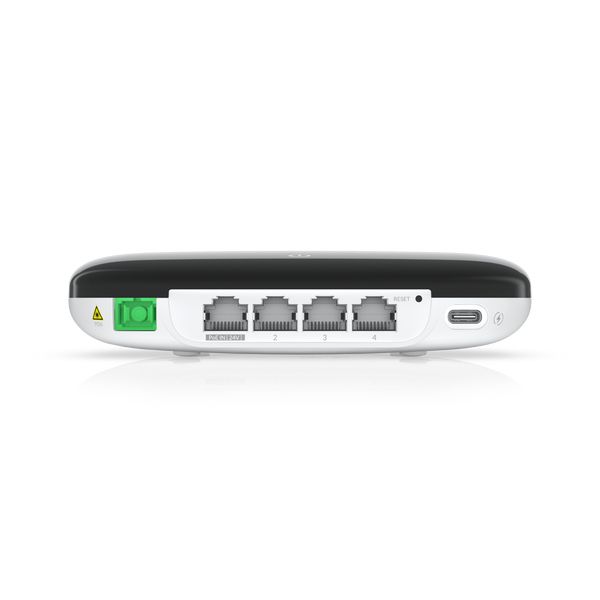

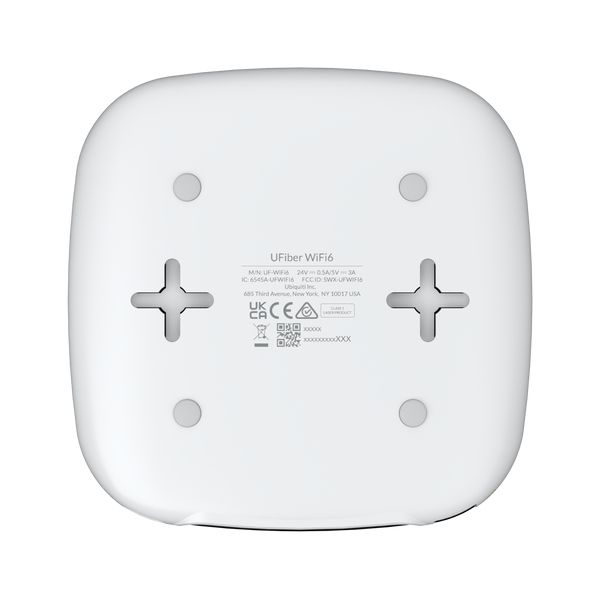

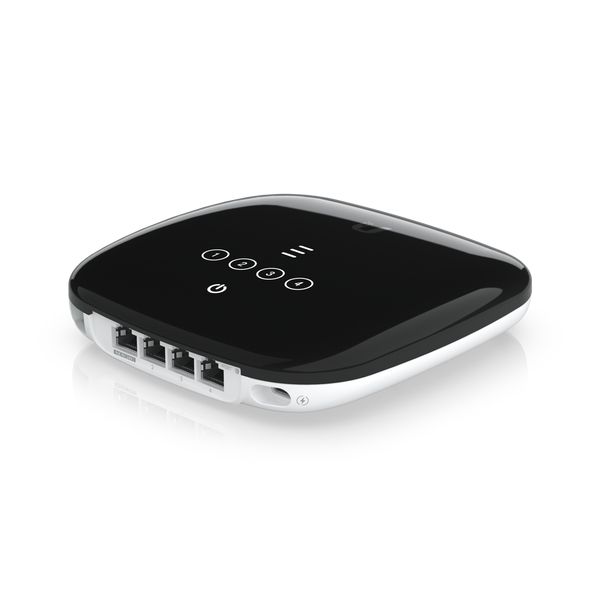

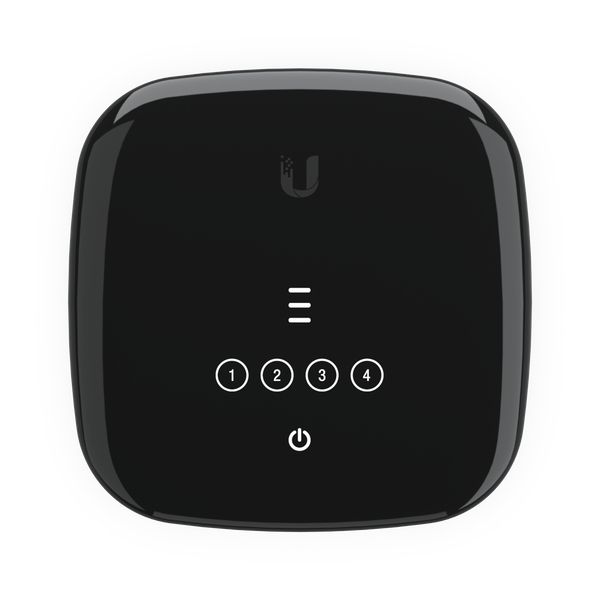

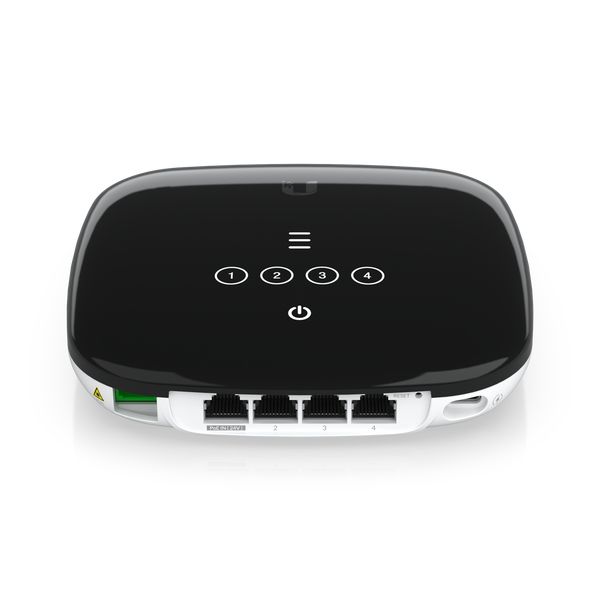

Ubiquiti UFiber WiFi6 GPON CPE Optical network unit (ONU)

Ubiquiti UFiber WiFi6 GPON CPE, Optical network unit (ONU), Zwart, LAN, Stroom, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, G.984, 1000 Mbit/s

Ruim op voorraad

Fabrikant Ubiquiti
MPN UF-WIFI6
EAN 0810010078384
€ 159,00 excl. BTW

Ubiquiti UFiber WiFi6 GPON CPE Optical network unit (ONU)

High-performance WiFi 6 GPON CPE.
The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.
  • 2x2, high-efficiency WiFi 6
  • 2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate
  • 5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate
  • 2.4 Gbps max downstream line rate
  • 1.2 Gbps max upstream line rate
  • Establishes GPON links up to 20 km
  • Powerful Layer 2/3 management features
  • (1) GPON WAN port
  • (4) GbE RJ45 LAN ports
  • Powered with the included power adapter or passive PoE
  • Internal WiFi 6 (802.11ax) antennas

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Type product*
Optical network unit (ONU)
Kleur van het product
Zwart
LED-indicatoren
LAN, Stroom

Netwerk

Netwerkstandaard*
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
ITU-standaarden
G.984
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Bekabelingstechnologie
10/100/1000Base-T(X)
Switch-laag
L2+/L3
Upstream data snelheid
2488 Mbit/s
Downstream data snelheid
1244 Mbit/s
Transmissie afstand (max)
20 km
Tx-golflengte (max)
1310 nm
Rx-golflengte (max)
1490 nm
VLAN=ondersteuning
Ja

Draadloos LAN

Wifi*
Ja
Wi-Fi-standaarden
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Soort antenne
Intern
Antenne versterkingsniveau (max)
3 dBi

Beheerfuncties

Reset button
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen
AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3

Poorten & interfaces

Fibre channel-poorten*
1
Vezel-optische connector*
SC
Aantal Ethernet LAN (RJ-45)-poorten*
4
Aantal USB-aansluitingen
1
Aansluiting voor netstroomadapter
Ja

Energie

Spanning
5 V
Output current
3 A
Vermogensverbruik (max)
11 W

Technische details

Duurzaamheidscertificaten
CE

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-15 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Gewicht en omvang

Breedte
141,5 mm
Diepte
140,8 mm
Hoogte
31,6 mm
Gewicht
415 g

Inhoud van de verpakking

Aantal
1
Inclusief AC-adapter
Ja
