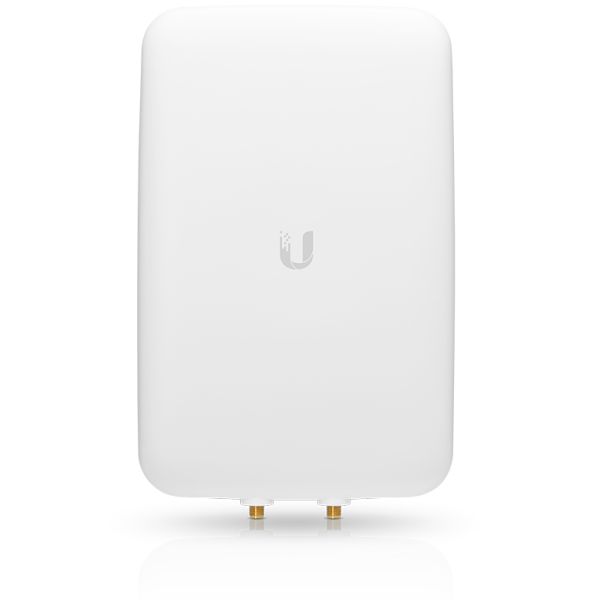

Ubiquiti UMA-D antenne Richtantenne RP-SMA 15 dBi
The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.
Antenna Features
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure
Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

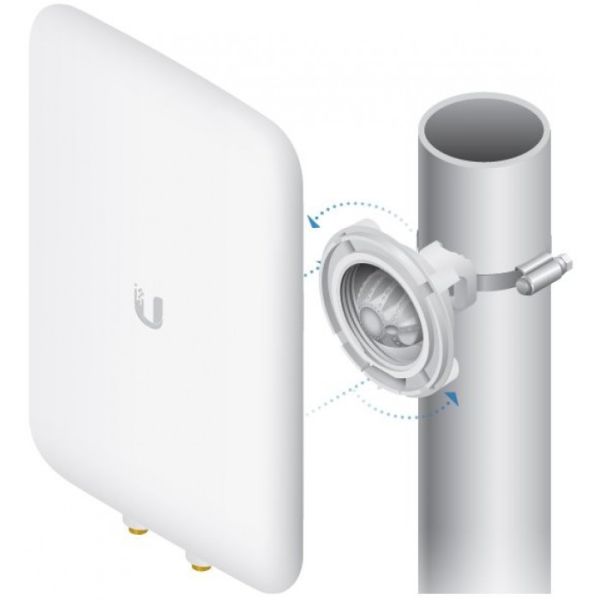

Versatile Mounting
The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
Antenna Features
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure
Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
Versatile Mounting
The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Prestatie
Frequentieband*
2.4 - 2.5, 5.1 - 5.9 GHz
Netwerkstandaard
IEEE 802.11ac
Antenne versterking (2.4 GHz)
10 dBi
Antenna versterking (5 GHz)
15 dBi
Horizontale balk wijdte (2.4 GHz)
90°
Verticale balk wijdte (2.4 GHz)
90°
Horizontale balk wijdte (5 GHz)
45°
Verticale balk wijdte (5 GHz)
45°
Antenne versterkingsniveau (max)*
15 dBi
Kenmerken
Soort antenne*
Richtantenne
Aansluiting antenne*
RP-SMA
Polarisatie
Dubbele polarisatie
Voltage Standing Wave Ratio (VSWR)
2:1
Montage
Wand/paal
Kenmerken
Bedoeld voor
Binnen & buiten
Compatibele producten
UAP-AC-M
Materiaal behuizing
Kunststof
Kleur van het product
Wit
Gewicht en omvang
Breedte
128 mm
Diepte
32,5 mm
Hoogte
201,3 mm
Gewicht
480 g
Inhoud van de verpakking
Aantal per verpakking
1 stuk(s)
Montage gereedschap
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85177100
