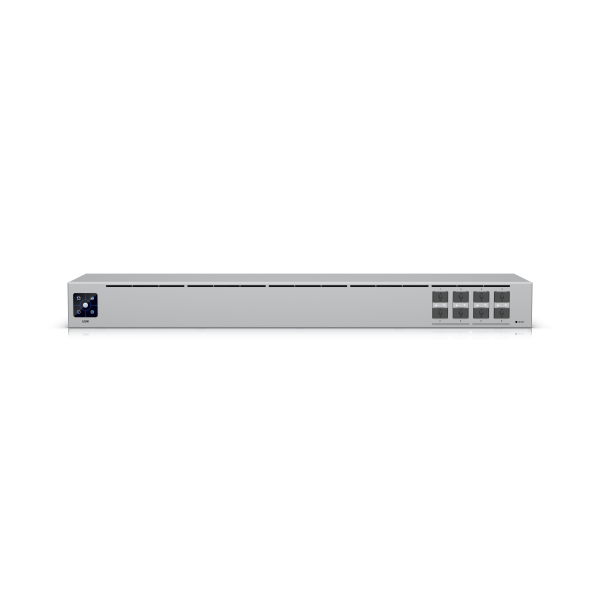

Ubiquiti USW-AGGREGATION netwerk-switch Managed L2 Geen 1U Zilver

Ubiquiti USW-AGGREGATION, Managed, L2, Geen, Rack-montage, 1U

Ruim op voorraad

Fabrikant Ubiquiti
MPN USW-AGGREGATION
EAN 0810010074331
€ 427,00 excl. BTW

Ubiquiti USW-AGGREGATION netwerk-switch Managed L2 Geen 1U Zilver

Managed layer 2 aggregation switch sporting (8) 10G SFP+ ports for high capacity link aggregation.

The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
  • (8) 10G SFP+ Ports
  • 160 Gbps switching capacity
  • 1.3" Touchscreen with AR switch management
  • Fanless, 4.7" depth compact enclosure
  • 1U Rackmountable (kit included)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2

Poorten & interfaces

Type basis-switching RJ-45 Ethernet-poorten*
Geen
Aantal moduleslots SPF+
8

Netwerk

10G support*
Ja

Data-uitwisseling

Switchingcapaciteit*
160 Gbit/s
Doorvoercapaciteit
80 Gbit/s
Verzending snelheid
119,04 Mpps

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zilver
Materiaal behuizing
Gegalvaniseerd staal
LED-indicatoren
Systeem
Certificering
CE, FCC, IC

Prestatie

Fanloos
Ja

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
30 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Gewicht en omvang

Breedte
442,4 mm
Diepte
120 mm
Hoogte
43,7 mm
Gewicht
2,65 kg

Verpakking

Meegeleverde kabels
AC
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
