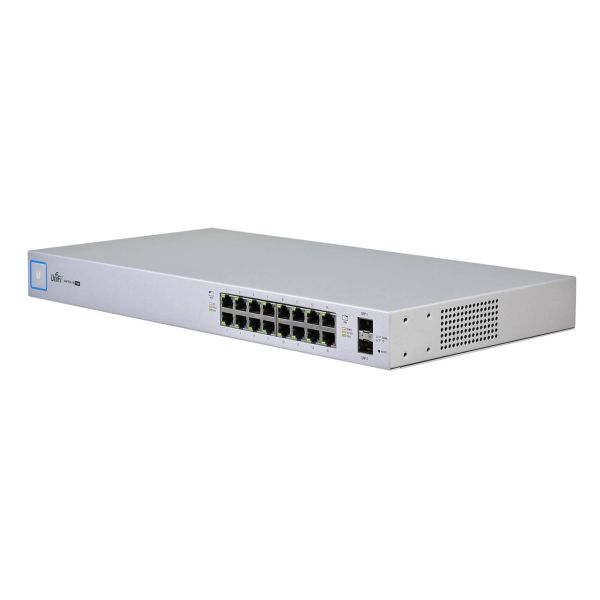

Ubiquiti UniFi US-16-150W netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Wit

Ubiquiti UniFi US-16-150W, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U, Ophangsysteem voor aan de muur

Ruim op voorraad (levering verwacht binnen 3 dagen)

Fabrikant Ubiquiti
MPN USW-LITE-16-POE
EAN 0810354023231
€ 294,00 excl. BTW

Ubiquiti UniFi US-16-150W netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Wit

Managed PoE+ Gigabit Switch with SFP
The UniFi® Switch delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.

Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.

Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

Integration with UniFi Controller
The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.

Advanced Enterprise Switching
The UniFi Switch supports VLAN tagging, port isolation, storm control, and guest control.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.3af, IEEE 802.3at
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
Auto-sensing
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
36 Gbit/s
Throughput
26,78 Mpps
Jumbo Frames ondersteuning
Ja

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Wit
Reset button
Ja
LED-indicatoren
Activiteit, Data, Link, Power over Ethernet (PoE), Snelheid
Verbeterd kabelbeheer
Ja
Ophangsysteem voor aan de muur
Ja
Certificering
CE, FCC, IC

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
28 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Voltagebereik Power over Ethernet (PoE)
20 - 27 V
Vermogen per poort Power over Ethernet (PoE)
34,2 W
Totaal Power over Ethernet (PoE)-budget
150 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
443 mm
Diepte
221 mm
Hoogte
43 mm
Gewicht
2,89 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Wand montagekit
Ja
Montagebeugels meegeleverd
Ja
Rekbevestigingspakket
Ja
Inclusief schroeven
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
