Ubiquiti UISP Wave Access Point 5400 Mbit/s Wit Power over Ethernet (PoE)

Ubiquiti UISP Wave Access Point, 5400 Mbit/s, 100,1000,2500,10000 Mbit/s, 2700 Mbit/s, 57 - 71 GHz, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK, AES, WPA2-PSK

Ruim op voorraad

Fabrikant Ubiquiti
MPN WAVE-AP
EAN 0810010078742
€ 590,00 excl. BTW

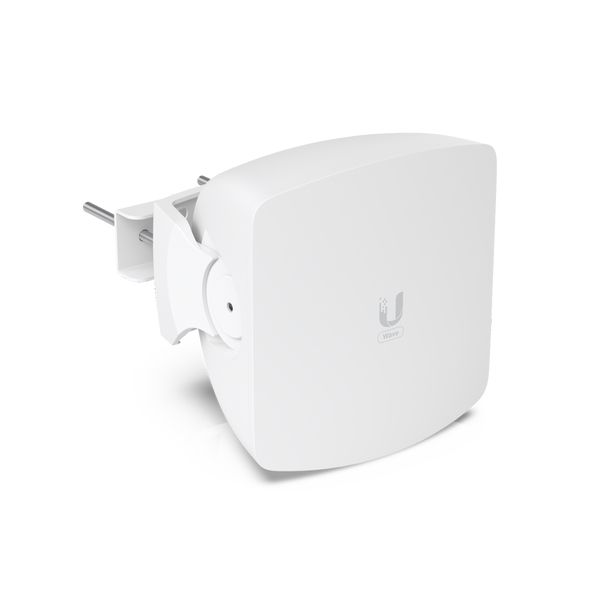

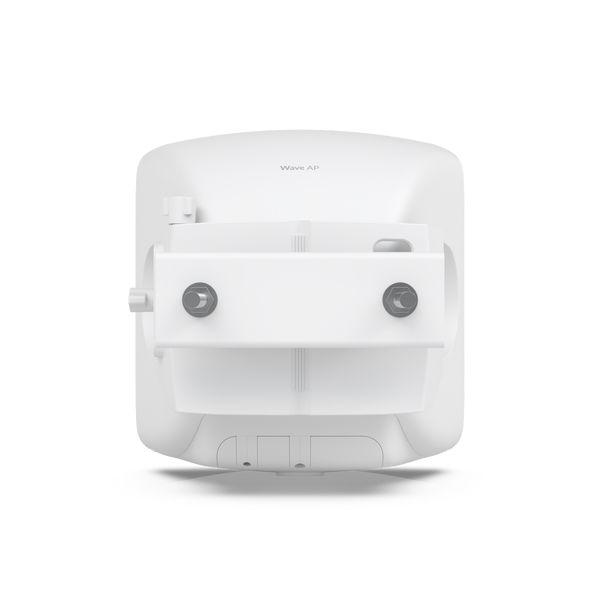

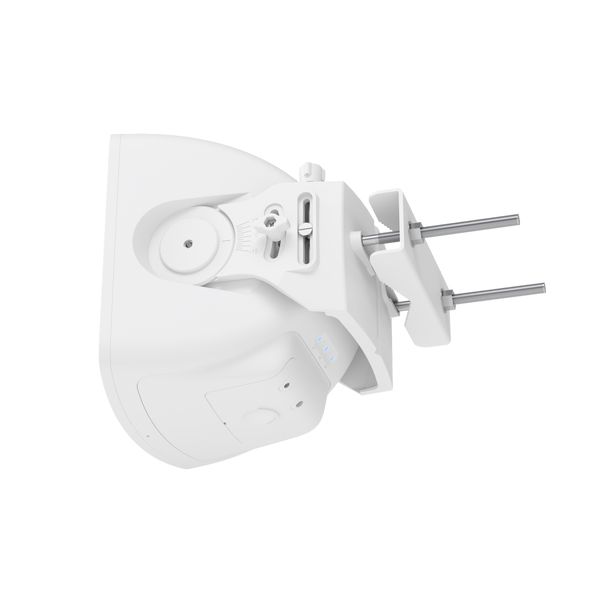

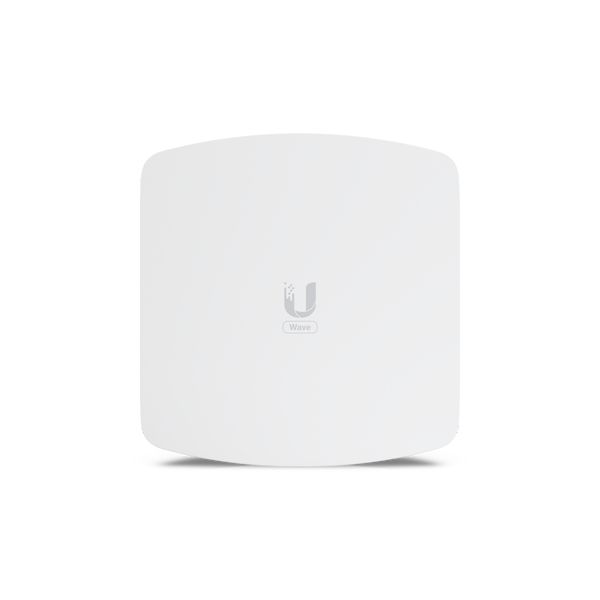

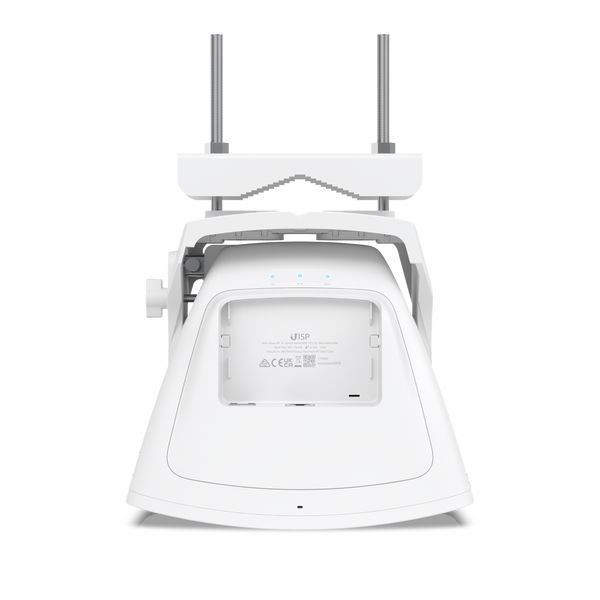

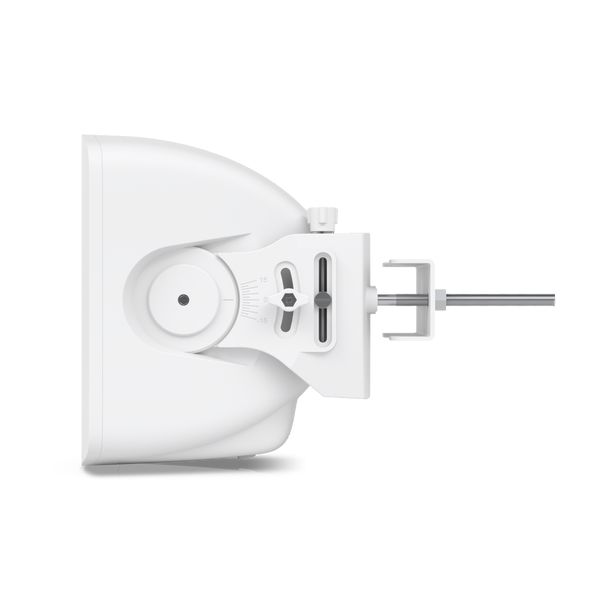

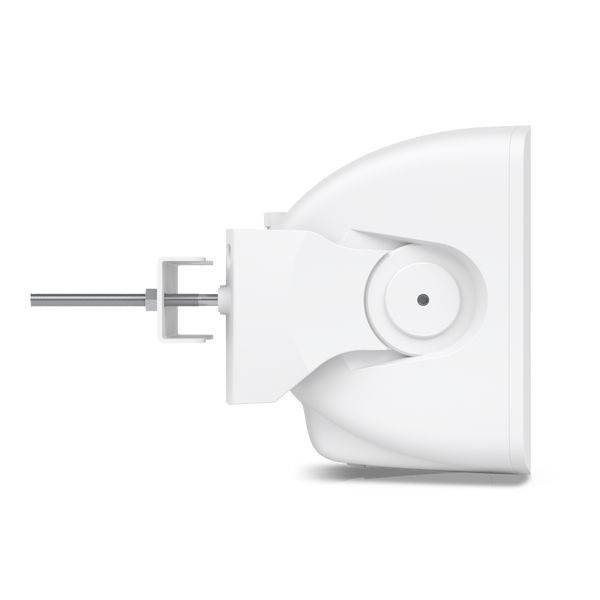

Ubiquiti UISP Wave Access Point 5400 Mbit/s Wit Power over Ethernet (PoE)

60 GHz PtMP access point powered by Wave Technology.

The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
  • 5 GHz backup radio
  • Supported stations and distances:
  • – Wave Long-Range: up to 8 km
  • – Wave Nano: up to 5 km
  • WAN Ports: (1) 10G SFP+, (1) 2.5GbE
  • Integrated GPS antenna

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Nee
5 GHz*
Ja
6 GHz*
Nee
Maximale overdrachtssnelheid van gegevens*
5400 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
100,1000,2500,10000 Mbit/s
Gegevensdoorvoersnelheid
2700 Mbit/s
Frequentieband
57 - 71 GHz
Full duplex
Ja
Modulatie
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK

Beveiliging

Ondersteunde beveiligingsalgoritmen*
AES, WPA2-PSK

Protocollen

Beheerprotocollen
SNMP

Beheerfuncties

Web-gebaseerd management
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1
WAN-poort
Ethernet (RJ-45)

Energie

Power over Ethernet (PoE)*
Ja
Type Power over Ethernet (PoE) ondersteunt
Passive PoE
DC voltage bereik
48 V
Output current
0,65 A
Vermogensverbruik (max)
24 W

Design

Plaatsing*
Muur
Kleur van het product*
Wit
Materiaal behuizing
Aluminium, Polycarbonaat (PC)
Internationale veiligheidscode (IP)
IPX6

Design

Reset button
Ja
LED-indicatoren
Ja
Certificering
FCC, IC

Antenne

Soort antenne*
Intern
Antenne versterkingsniveau (max)
24 dBi
Polarisatie
Verticale polarisatie

Prestatie

Type processor
Ja
Frequentie van processor
1400 MHz
Intern geheugen
512 MB
Inclusief besturingssysteem
AirOS

Gewicht en omvang

Breedte
212 mm
Diepte
187 mm
Hoogte
205 mm
Gewicht
2,3 kg

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Inclusief PoE-adapter
Ja

Overige specificaties

Draadloze standaard
802.11ax (WiFi 6)

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Bedrijfstemperatuur (T-T)
-40 - 60 °C

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE
