Viewsonic TD2223, 54,6 cm (21.5"), 1920 x 1080 Pixels, Full HD, LED, 5 ms, Zwart

Ruim op voorraad

Fabrikant ViewSonic
MPN TD2223
EAN 0766907008647

Viewsonic TD2223 computer monitor 54,6 cm (21.5") 1920 x 1080 Pixels Full HD LED Touchscreen Multi-gebruiker Zwart

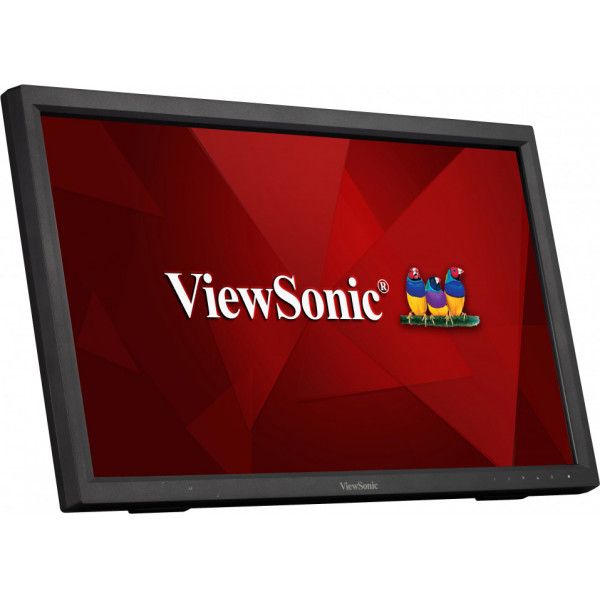

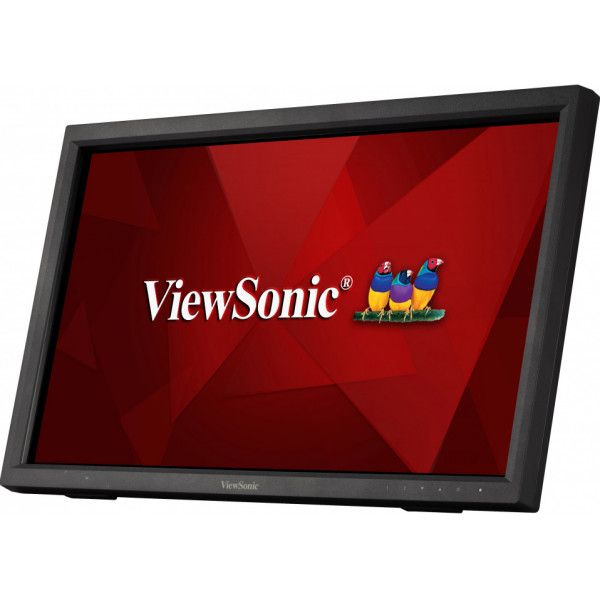

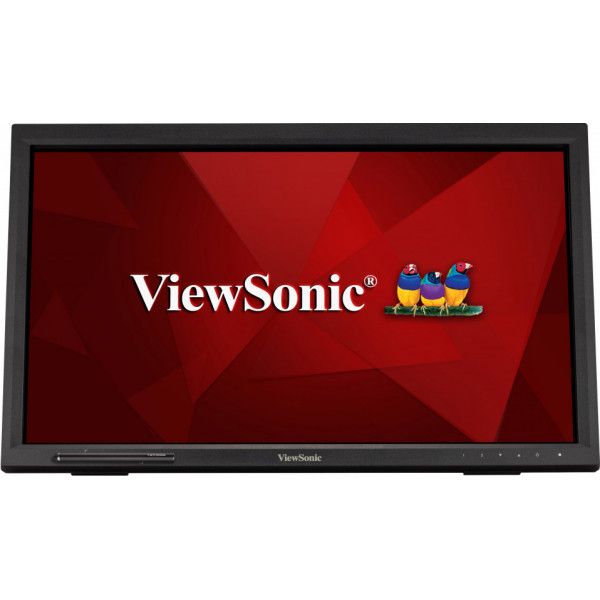

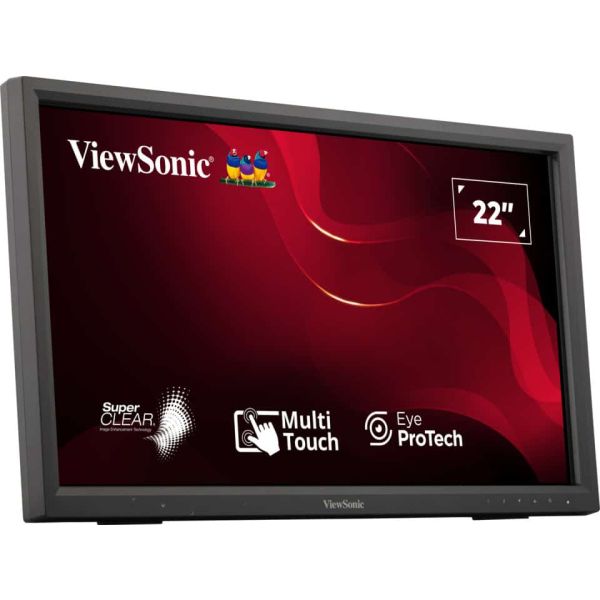

The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

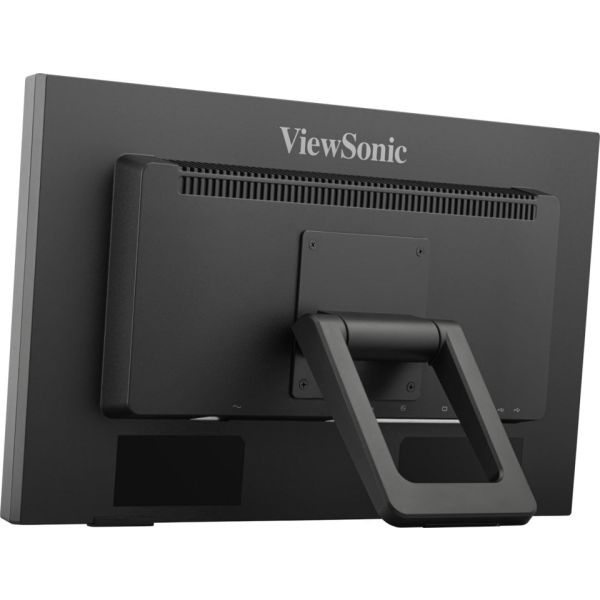

Adjustable Tilt

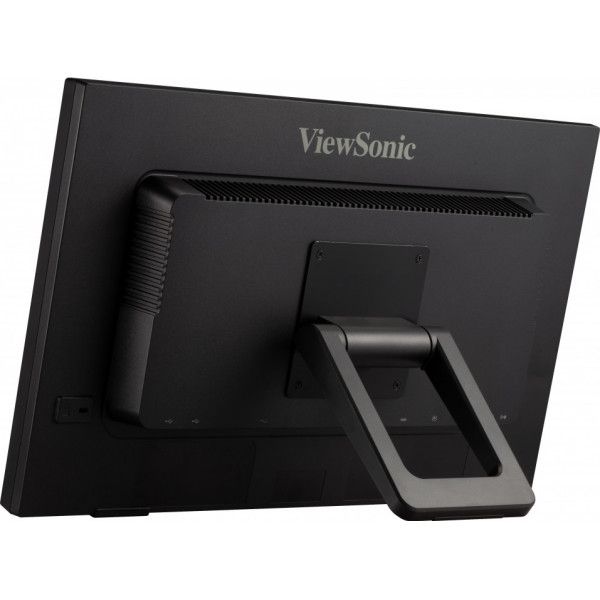

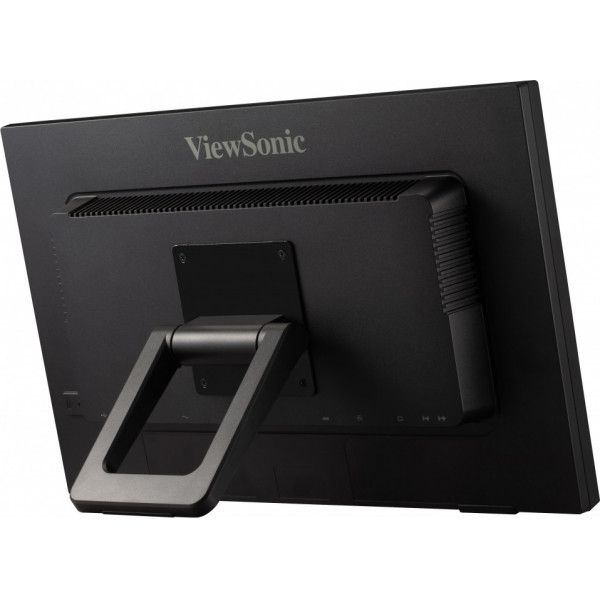

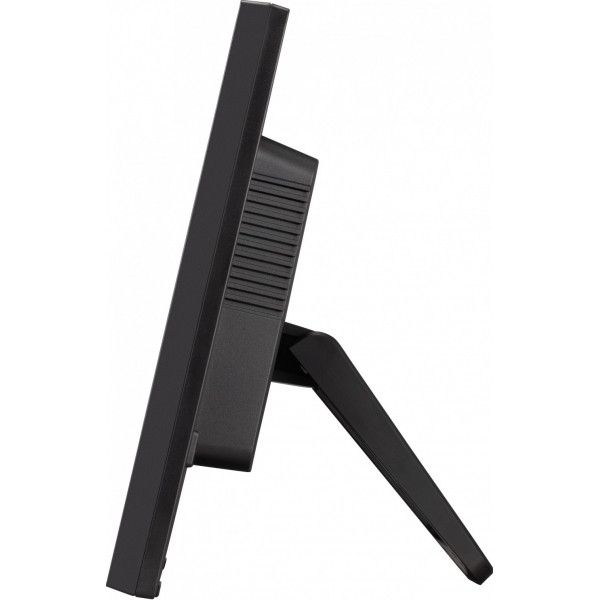

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
  • Intuitive 10-point touchscreen
  • Finger, stylus, and glove touch compatible
  • Magnetic pen placeholder
  • Adjustable back tilt up to 40-degrees
  • Scratch-resistant 7H hardness screen

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
54,6 cm (21.5")
Resolutie*
1920 x 1080 Pixels
HD type*
Full HD
Oorspronkelijke beeldverhouding*
16:9
Display technologie*
LED
Soort paneel*
TN
Touchscreen*
Ja
Touch screen type
Multi-gebruiker
Touchscreen technologie
Infrarood
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Responstijd
5 ms
Beeldscherm vorm*
Flat
Typische contrastverhouding*
1000:1
Contrast ratio (dynamisch)
20000000:1
Maximale refresh snelheid*
75 Hz
Kijkhoek, horizontaal
170°
Kijkhoek, verticaal
160°
Beeldscherm, aantal kleuren*
16.78 miljoen kleuren
Pixel pitch
0,248 x 0,248 mm
Frequentiebereik horizontaal
24 - 82 kHz
Frequentiebereik verticaal
50 - 75 Hz
Helderheid
250 cd/m²

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Multimedia

Ingebouwde luidsprekers*
Ja
Ingebouwde camera*
Nee
Aantal luidsprekers
2
Gemiddeld vermogen
4 W
Ingebouwde microfoon
Nee

Design

Kleur van het product*
Zwart
Glas dikheid
2 mm
Certificering
cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP

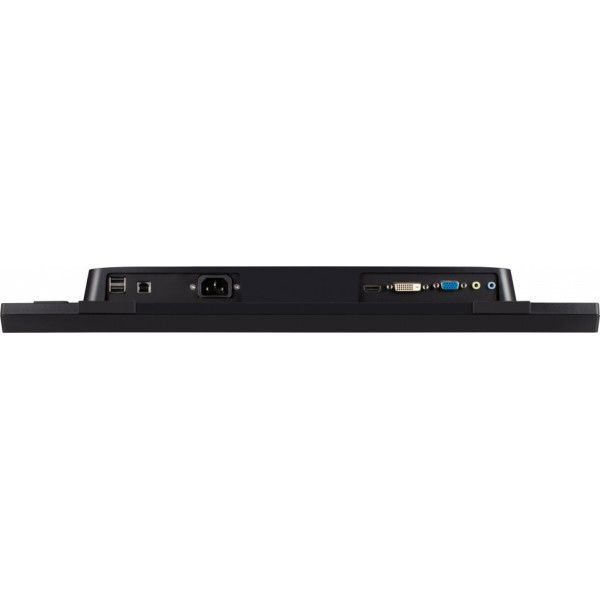

Poorten & interfaces

Ingebouwde USB-hub*
Ja
Type USB-upstreampoort
USB Type-B
Aantal upstream-poorten
1
Aantal USB Type-A downstream-poorten
2
VGA (D-Sub)poort(en)
1
DVI-poort
Ja
DVI-D poorten
1
HDMI*
Ja
Aantal HDMI-poorten
1

Poorten & interfaces

HDMI versie
1.4
Hoofdtelefoon uit*
Ja
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja

Ergonomie

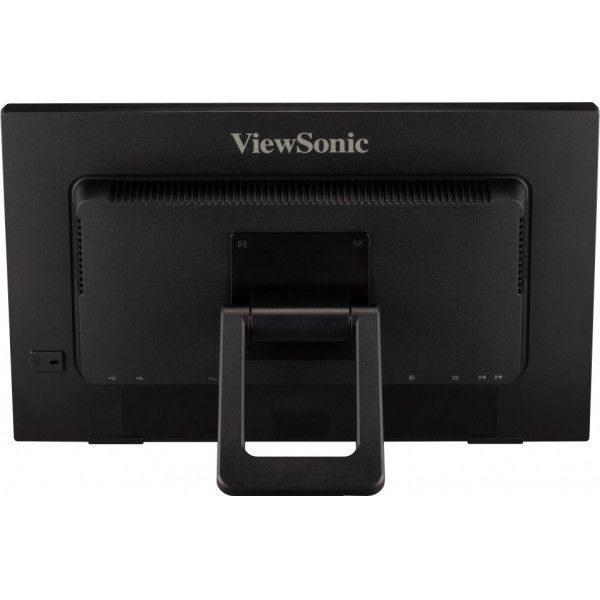

Paneelmontage-interface
100 x 100 mm
Ophangsysteem voor aan de muur
Ja
Bevestigingsmogelijkheid voor kabelslot*
Ja
Kabelslot sleuf type
Kensington
Bereik kantelhoek
22 - 38°
kantel aanpassingen
Ja

Energie

Energie-efficiëntieklasse (SDR)*
E
Energieverbruik (SDR) per 1000 uur*
14 kWu
Stroomverbruik (typisch)*
12,5 W
Stroomverbruik (in standby)*
0,5 W
Vermogensverbruik (max)
14 W
AC-ingangsspanning
100-240 V
AC-ingangsfrequentie
50 - 60 Hz
Soort voeding
AC

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 90 procent

Inhoud van de verpakking

Staander inbegrepen
Ja
Meegeleverde kabels
AC, Audio (3,5 mm), HDMI, USB Type-A naar USB Type-B

Gewicht en omvang

Breedte apparaat (met standaard)
521 mm
Diepte apparaat (met standaard)
101 mm
Hoogte apparaat (met standaard)
334 mm
Gewicht (met standaard)
4,5 kg
Breedte ( zonder voet )
52,1 cm
Diepte ( zonder voet )
6,1 cm
Hoogte (zonder voet )
31,8 cm
Gewicht (zonder voet)
3,9 kg

Verpakking

Breedte verpakking
580 mm
Diepte verpakking
164 mm
Hoogte verpakking
405 mm
Gewicht verpakking
6 kg

Duurzaamheid

Duurzaamheidscertificaten
ENERGY STAR, REACH, RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210
