Western Digital Ultrastar Data60, 288 TB, HDD, Serial Attached SCSI (SAS) III, 3.5", Rack (4U), Zwart, Grijs

Niet op voorraad

Fabrikant Western Digital
MPN 1ES0392
EAN 8592978122522

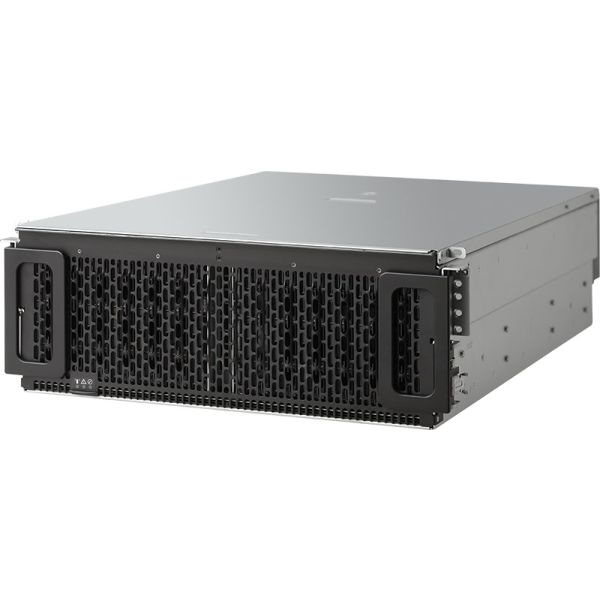

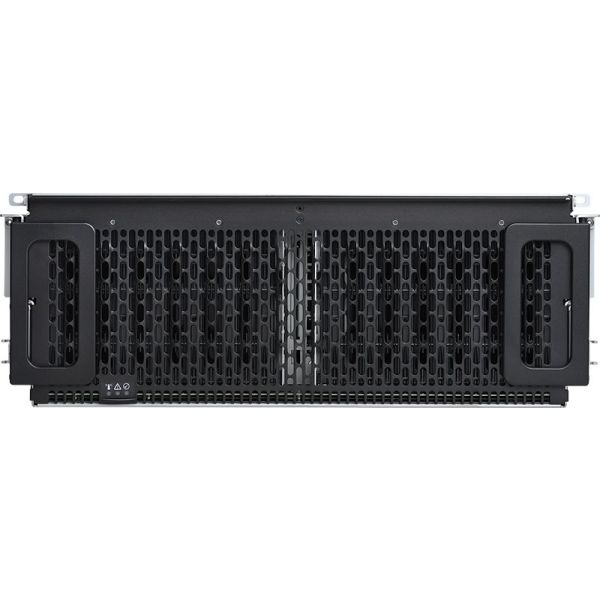

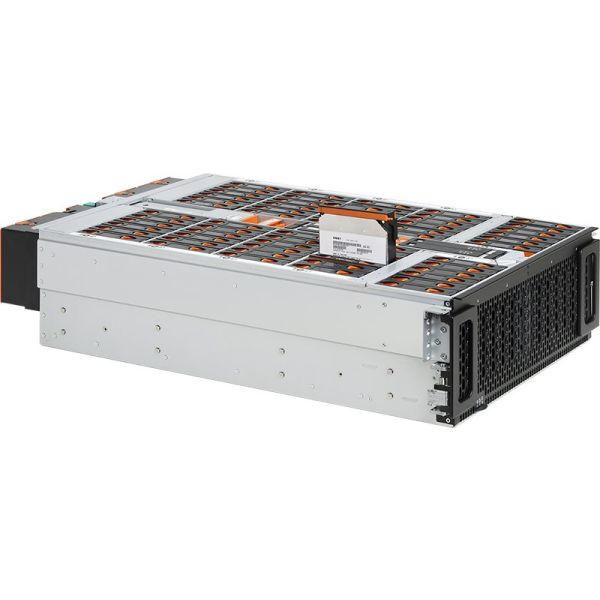

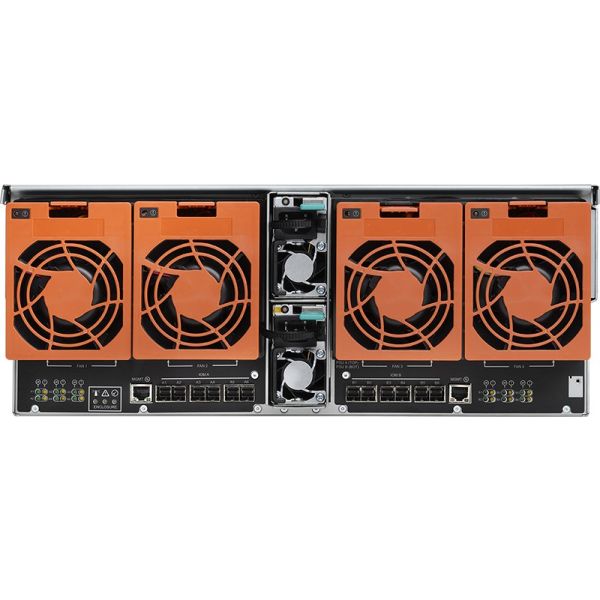

Western Digital Ultrastar Data60 disk array 288 TB Rack (4U) Zwart, Grijs

The Ultrastar Data60 is a key element of next‑generation disaggregated storage and software-defined storage (SDS) systems, delivering high density and the flexibility to balance performance with cost.

- High density – Up to 60 HGST HelioSeal® HDDs providing up to 720TB of raw storage in a 4U enclosure
- Flexible – Choice of SAS or SATA and up to 24 slots can be populated with SSDs for a data acceleration tier
- Innovative – Patented IsoVibe™ and ArcticFlow™ technologies improve performance and cooling

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Opslagdrives geïnstalleerd*
Ja
Geïnstalleerde opslag-drive*
HDD
Aantal storage drives geïnstalleerd*
24
Totale geïnstalleerde opslagcapaciteit*
288 TB
Ondersteunde types opslag-drives*
HDD & SSD
Aantal storage drives ondersteund*
60
Capaciteit opslag-drive
12000 GB
Opslag schijf-interface
Serial Attached SCSI (SAS) III
Opslag schijfgrootte
3.5"
Ondersteunde opslagstationinterfaces
SAS-3, SATA III
Overdrachtssnelheid
12 Gbit/s
Hot-swap drive bays
Ja

Poorten & interfaces

USB-aansluiting*
Nee
Mini-SAS-hostpoort
Ja
Mini-SAS-hostpoort aantal
12

Design

Type behuizing*
Rack (4U)
Kleur van het product
Zwart, Grijs
LED-indicatoren
Ja
Aantal ventilatoren
6 ventilator(en)
Overtollige fans ondersteuning
Ja

Design

Ingebouwd display
Nee

Prestatie

Apparaatklasse*
Kleine & middelgrote bedrijven

Energie

Capaciteit voedingsunit (PSU)
1600 W
Aantal voedingen
2
Redundante voeding
Ja
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50 / 60 Hz

Gewicht en omvang

Breedte
447 mm
Diepte
712 mm
Hoogte
175 mm
Diskbehuizing gewicht
27,3 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717020

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 85 procent
Temperatuur bij opslag
-40 - 60 °C
Hoogte, in bedrijf
0 - 915 m
