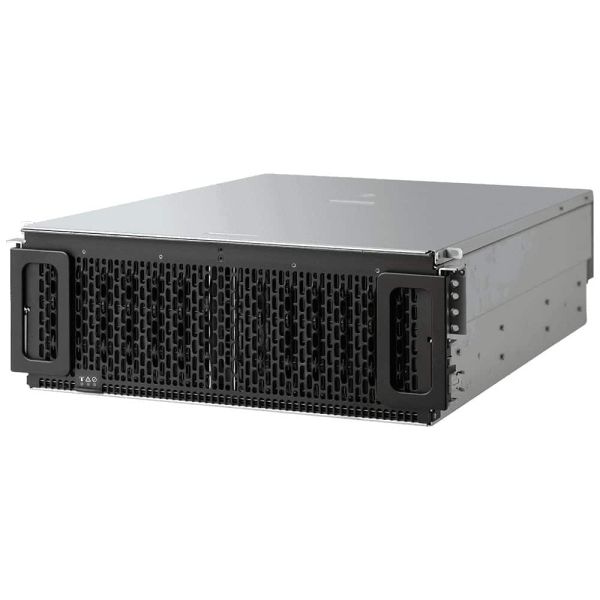

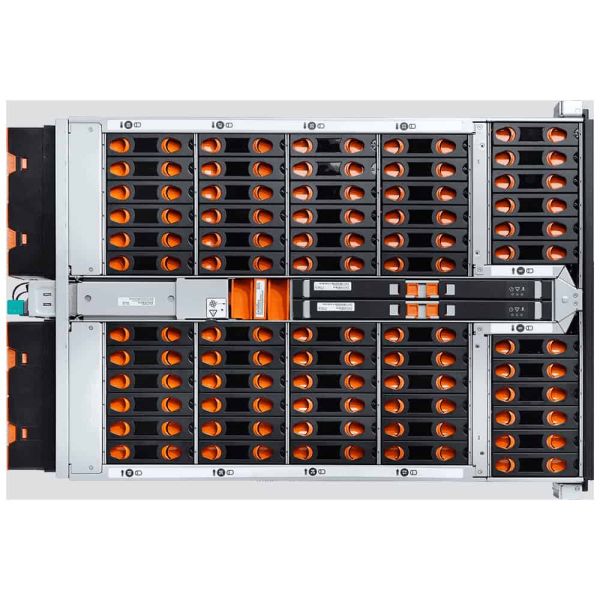

Western Digital Ultrastar Data60 disk array 8 TB Rack (4U)

Western Digital Ultrastar Data60, 8 TB, HDD, Serial Attached SCSI (SAS), 79,4 kg, Rack (4U)

Niet op voorraad

Fabrikant Western Digital
MPN 1ES1237
EAN 8592978125219
€ 21.623,00 excl. BTW

Western Digital Ultrastar Data60 disk array 8 TB Rack (4U)

This new platform addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers and resellers/integrators that require dense, shared HDD or hybrid storage. The Ultrastar Data60® Hybrid Storage Platform provides the flexibility to specify the HDD and SSD combinations to balance capacity, performance and cost.

Designed for Big Data
Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives, losing effectiveness as it gets heated up along the airflow path. Developing storage devices and platforms side-by-side, we address these challenges through vertical innovation, a set of technologies developed based on a holistic view of devices, platform, and their interactions. The first two of these patented technologies are IsoVibe™ and ArcticFlow™. IsoVibe reduces vibration-induced performance degradation, while ArcticFlow overcomes the cooling issues by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability, enabling our five‑year limited warranty on the entire platform.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Opslagdrives geïnstalleerd*
Ja
Geïnstalleerde opslag-drive*
HDD
Aantal storage drives geïnstalleerd*
60
Totale geïnstalleerde opslagcapaciteit*
8 TB
Ondersteunde types opslag-drives*
HDD & SSD
Aantal storage drives ondersteund*
60
Maximaal ondersteunde opslagcapaciteit*
840 TB
Opslag schijf-interface
Serial Attached SCSI (SAS)
Ondersteunde opslagstationinterfaces
SAS, SATA III

Design

Type behuizing*
Rack (4U)
LED-indicatoren
Ja
Intern koelsysteem
Ja

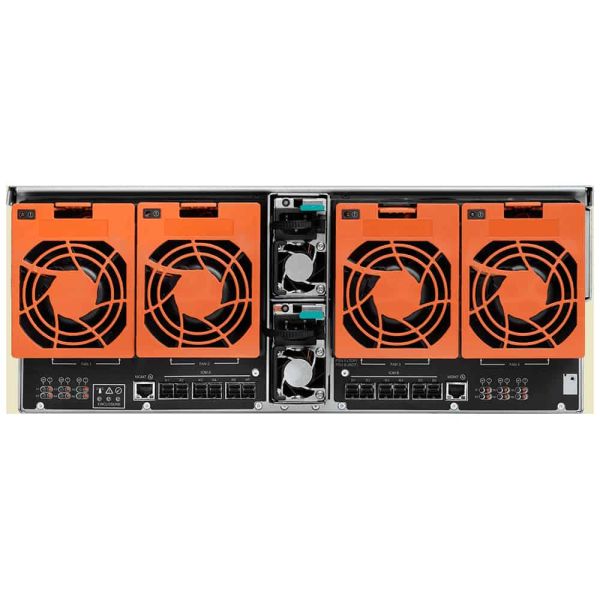

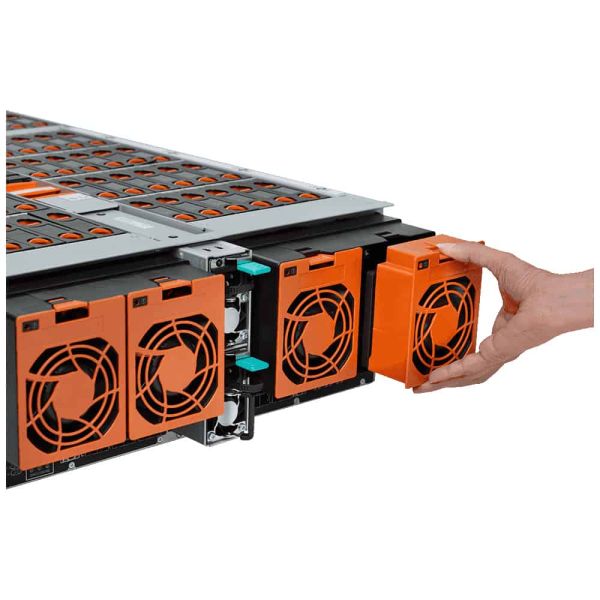

Aantal ventilatoren
6 ventilator(en)
Overtollige fans ondersteuning
Ja

Prestatie

Apparaatklasse*
Grote bedrijven

Energie

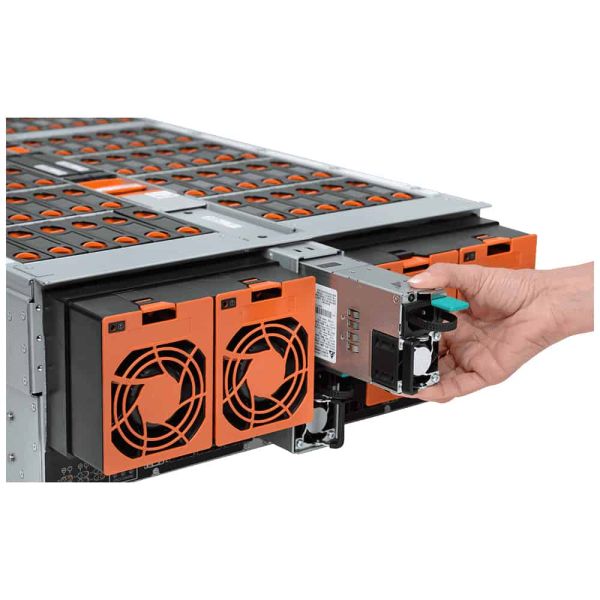

Capaciteit voedingsunit (PSU)
1600 W
Aantal voedingen
2
Redundante voeding
Ja
AC-ingangsspanning
220 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte
447 mm
Diepte
712 mm
Hoogte
175 mm
Gewicht
79,4 kg
Diskbehuizing gewicht
79,4 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717020

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 40 °C
Temperatuur bij opslag
-40 - 60 °C
