Zebra DS3678-DP, Draagbare streepjescodelezer, 1D/2D, Laser, Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C., Aztec Code, Samengestelde (composite) streepjescode, Datamatrix, Han Xin, MaxiCode, Micro QR Code,..., 655 nm

Niet op voorraad

Fabrikant Zebra
MPN DS3678-DP3RF50AS1W
EAN 5704174173199

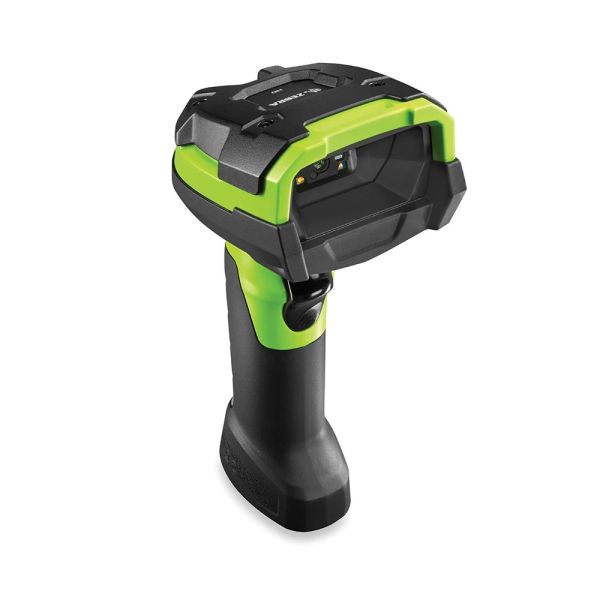

Zebra DS3678-DP Draagbare streepjescodelezer 1D/2D Laser Zwart, Groen

UNSTOPPABLE PERFORMANCE FOR 1D/2D DIRECT PART MARKS (DPM) AND BARCODES
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-DP corded and DS3678-DP cordless scanner brings the dependable lightning-fast capture of virtually every direct part mark to aerospace, automotive and other manufacturing plants where end-to-end traceability of every product component is required.

And since the DS3608-DP and DS3678-DP also captures any 1D and 2D barcode displayed on a screen or printed on a label, you get real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to quality control.

SUPERIOR PERFORMANCE
When it comes to capturing barcodes in the manufacturing plant, the DS3608-DP and DS3678-DP deliver the ultimate in scanning performance — period. Capture direct part marks regardless of size, surface, contrast, density or type — including challenging dot peen, chemical or laser etch, ink, inkjet mold, cast or thermal spray marks. And workers can capture any 1D or 2D barcode displayed on a screen or printed on a label in practically any condition for superior barcode capture flexibility in a single scanner.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Optische sensorresolutie
1280 Pixels
Soort scanner*
1D/2D
Type beeldsensor*
Laser
Ondersteunde streepjescodes (1D)*
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D ( matrix en gestapeld ) barcodes ondersteund*
Aztec Code, Samengestelde (composite) streepjescode, Datamatrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Golflengte
655 nm
Tilt lees-hoek
-65 - 65°
Pitch lees-hoek
-65 - 65°
Yaw lees-hoek
-45 - 45°

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad en draadloos
Standaard interfaces*
RS-232, USB, Toetsenbord-aansluiting
Aansluitbereik
100 m
Bluetooth-versie
4.0
Bluetooth Low Energy (BLE)
Ja
Ethernet LAN
Ja

Prestatie

Internationale veiligheidscode (IP)
IP67
Veiligheidsfunties
Stofafstotend, Schokbestendig, Waterbestendig
LED-indicatoren
Ja

Prestatie

Kleur van het product*
Zwart, Groen
Programmeringsfunctie
Ja

Energie

Type stroombron*
Batterij/Accu
Batterijtechnologie
Lithium-Ion (Li-Ion)
Capaciteit van de accu/batterij
3100 mAh
Aantal lezingen per inzet
100000

Gewicht en omvang

Breedte
143 mm
Diepte
77 mm
Hoogte
185 mm
Gewicht*
402 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070
