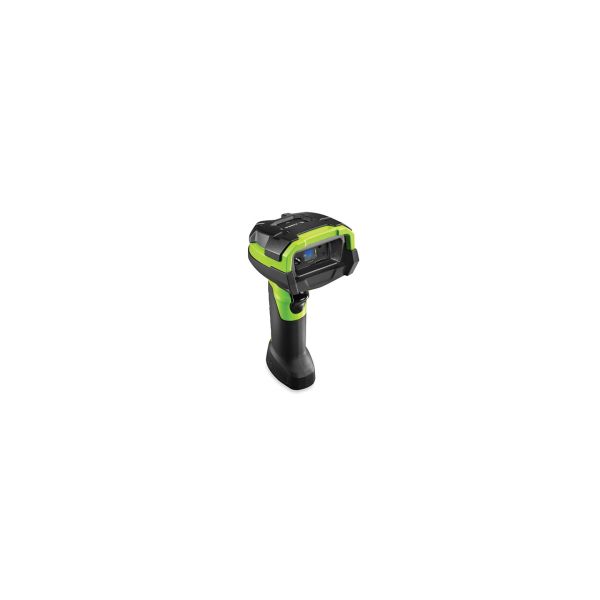

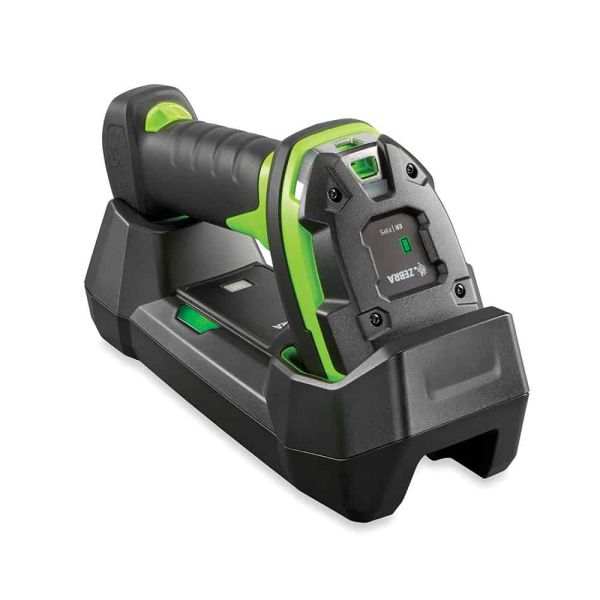

Zebra Barcode-Scanner DS3678-ER 1D/2D USB/RS232/Bluetooth

De Zebra DS3678-ER is een robuuste, draadloze 1D/2D imager scanner die is ontworpen voor betrouwbare barcodeherkenning, ook op grote afstand. Dankzij de extended range (ER) optiek is deze scanner uitermate geschikt voor omgevingen waarin barcodes zowel van dichtbij als op afstand gescand moeten worden, zoals magazijnen en distributiecentra. Met Bluetooth 4.0 (LE) connectiviteit biedt de DS3678-ER maximale bewegingsvrijheid zonder in te leveren op scanprestaties.

8 op voorraad (levering verwacht binnen 8 dagen)Dit item is op voorraad bij een Europese distributeur. Onze leverancier kan dit item daar bestellen en vervolgens doorsturen. De levertijd is daarom ~8 werkdagen.

Fabrikant Zebra
MPN DS3678-ER3U4602FVW
EAN 5711783783947
€ 1.029,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
UNSTOPPABLE PERFORMANCE FOR EXTENDED-RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse. Designed to capture any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away, these scanners provide the ultimate in versatility — workers can capture large picklist codes and small codes at near contact as easily as barcodes on pallets and location codes on the top of your warehouse racks. And truly unstoppable performance helps you drive throughput, accuracy and customer service to a new level.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away in practically any condition, as fast as they can pull the trigger. Even if barcodes are under shrinkwrap on a pallet; damaged, dirty or poorly printed; on a picklist; or on your highest warehouse rack, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. These freezer-ready corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Productassistent

Vraag mij alles over dit product

Onze digitale assistent geeft direct antwoord op je productvragen, maar kan zich soms vergissen.

Specificaties

Scanning

Type
Handheld bar code reader
Optical sensor resolution
1280 pixels
Scanner type
1D/2D
Sensor type
Laser
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength
655 nm
Tilt reading angle
-65 - 65°
Pitch reading angle
-65 - 65°
Yaw reading angle
-45 - 45°

Ports & interfaces

Connectivity technology
Wired & Wireless
Standard interfaces
RS-232, USB, Keyboard wedge
Wireless range
100 m
Bluetooth version
4.0
Bluetooth Low Energy (BLE)
Ethernet LAN

Performance

International Protection (IP) code
IP67
Protection features
Dust resistant, Shock resistant, Water resistant
LED indicators

Performance

Product colour
Black, Green
Programming function

Power

Power source type
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3100 mAh
Number of reads per charge
70000

Weight & dimensions

Width
142 mm
Depth
76 mm
Height
185 mm
Weight
436 g

Operational conditions

Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%

Technical details

Sustainability certificates
RoHS

Logistics data

Harmonized System (HS) code
84716070
