Zebra LI3678-ER, Draagbare streepjescodelezer, 1D, Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional,..., 17,1 m, 0 - 107639 Lux, 660 nm

Ruim op voorraad

Fabrikant Zebra
MPN LI3678-ER2F003VZWW
EAN 5704174198277

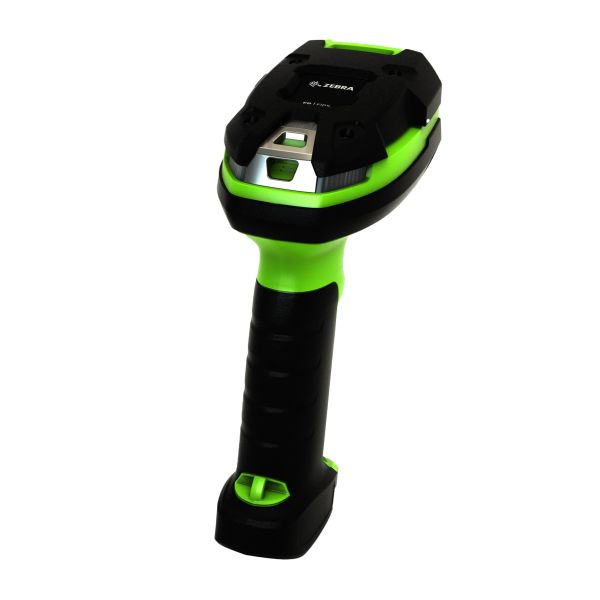

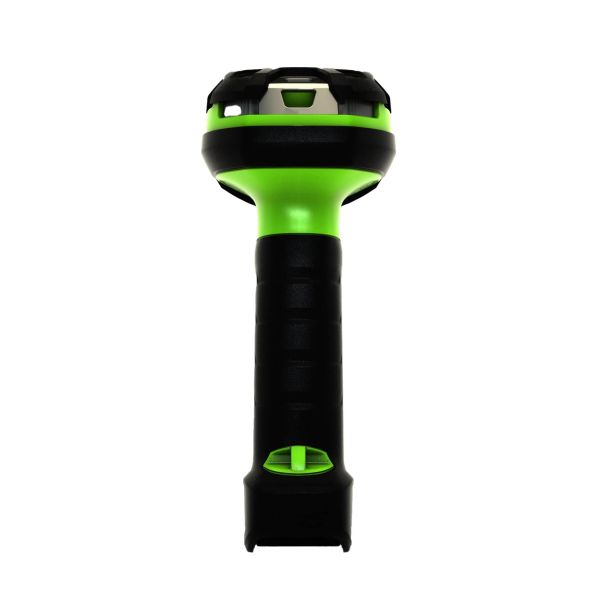

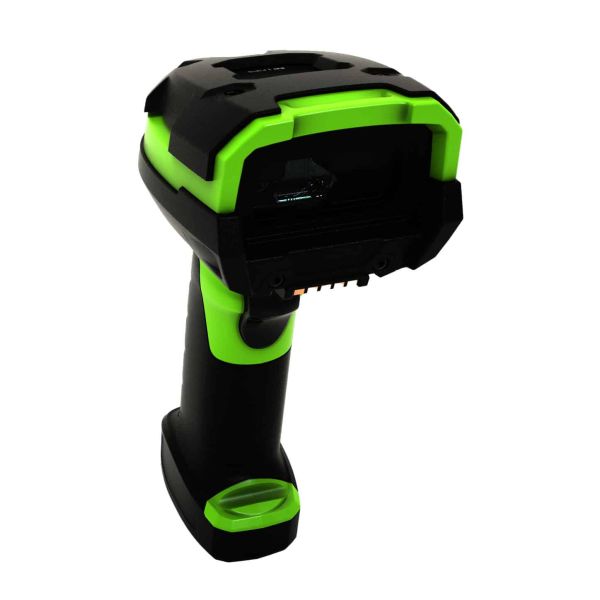

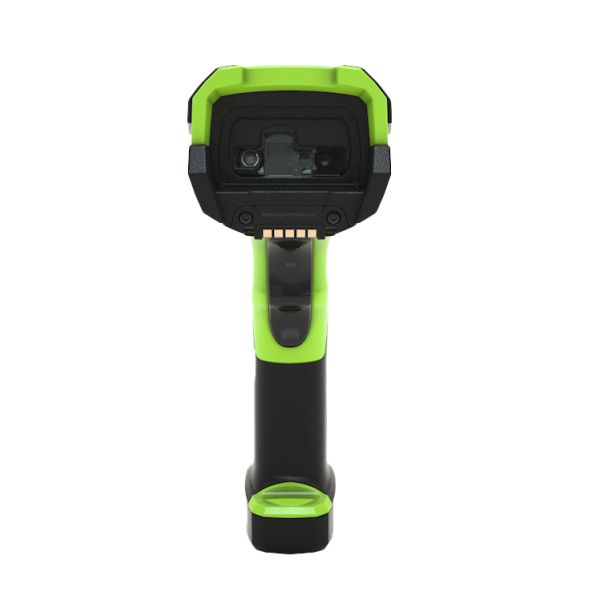

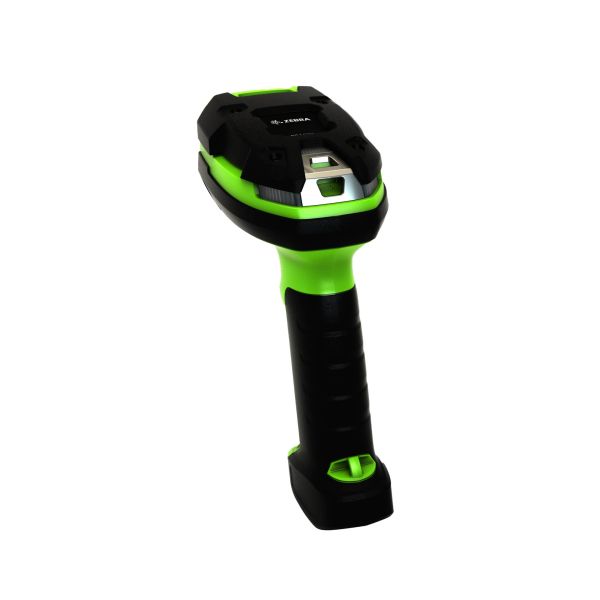

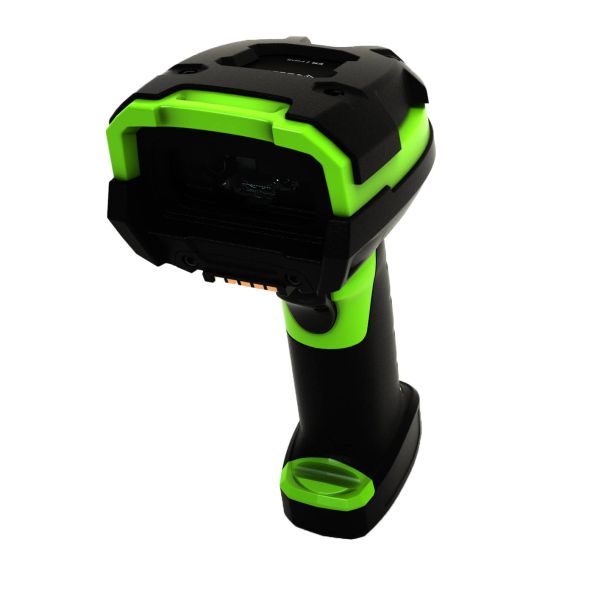

Zebra LI3678-ER Draagbare streepjescodelezer 1D Zwart, Groen

Unstoppable performance for extended-range 1D barcode capture
"As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse." Designed to capture virtually any 1D barcode from as close as 2 in./5,1 cm to as far as 56 ft./17,1 m away, these scanners provide the ultimate in versatility — workers can capture codes in hand as well as on the top of your warehouse racks. And these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity to drive throughput, accuracy and customer service to a new level.

In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including the crispest aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more. And Zebra’s Network Connect for Automation delivers a seamless connection between LI3608-ER/LI3678-ER scanners and your Industrial Ethernet network without additional third party equipment, reducing complexity, and eliminating a point of failure.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Optische sensorresolutie
2496 Pixels
Soort scanner*
1D
Ondersteunde streepjescodes (1D)*
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
2D ( matrix en gestapeld ) barcodes ondersteund*
Niet ondersteund
Werkafstand
17,1 m
Licht niveaus (direct zonlicht)
0 - 107639 Lux
Golflengte
660 nm
Pitch lees-hoek
-65 - 65°

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad en draadloos
Standaard interfaces*
RS-232, USB, Toetsenbord-aansluiting
Overdrachtssnelheid
3 Mbit/s
Aansluitbereik
100 m
Bluetooth-versie
4.0
Bluetooth Low Energy (BLE)
Ja

Prestatie

Internationale veiligheidscode (IP)
IP67
Veiligheidsfunties
Stofafstotend, Waterbestendig
LED-indicatoren
Ja
Kleur van het product*
Zwart, Groen

Prestatie

Programmeringsfunctie
Ja

Energie

Type stroombron*
Batterij/Accu
Batterijtechnologie
Lithium-Ion (Li-Ion)
Ondersteund aantal accu's/batterijen
1
Capaciteit van de accu/batterij
3100 mAh
Aantal lezingen per inzet
100000

Gewicht en omvang

Breedte
77 mm
Diepte
142 mm
Hoogte
185 mm
Gewicht*
424 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070
