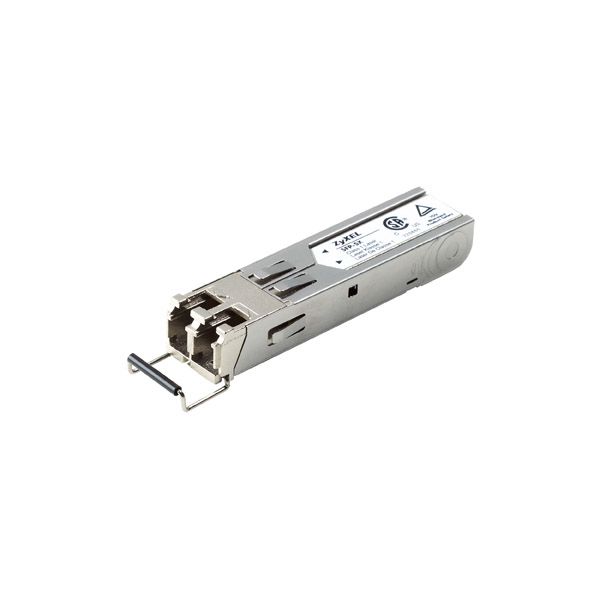

Zyxel SFP-SX-D, 1000 Mbit/s, 550 m, 1310 nm, 1000Base-LHX, Plug-in, Class 1 Laser, CSA, TUV, 21 CFR 1040.10 & 1040.11

Ruim op voorraad

Fabrikant ZyXEL
MPN 91-010-204001B
EAN 4718937510344

Zyxel SFP-SX-D netwerk transceiver module 1000 Mbit/s 1310 nm

SFP ports mean flexibility. The flexibility to choose which fiber you want to run and what sort of distance you need. They save money by allowing you to use existing fiber so you don’t have to run more. Instead of buying a switch with built-in fiber ports, buy a switch with SFP ports that allows you to choose what type of fiber transceiver you want to use on a port-by-port basis.
- Gigabit Performance Transmission and Flexibility
- Small Size and High Port Density
- Industry Standard-based Compliance

Gigabit Speed and Flexibility
ZyXEL's Small Form-factor Pluggable (SFP) transceiver family provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port.

Small Size and High Port Density
ZyXEL's SFP transceiver's compact design provides high port density. For example, ZyXEL GS-3012F switch can connect up to 12 fiber links - all at an affordable price.

Industry Standards-based Compliance
ZyXEL's SFP transceiver family is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Maximaal bereik
550 m
Golflengte
1310 nm
Bekabelingstechnologie
1000Base-LHX

Kenmerken

Vormfactor
Plug-in
Veiligheid
Class 1 Laser, CSA, TUV, 21 CFR 1040.10 & 1040.11

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
56 mm
Diepte
13,4 mm
Hoogte
12,5 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85369010

Overige specificaties

Afmetingen (B x D x H)
56 x 13,4 x 12,46 mm
