Zyxel ANT2105-ZZ0201F, 7 dBi, 2.4/5 GHz, 4,5 dBi, 7 dBi, 50 Ohm, 360°

Nog 16 beschikbaar

Fabrikant ZyXEL
MPN ANT2105-ZZ0201F
EAN 4718937609413

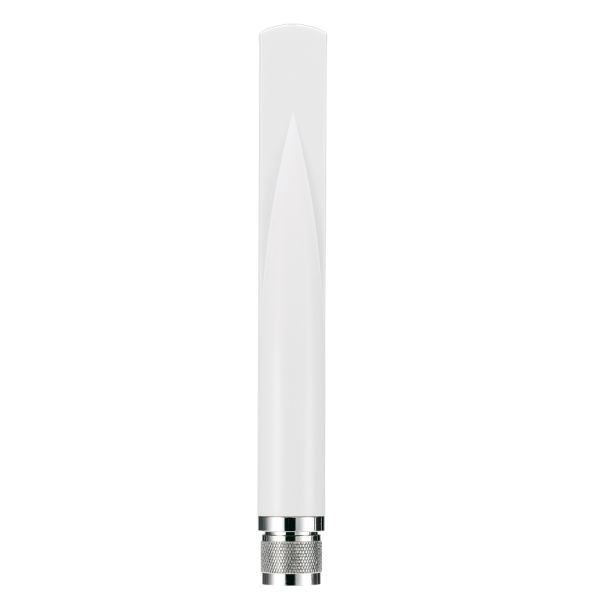

Zyxel ANT2105-ZZ0201F antenne Omnidirectionele antenne N-type 7 dBi

Build a Wholesome WLAN Infrastructure with ZyXEL Selected Accessories

- Compatible with ZyXEL WLAN devices to get optimal signal quality
- Matching colors and exterior looks
- Multiple options to meet your current network environments

When building a wireless LAN infrastructure, the IT staff should consider several factors influencing transmission efficiency, such as different facility sizes, building materials and interior divisions. To address this concern, a comprehensive WLAN solution for wireless LAN deployments can be critical.

To facilitate the installation process, ZyXEL offers a complete range of 2.4 GHz and 5 GHz antennas, cables and other accessories for Access Points (APs) to enable customized wireless deployments for almost any installation types.

The ZyXEL antennas are available in various space, directionality, gain and range capabilities in different form factors. With appropriately coupled antennas and APs, businesses will enjoy prefect WLAN environments with superior coverage, better reliability and higher data rates in all kinds of facilities. In addition, the ZyXEL low-loss cables can be used to extend the distance between any ZyXEL 2.4 GHz and 5 GHz AP and the antenna through N-plug or RP-SMA connectors.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Frequentieband*
2.4/5 GHz
Antenne versterking (2.4 GHz)
4,5 dBi
Antenna versterking (5 GHz)
7 dBi
Impedantie
50 Ohm
H-plane (3 dB straalbreedte)
360°
E-plane (3 dB straalbreedte)
30°
Horizontale balk wijdte (2.4 GHz)
360°
Verticale balk wijdte (2.4 GHz)
30°
Horizontale balk wijdte (5 GHz)
360°
Verticale balk wijdte (5 GHz)
15°
Antenne versterkingsniveau (max)*
7 dBi

Kenmerken

Soort antenne*
Omnidirectionele antenne
Aansluiting antenne*
N-type

Kenmerken

Polarisatie
Verticale polarisatie
Bedoeld voor
Buiten
Kleur van het product
Wit

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Hoogte
183 mm
Diameter
2,2 cm
Gewicht
70 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85177100
