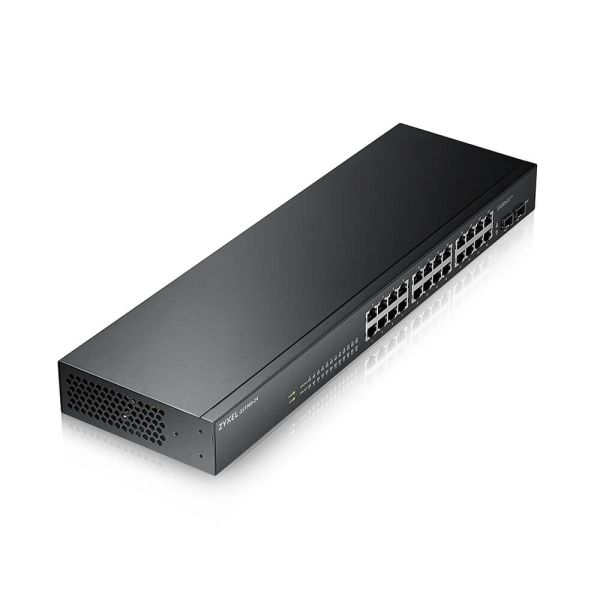

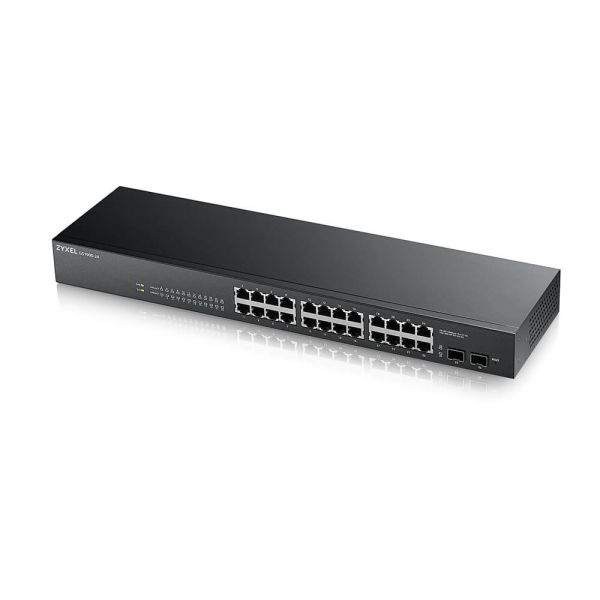

Zyxel GS-1900-24 v2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Zwart

Zyxel GS-1900-24 v2, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, 1U

Ruim op voorraad

Fabrikant ZyXEL
MPN GS1900-24-EU0102F
EAN 4718937621231
€ 121,00 excl. BTW

Zyxel GS-1900-24 v2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Zwart

Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.

Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.

Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.

Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.
  • Start up button
  • VLAN
  • QoS
  • Link aggregation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
System event log
Ja
MIB-ondersteuning
RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
MAC-adres zelflerende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

Data-uitwisseling

Switchingcapaciteit*
52 Gbit/s
Verzending snelheid
39 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,525 MB

Beveiliging

DHCP-functies
DHCP client
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS
MAC adres filtering
Ja
Statische poort beveiliging
Ja
SSH/SSL support
Ja
Wachtwoordbeveiliging
Ja
Authenticatie type
RADIUS, TACACS+

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Reset button
Ja
LED-indicatoren
Ja
Certificering
EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant

Prestatie

Mean time between failures (MTBF)
432,673 uur

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
16 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Warmtedissipatie
55 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
131 mm
Hoogte
44 mm
Gewicht
2,09 kg

Verpakking

Meegeleverde kabels
AC
Type verpakking
Doos
Rekbevestigingspakket
Ja
Breedte verpakking
561 mm
Diepte verpakking
217 mm
Hoogte verpakking
82 mm
Gewicht verpakking
2,85 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
