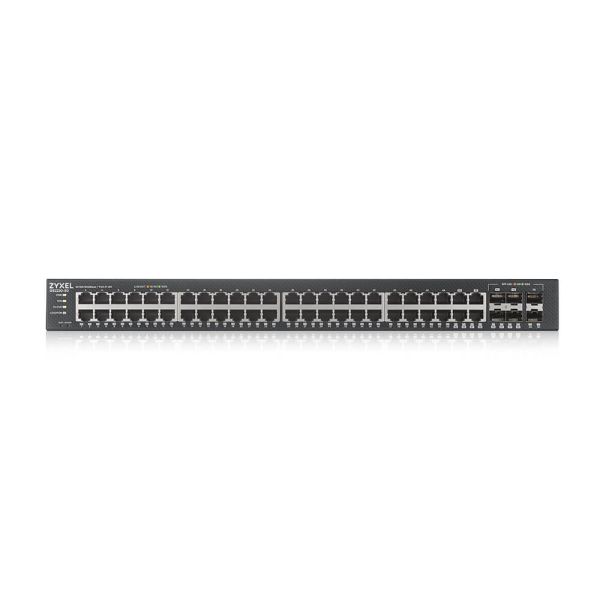

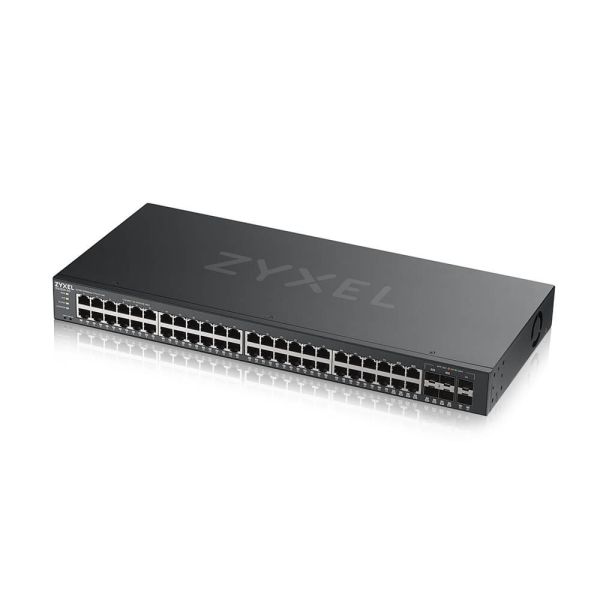

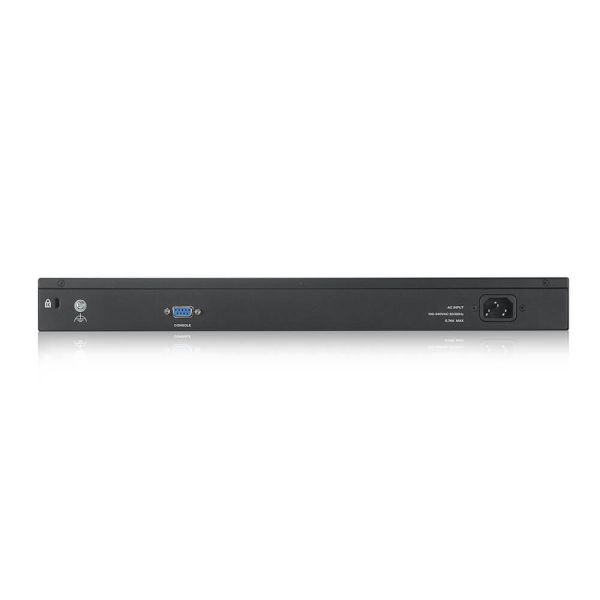

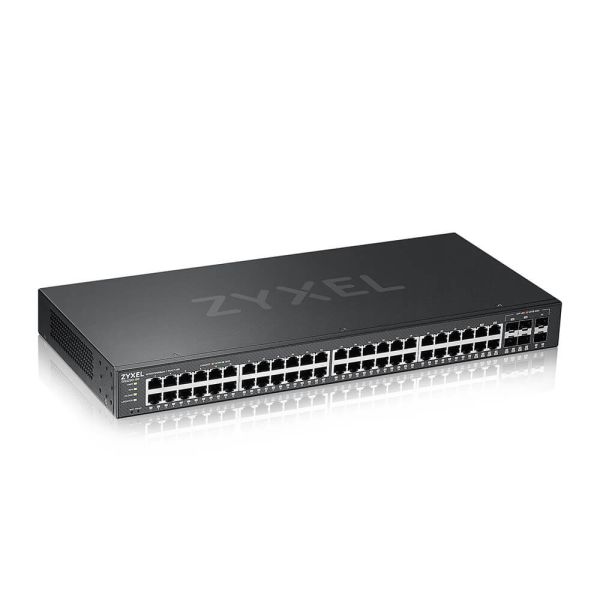

Zyxel GS2220-50-EU0101F netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Zwart

Zyxel GS2220-50-EU0101F, Managed, L2, Gigabit Ethernet (10/100/1000), Rack-montage

Nog 14 beschikbaar

Fabrikant ZyXEL
MPN GS2220-50-EU0101F
EAN 4718937607525
€ 442,00 excl. BTW

Zyxel GS2220-50-EU0101F netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Zwart

Designed for converged networks
GS2220 Series
Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.

Industry first tri-mode switch.
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.

Powerful L2 features.
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.

Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.

Experience whisper-silent operations.
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.

Flexible port combination.
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.

Plug into the power of the Zyxel One Network.
The Zyxel One Network (ZON) Utility is a unified installation tool to discover and configure Zyxel Switches, WLAN and Gateways in the standalone network. Users can easily maintain the network in a single platform. ZON Utility is a free of charge tool which has been downloaded by over 32,000 users to date.
  • Fully managed layer 2 switching solution. 44 port GbE 100/1000 Mbps + 4 port GbE combo (SFP/RJ-45) + 2 SFP (50 ports total)
  • NebulaFlex Pro gives you the flexibility to switch between standalone and intuitive Nebula cloud managed mode with 1-Year Pro Pack bundled
  • L2 multicast, IGMP snooping, MVR and voice VLAN for convergence. Enhanced network protection with IP source guard, DHCP Snooping, ARP inspection, CPU protection
  • Smart fan design delivers whisper-silent operation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
44
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
4
Fibre channel-poorten
2
Vezel-optische connector
SFP

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-TX, 1000BASE-T
Port mirroring
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Optische vezel

Fiber ethernet cabling technologie
1000BASE-X

Data-uitwisseling

Switchingcapaciteit*
100 Gbit/s
Verzending snelheid
74 Mpps
MAC-adrestabel*
16000 entries
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
MAC adres filtering
Ja
Authenticatie
Gast-VLAN, MAC-gebaseerde authenticatie

Beveiliging

Authenticatie type
IEEE 802.1x, RADIUS

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Kleur van het product
Zwart
Certificering
LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A

Prestatie

Intern geheugen
256 MB
Flash memory
32 MB
Geluidsniveau
47,3 dB
Mean time between failures (MTBF)
660245 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
36,9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Warmtedissipatie
125,829 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
200 mm
Hoogte
44,5 mm
Gewicht
2,9 kg

Verpakking

Meegeleverde kabels
AC
Breedte verpakking
496 mm
Diepte verpakking
289 mm
Hoogte verpakking
90 mm
Gewicht verpakking
3,97 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
