Zyxel NAP203 1300 Mbit/s Wit Power over Ethernet (PoE)

Zyxel NAP203, 1300 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab,..., 16-QAM, 64-QAM, 256-QAM, BPSK, DBPSK, DQPSK, QPSK, WMM-energiebesparing, 27 dBmW

Niet op voorraad

Fabrikant ZyXEL
MPN NAP203-ZZ0101F
EAN 4718937592890
€ 330,00 excl. BTW

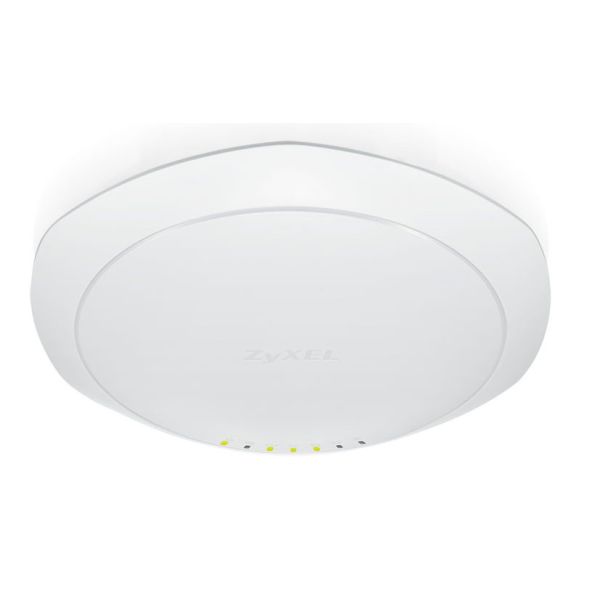

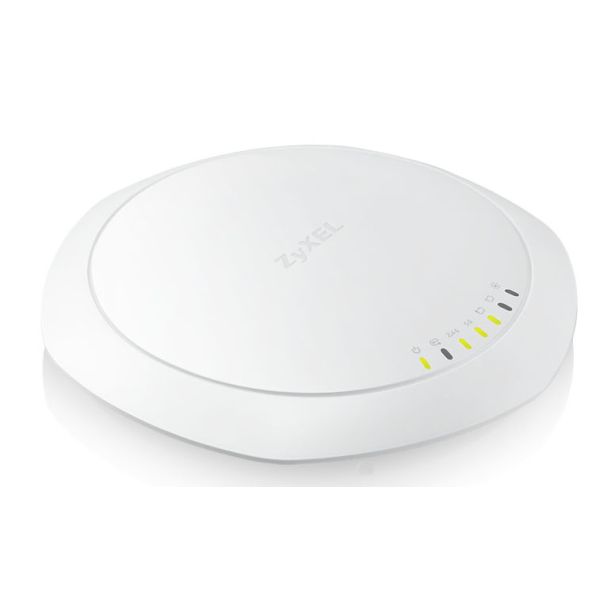

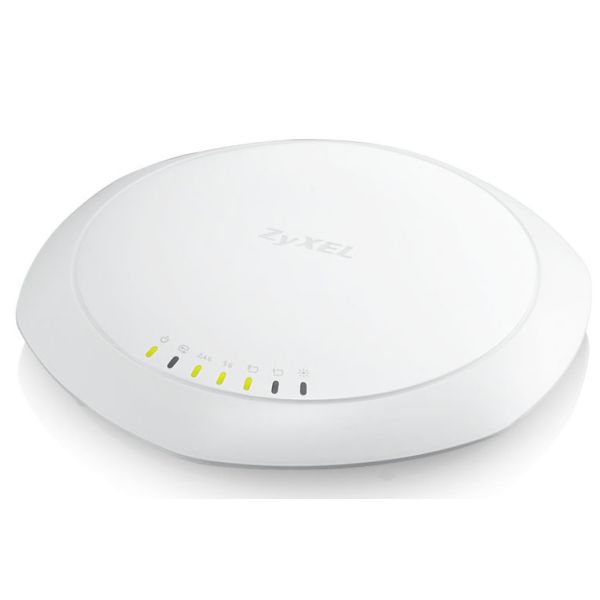

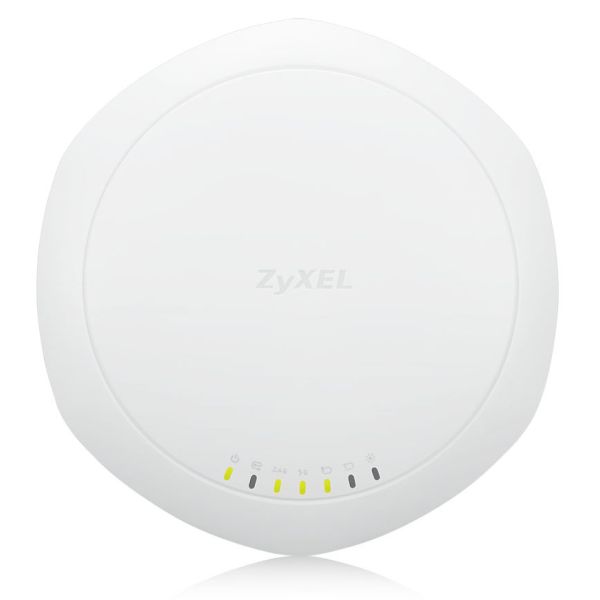

Zyxel NAP203 1300 Mbit/s Wit Power over Ethernet (PoE)

802.11ac Dual-Radio, Dual-Optimized Antenna 3x3 Nebula Cloud Managed Access Point

The Zyxel Nebula NAP203 802.11ac Dual-Radio, Dual-optimized Antenna 3x3 Nebula Cloud Managed Access Point is a high-performance 3-stream 802.11ac Wi-Fi AP featuring ultra-fast speeds of up to 1.75 Gbps with a groundbreaking “dual-optimized” antenna design. Through the innovative adjustable antenna setting, the NAP203 can provide the best signal coverage in both ceiling-mount and wall-mount deployments to deliver constant, no-compromise Wi-Fi performance. Additionally, the ultra-slim ID design at 32mm height blends perfectly into modern interior decorations.
Every Nebula AP has been engineered for cloud management. Based on the NETCONF standard, all data traffics between the cloud and APs are exchanged using secure transports to ensure transaction-safe configuration on all Nebula devices. Furthermore, with the intuitive management interface, administrators are able to control all the APs quickly even without training.

Benefits

Zero-touch deployments
The Zyxel Nebula APs auto-configure themselves after installation, and then automatically connect to the Nebula cloud to join the network; so autoconfiguration, provision, monitoring and diagnostics can be performed anytime, anywhere. This simplifies network setup and enables deployment of Nebula APs to a remotely located network even by non-IT professionals.

Dual-optimized antenna design
Ceiling-mount installation is now the major type of wireless deployments; it is still common that most APs on the market today are designed with a single static radiation pattern for ceiling-mount installations. However, this kind of design may create interference with devices on upper and lower floors, and it delivers only short-range signals to wireless clients placed in front of the wall-mount AP. To deliver optimal Wi-Fi performance in both ceiling- and wall-mount installations, the Zyxel NAP203 features an innovative “Dual-optimized” antenna. Pattern of the antenna can be adjusted via a physical switch or cloud configuration in just seconds.

Optimized wireless experience
The Zyxel Nebula NAP203 delivers optimized wireless experience for users with comprehensive wireless features such as Dynamic Channel Selection (DCS), Load Balancing, and Smart Client Steering, etc. DCS avoids interference from co-channeling and overlapping channels continuously, while Load Balancing and Smart Client Steering which features Band Select and Balance for more spectrum to provide more stable, reliable wireless connections.

Enterprise-class security
The Zyxel Nebula NAP203 inherits the NETCONF protocol for secure configuration changes. In terms of authentication and data encryption, it supports WPA2 enterprise protection and a wide range of Extensible Authentication Protocol (EAP) types, including EAP SIM for smartphones. Besides, the NAP203 also features access control and Layer-2 isolation for privacy protection. The comprehensive security features ensure NAP203 to deliver enterprise-grade protection to the entire network.

Ultra-slim exterior design
Zyxel Nebula NAP203’s ultra-slim exterior (32 mm in height) and understated white color blend perfectly into all kinds of decorations in various buildings with extraordinary modern tastes. The compact, elegant aesthetics makes NAP203 suitable for different decors no matter it’s meant to be visible or not.

Dual-optimized Antenna
The unprecedented Dual-optimized Antenna is an adjustable internal antenna with “just fit” pattern options optimized for wall- or ceiling-mount that the installation technician can instantly change the antenna pattern simply via the physical antenna switch without booting the device. If needed, administrators can base on their know-how to perform granular signal optimization per floor plan via software configuration remotely. With the flexibility, the NAP203 can fit for wallmount or ceiling-mount deployment without the hassles of antenna accessory selection and signal coverage adjustment.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
1300 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
MIMO
Ja
Modulatie
16-QAM, 64-QAM, 256-QAM, BPSK, DBPSK, DQPSK, QPSK
Wifi Multimedia (WMM)/(WME)
Ja
Wi-Fi Multimedia (WMM) functies
WMM-energiebesparing
VLAN=ondersteuning
Ja
Draadloze isolatie
Ja
Maximal-Ratio Combining (MRC)
Ja
Maximum Likelihood Detection (MLD)
Ja
Cyclic Shift Diversity (CSD)
Ja
Quality of Service (QoS)
Ja
Zendvermogen
27 dBmW
Gevoeligheid ontvanger
-102 dBm

Beveiliging

Ondersteunde beveiligingsalgoritmen*
802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, SSID, WEP, WPA, WPA2-PSK
MAC adres filtering
Ja
Aantal SSID-ondersteuningen
8
Remote Authentication Dial-In User Service (RADIUS)
Ja

Protocollen

DHCP client
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
2

Energie

Power over Ethernet (PoE)*
Ja
Netvoeding
12,48 W

Design

Plaatsing*
Plafond, Muur
Kleur van het product*
Wit
LED-indicatoren
Ja
Certificering
FCC 15C, FCC 15E, ETSI EN 300 328, EN 301 893, LP0002, FCC 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438, EN 60950-1, IEC 60950-1, BSMI CNS14336-1
Intern
Nee

Antenne

Antennefuncties
Ingebouwde antenne
Antennas quantity
2
Antenne versterkingsniveau (max)
5 dBi

Gewicht en omvang

Breedte
203,9 mm
Diepte
191,7 mm
Hoogte
34,7 mm
Gewicht
445 g

Verpakking

Breedte verpakking
235 mm
Diepte verpakking
246 mm
Hoogte verpakking
60 mm
Gewicht verpakking
938 g

Inhoud van de verpakking

Montage gereedschap
Ja
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
10 - 90 procent
