Zyxel WAC6303D-S, 1300 Mbit/s, 1300 Mbit/s, 10,100,1000 Mbit/s, 1600 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u, 80 MHz

Ruim op voorraad

Fabrikant ZyXEL
MPN WAC6303D-S-EU0101F
EAN 4718937594603

Zyxel WAC6303D-S 1300 Mbit/s Wit Power over Ethernet (PoE)

Networking administrators managing busy venues must understand how visitors longed for WiFi and how challenging it is to meet the demands within limited budgets.

Zyxel brings affordable and triple-performance 3x3:3 MU-MIMO access point WAC6303D-S which is built with Smart antenna to mitigate co-channel interference in high-density environment. And its embedded BLE Beacon provides insight into your consumers, WAC6303D-S not only resolves the challenge today it thinks for the ever-growing mobility demands tomorrow.

MU-MIMO, New Definition of Wi-Fi
Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.

Next Generation Transmit Beamforming benefits overall networking
Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.

Optimal Wireless Experience
WAC6303D-S features Smart antenna technology which is proven able to mitigate co-channel interference, and adaptively adjust antenna patterns to fit in high-density application.

Built for Superior performance
The WAC6303D-S is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.

Optimized wireless experience with advanced features
To provide outstanding performance in crowded environment, WAC6303D-S features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.

Unified access point- Fits all businesses
Stay standalone mode if you’re a start-up, needing just few APs; convert to controller-managed mode when business grows up, requiring hundreds of APs.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
1300 Mbit/s
Draadloos LAN data-overdrachtsnelheid (max)
1300 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Gegevensdoorvoersnelheid
1600 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u
Kanaalbandbreedte
80 MHz
MIMO
Ja
MIMO-type
Multi User MIMO
Modulatie
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, QPSK
Wifi Multimedia (WMM)/(WME)
Ja
VLAN=ondersteuning
Ja
Maximal-Ratio Combining (MRC)
Ja
Maximum Likelihood Detection (MLD)
Ja
Cyclic Shift Diversity (CSD)
Ja
Quality of Service (QoS)
Ja
Gevoeligheid ontvanger
-103 dBm

Beveiliging

Ondersteunde beveiligingsalgoritmen*
802.1x RADIUS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA2-PSK
MAC adres filtering
Ja
Aantal SSID-ondersteuningen
16

Protocollen

DHCP client
Ja
Beheerprotocollen
SNMP v2c/v3

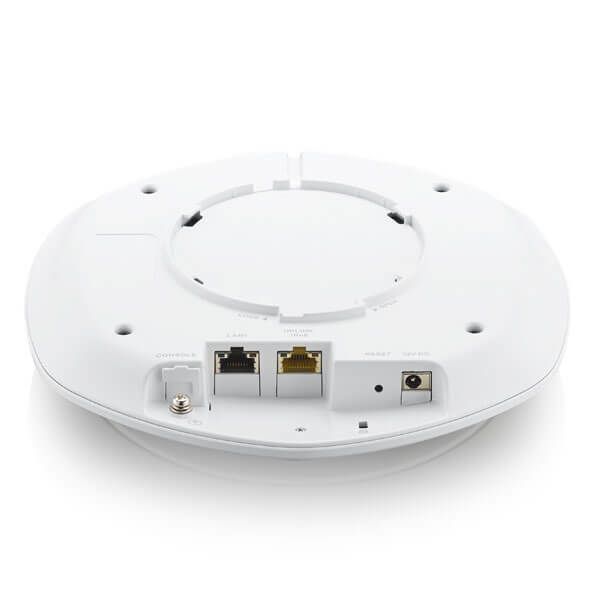

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
2
Aansluiting voor netstroomadapter
Ja

Energie

Power over Ethernet (PoE)*
Ja
AC-ingangsspanning
100 - 240 V

Energie

AC-ingangsfrequentie
50 - 60 Hz
Spanning
12 V
Output current
2 A

Design

Plaatsing*
Plafond, Muur
Kleur van het product*
Wit
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
Intern
Nee

Antenne

Antenne versterkingsniveau (max)
4 dBi

Gewicht en omvang

Breedte
211 mm
Diepte
223 mm
Hoogte
39 mm
Gewicht
800 g

Verpakking

Breedte verpakking
251 mm
Diepte verpakking
247 mm
Hoogte verpakking
55 mm
Gewicht verpakking
1,04 kg

Inhoud van de verpakking

Montage gereedschap
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
-20 - 60 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
10 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
