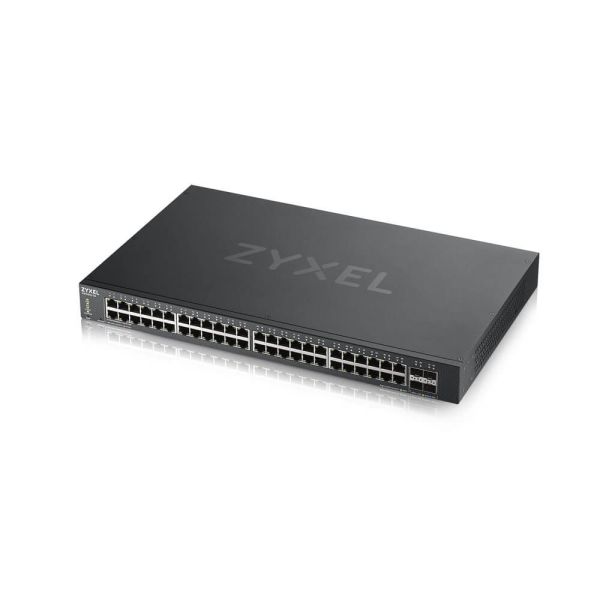

Zyxel XGS1930-52, Managed, L3, Gigabit Ethernet (10/100/1000), Rack-montage

Ruim op voorraad

Fabrikant ZyXEL
MPN XGS1930-52-EU0101F
EAN 4718937595044

Zyxel XGS1930-52 Managed L3 Gigabit Ethernet (10/100/1000) Zwart

Flexible and easy way to manage your switch
The XGS1930 can be used in two modes by utilizing Zyxel's NebulaFlex. You are able to easily change between standalone and our license free Nebula cloud management platform, anytime, with a few simple clicks. You can easily access advanced features such as VLAN, Quality of Service (QoS), IGMP Snooping, Link Aggregation (LAG) wether you choose intuitive web-based GUI or cloud-based Nebula management platform.
The XGS1930 enables cloud manageability with Zyxel's NebulaFlex to protect your investment by having the flexibility to benefit from the cloud in your own time, without the need to worry about additional ongoing licensing costs. You can grasp your network device status and perform remote configuraitons anytime, anywhere.

A new and flexible approach to 10G!
Under the new stylish carbon-like cover comes new hardware and software to widen the user experience for our new series of 10G switches. The XGS1930’s flexible approach includes the introduction of NebulaFlex, giving you the ability to configure the switch without unboxing. The XGS1930 also includes intuitive new features like the One-touch ‘Restore’ button on the front panel.

What to benefit from Central management?
The XGS1930 series of switches are able to join our License Free Cloud management platform, Nebula. Simply register your switch via the portal (Nebula Control Center) and the device will automatically join, auto provision and begin to give you real-time control and information, anywhere, anytime.
Not ready for the cloud… Just yet?
Not ready for the cloud? No problem the XGS1930 series offers traditional standalone (Smart Managed) configuration via it’s intuitive local web based setup, whilst always giving you the flexibility to centrally control via Nebula when you are ready without any additional fees.

An affordable approach to 10G, the backbone of any network.
The XGS1930 series has been designed to suite a wide range of scenarios that SMBs are often faced with. Feature rich, flexible management options and 10G uplinks, all make the XGS1930 series the first choice for SMBs looking for an upgrade path from 1G, future proofing or have requirements for higher bandwidths across their backbone.

More available power with intelligent PoE support.
The XGS1930 series offers 30-watt (802.2at) PoE+ to each port and gives a large PoE+ budget of 375w on all PoE models. The PoE is further enhanced with intelligent PoE (Smart Power), allowing the switch to deliver the actual power required to devices connected without wasting power often lost in the PoE allocation process. This approach can see the switch support more PoE devices on a single switch compared to traditional smart managed switches, even power-hungry devices like CCTV and Wireless Access Points.

Experience whisper-silent operation.
The XGS1930 series has been designed with smart fan technology to automatically adjust speeds round the temperature of the device. This allows the switch to minimize the acoustic noise and create a whisper-silent operation in typical deployments.
  • NebulaFlex™ gives you the flexibility to switch between standalone and our license-free Nebula cloud management
  • Nebula cloud management allows easy deployment, real-time configurations and effortless access to all your cloud devices anytime
  • Handles the increasing highbandwidth applications in your office affordably with four built-in 10G SFP+ uplinks
  • Easy management and setup with web-based interface and user-friendly wizard
  • Smart fan design offers silent operations in your office
  • Check real-time status intuitively by cloud and PoE LED indicators

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
4
Vezel-optische connector
SFP+

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Ja
IP routing
Ja
Routing entries
32
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Voice VLAN, Port-based VLAN
Aantal VLANs
4000

Data-uitwisseling

Switchingcapaciteit*
176 Gbit/s
Verzending snelheid
130,9 Mpps
MAC-adrestabel*
16000 entries
Statische route
Ja
Path MTU discovery (PMTUD)
Ja
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, HTTPS, SHA-2, SNMPv3, SSL/TLS
SSH/SSL support
Ja
Bescherming lus
Ja
Authenticatie
Gast-VLAN, MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie
Wachtwoordbeveiliging
Ja
CPU-bescherming
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage*
Ja
Kleur van het product
Zwart
Veiligheid
LVD, BSMI
Elektromagnetische compatibiliteit
FCC 15 A, CE A, BSMI EMC
Certificering
RoHS

Prestatie

Intern geheugen
512 MB
Flash memory
32 MB
Geluidsniveau
26,3 dB
Mean time between failures (MTBF)
827093 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
55,7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Warmtedissipatie
189,937 BTU/h

Gewicht en omvang

Breedte
441 mm
Diepte
270 mm
Hoogte
44 mm
Gewicht
3,7 kg

Verpakking

Meegeleverde kabels
AC
Rekbevestigingspakket
Ja
Breedte verpakking
616 mm
Diepte verpakking
355 mm
Hoogte verpakking
107 mm
Gewicht verpakking
4,78 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
