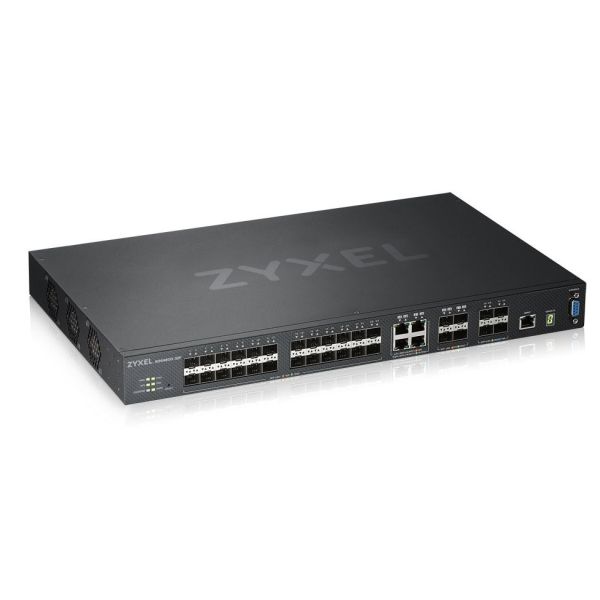

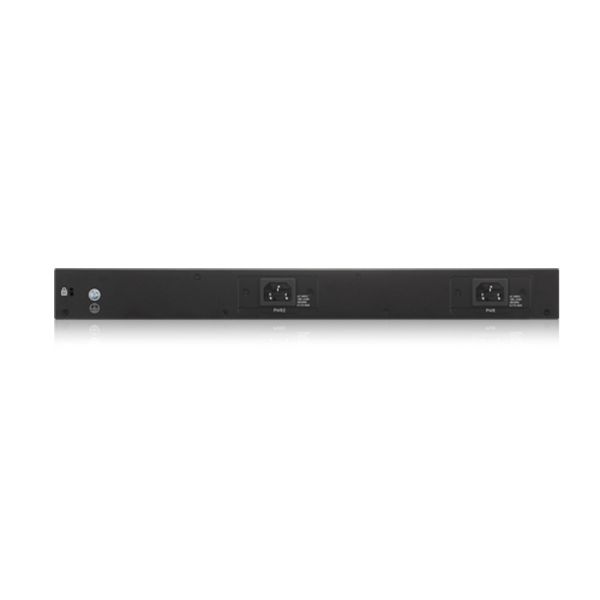

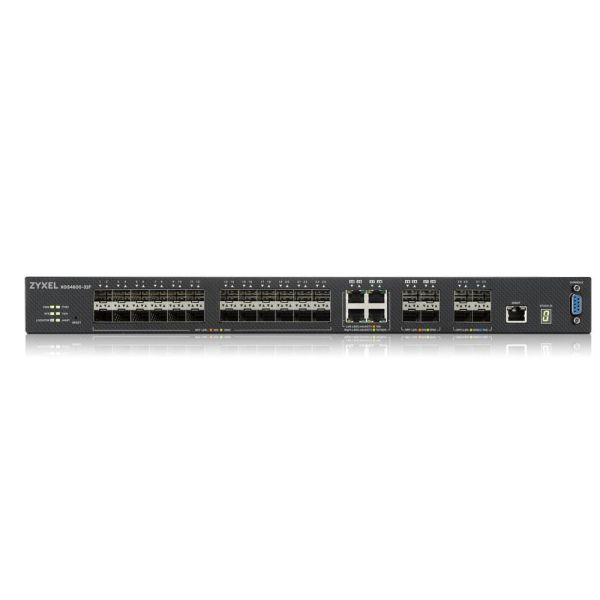

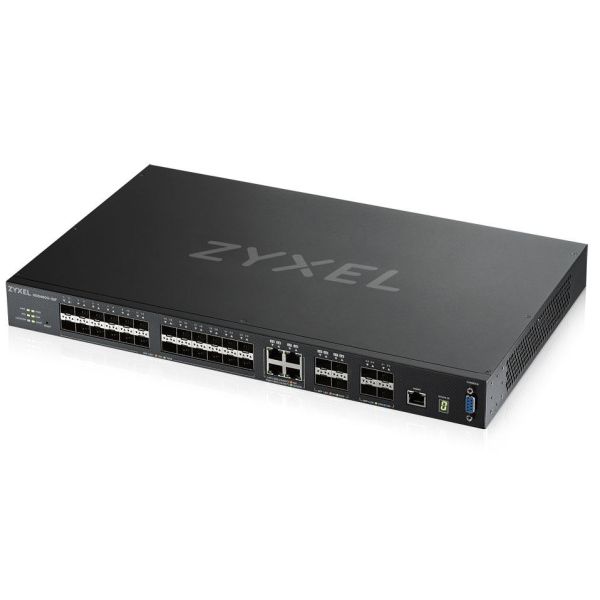

Zyxel XGS4600-32F Managed L3 Zwart (XGS4600-32F-ZZ0102)

Schrijf de eerste review over dit product en win een coupon van € 100,-!

€ 2.184,00
excl. BTW € 2.642,64 incl. BTW
Partnummer:

XGS4600-32F-ZZ0102

EAN: 4718937590575 Beschikbaarheid: Nog 2 beschikbaar (bel voor reservering)
Omschrijving

Zyxel XGS4600-32F L3 Managed Switch 24 port Gig SFP 4 dual pers. and 4x 10G SFP+ stackable dual PSU

Bestel Nu >>
Toon in vergelijking
Toevoegen aan favorieten

Liever leasen? Dit kan al vanaf € 45,51 per maand.

Kies uw leasetermijn: maanden

Productinformatie

Zyxel XGS4600-32F. Switch type: Managed, Switch-laag: L3. Console port: RS-232. MAC-adrestabel: 32000 entries, Switchingcapaciteit: 136 Gbit/s. Netwerkstandaard: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE.... Rack-montage

XGS4600 Series
28-port GbE L3 Managed Switch with 4 SFP+ Uplink

Bandwidth-intensive applications such as multimedia streaming, VoIP and video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded and that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues and education institutions. Zyxel’s brand new Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks.

High availability
To implement fault-tolerant networks, the Zyxel XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. Four units or 112 Gigabit ports can be configured as a stack using optional directattach cables or transceivers to provide high bandwidth on the XGS4600 Series for more flexible management. The stacking topology under the ring architecture provides high redundancy in case one of the stacking links fail. The system can quickly recover through another stacking connection. The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.

Advanced L3 features
Hierarchical business networks become more complex because of the increased communication among subnets. The XGS4600 Series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. In addition, the XGS4600 Series comes with full Layer-2 switching and Layer-3 routing capabilities if the system is working under the stacking mode. The stackable structure greatly enlarges network coverage as well as network resiliency that most enterprise networks require.

Flexible management and future-proof networks
The XGS4600 Series can be managed via CLI which is consistent with Zyxel managed switches, while the intuitive Web-based GUI helps skilled network administrators to quickly become more productive. As the IP address scheme evolves to accommodate a growing number of network devices, the Zyxel XGS4600 Series assures businesses a smooth migration path from IPv4-based networks to a full IPv6 infrastructure for protection to the investments in future network upgrades.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Ontwerp

Rack-montage Ja
Kleur van het product Zwart
Veiligheid ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1
Certificering FCC Part 15 (Class A)
CE EMC (Class A)
Kleur van het product Zwart

Beheerfuncties

Switch type Managed
MIB-ondersteuning Ja
Multicast-ondersteuning Ja
Quality of Service (QoS) Ja
Switch-laag L3

Poorten & interfaces

Aantal Combo SFP-poorten 4
Console port RS-232
Koperen ethernetbekabelingstechnologie 10BASE-T,100BASE-TX,1000BASE-T
Aantal moduleslots SPF 24
Aantal moduleslots SPF+ 4

Netwerk

Netwerkstandaard IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
IGMP snooping Ja
10G support Ja
VLAN=ondersteuning Ja
Routing entries 12000
IP routing Ja
Verbindingsaggregatie Ja
Datastroombeheer Nee
Spanning tree protocol Ja
Tag-based VLAN Ja
Virtuele LAN-functies Tagged VLAN

Data-uitwisseling

MAC-adrestabel 32000 entries
Switchingcapaciteit 136 Gbit/s
Throughput 101,1 Mpps
Aantal IP-interfaces 256

Beveiliging

Ondersteunde beveiligingsalgoritmen SSH,SSH-2,SSL/TLS
Authenticatie Poortgebaseerde authenticatie

Prestatie

Packet buffergeheugen 4 MB
Geluidsniveau 60,3 dB
Flash memory 64 MB
Intern geheugen 1000 MB
Mean time between failures (MTBF) 794270,06 uur

Energie

AC invoer voltage 100 - 240 V
AC invoer frequentie 50 - 60 Hz
Vermogensverbruik (max) 60,1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Nee

Eisen aan de omgeving

Temperatuur, in bedrijf 0 - 50 °C
Temperatuur bij opslag -40 - 70 °C
Relatieve luchtvochtigheid, in bedrijf 10 - 95 procent
Luchtvochtigheid bij opslag 10 - 95 procent
Warmtedissipatie 204,94 BTU/h

Gewicht en omvang

Breedte 441 mm
Diepte 270 mm
Hoogte 44 mm
Gewicht 4,21 kg

Verpakking

Gewicht pakket 5,83 kg
Breedte van de verpakking 616 mm
Diepte van de doos 335 mm
Hoogte van de verpakking 107 mm
Rekbevestigingspakket Ja
