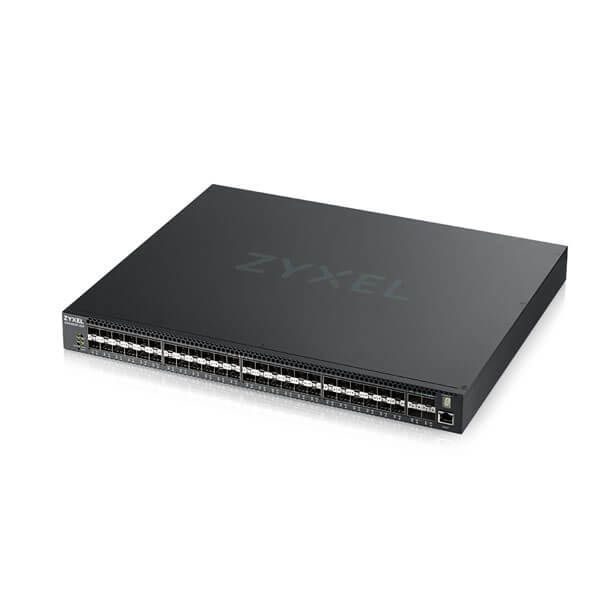

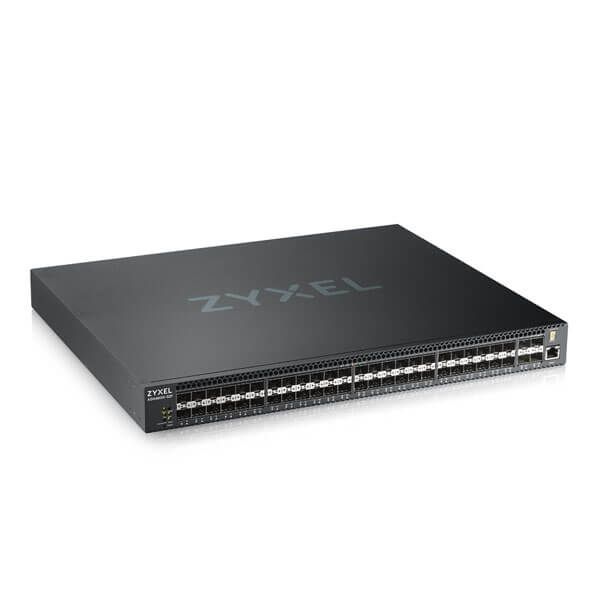

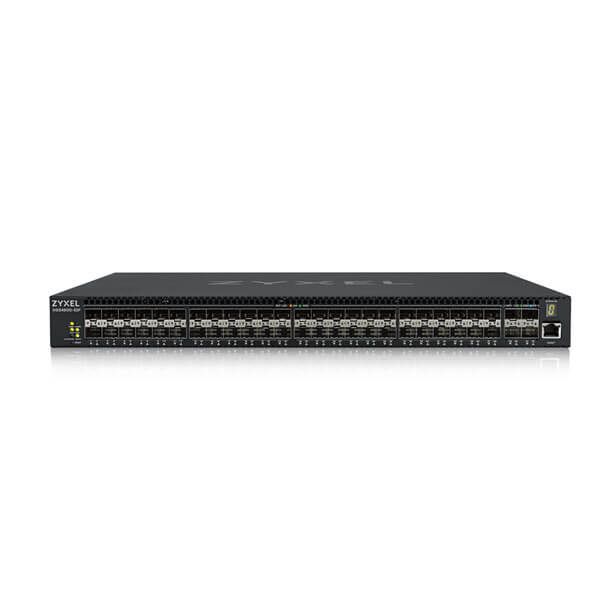

Zyxel XGS4600-52F Managed L3 Zwart
Stylish Outlook
New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.
Choose a right L3 switch for your network
High Availability
The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600-32/32F allows creating a physical stack through one or two 10-Gigabit SFP+ slots. XGS4600 series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks.
High Resiliency
The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.
Choose a right L3 switch for your network
High Availability
The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600-32/32F allows creating a physical stack through one or two 10-Gigabit SFP+ slots. XGS4600 series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks.
High Resiliency
The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beheerfuncties
Switch type*
Managed
Switch-laag
L3
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal moduleslots SPF
48
Aantal moduleslots SPF+
4
Netwerk
Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Ja
IP routing
Ja
Data-uitwisseling
Switchingcapaciteit*
176 Gbit/s
MAC-adrestabel*
32000 entries
Packet buffergeheugen
4 MB
Beveiliging
DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Ondersteunde beveiligingsalgoritmen
SSH, SSL/TLS
MAC adres filtering
Ja
SSH/SSL support
Ja
BPDU filtering / bescherming
Ja
Design
Rack-montage*
Ja
Stapelbaar*
Nee
Kleur van het product
Zwart
LED-indicatoren
Ja
Prestatie
Intern geheugen
1024 MB
Prestatie
Flash memory
64 MB
Geluidsniveau
42,6 dB
Mean time between failures (MTBF)
815860 uur
Energie
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
70,16 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Warmtedissipatie
252,68 BTU/h
Gewicht en omvang
Breedte
441 mm
Diepte
360 mm
Hoogte
44 mm
Gewicht
4,97 kg
Verpakking
Breedte verpakking
616 mm
Diepte verpakking
355 mm
Hoogte verpakking
107 mm
Gewicht verpakking
6,6 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
