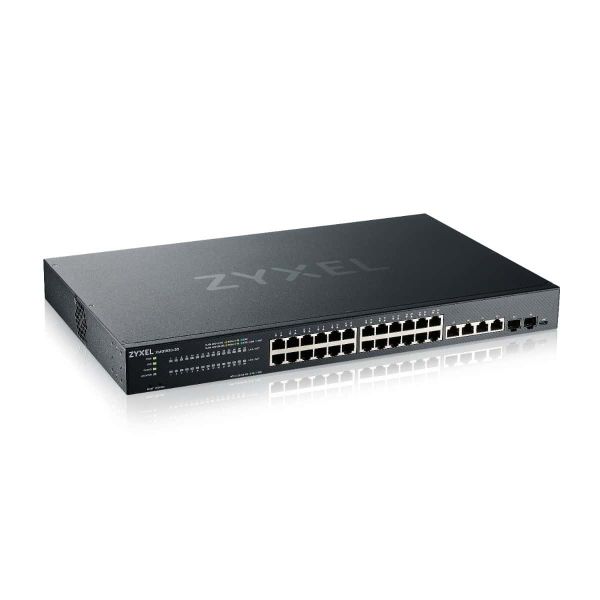

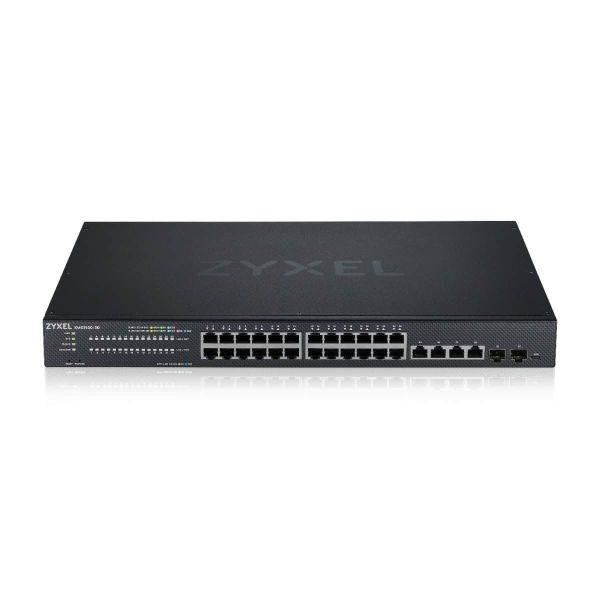

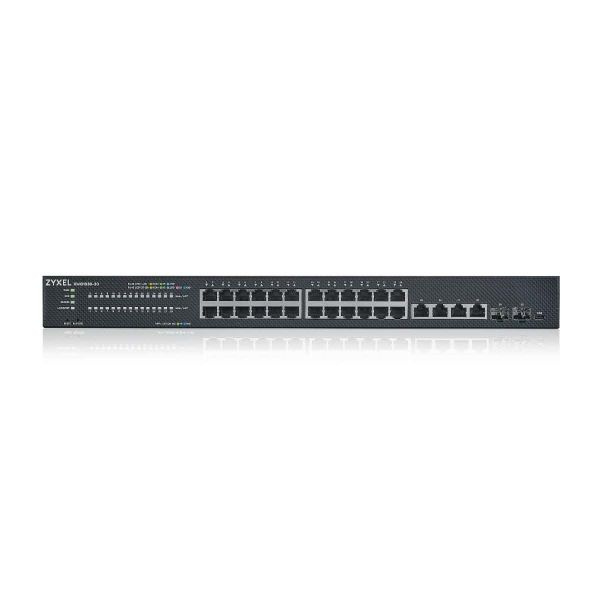

Zyxel XMG1930-30 Managed L3 2.5G Ethernet (100/1000/2500) Zwart

Zyxel XMG1930-30, Managed, L3, 2.5G Ethernet (100/1000/2500), Rack-montage

Nog slechts 8 beschikbaar

Fabrikant ZyXEL
MPN XMG1930-30-ZZ0101F
EAN 4718937622054
€ 1.308,00 excl. BTW

Zyxel XMG1930-30 Managed L3 2.5G Ethernet (100/1000/2500) Zwart

The Backbone to Embrace the New Era of Multi-Gigabit
XMG1930 Series Multi-Gigabit Lite-L3 Smart Managed Switch

Nebula Cloud-Managed Multi-Gigabit Switches
The XMG1930 series is a family of Multi-Gigabit Lite-L3 Smart Managed switches including 2 models, with and without PoE options. This Series features a high Multi-Gig port density for WiFi 6/6E wireless access points, servers, and workstations. Both models support NebulaFlex, and come with simplicity, useful features and superior performance.

The Ideal Solution To Upgrade Your Network with Extensibility and Resilience
There are up to six 10G uplinks including both copper and fiber options which are capable of network expansion and flexible deployment for Service Providers to upgrade network service, as well as 8 PoE++ (60W) ports to adopt WiFi 6/6E and incoming WiFi 7 APs without hassles.

Manage It Your Way!
The XMG1930 Series supports free Nebula cloud management. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller. Typical standalone mode is still available for your preference.

Anytime, Anywhere with Nebula Mobile App
- Easy device onboarding: QR code scan
- At a glance of network status
- Remote control your network
- Reboot AP, Camera by PoE power cycle
- Block clients with unusual traffic

The Nebula Ecosystem
The support of Zyxel Nebula allows your business to experience a unified cloud network from Switch, AP, Firewall to 5G/LTE routers anytime with just a few simple clicks.

Just connect with a single vendor
Resellers, Managed Service Providers (MSPs) and network Administrators will find Simplicity, Scalability, Flexibility, reduced IT risk and reduced costs through Zyxel’s Cloud Networking Management platform, Nebula a single-vendor approach.

Just Connect without the complexity
Nebula offers powerful, effortless and scalable network connectivity that works together to remove the complexity and security risks often associated with having a mixed vendor approach to networking.

Launch an entire network in minutes
Connect, protect and manage Security, Switch, Wireless and LTE/5G connectivity via our centralized Cloud platform, Nebula.

Just Connect, with an unmatched portfolio
Serving customers with over 80 Nebula enabled devices via an ever-growing portfolio, Zyxel is unmatched in its approach to onboarding new and existing products via NebulaFlex. From Deploying a home office to delivering connectivity to distributed network configurations, Zyxel’s Portfolio of Nebula enabled products can accommodate all types of budgets, functionality and scalability for now and for the future.

Application Diagram
XMG1930-30 is ideal for high speed Internet Service Providers to upgrade speed offering from traditional 1G to 2.5G for every user.

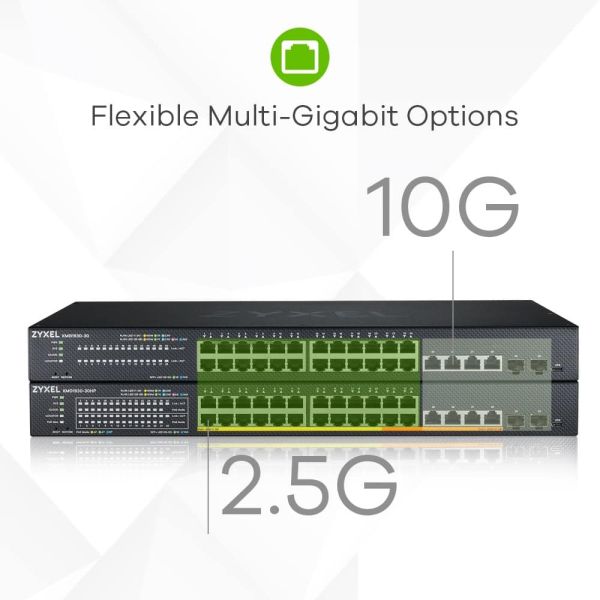

  • Multi-Gigabit supports with 2.5G and 10G combinations offering flexibility for high density Multi-Gig deployments
  • Up to Six 10G uplinks including both copper and fiber options providing extensibility and resilience for networks
  • Main ports support up to 2.5G makes the Switch an ideal solution for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user
  • lNebula ecosystem offers a unified cloud network experience, from wired, wireless and security gateway
  • Smart Managed L2 Switch feature set with L3 static route

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
System event log
Ja
MIB-ondersteuning
RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
2.5G Ethernet (100/1000/2500)
Aantal 10G Ethernet (koper)poorten
4
Fibre channel-poorten
2
Vezel-optische connector
SFP+
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10GBASE-T, 1000BASE-T, 2500BASE-T
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
100,1000,2500,10000 Mbit/s
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Aantal VLANs
4000

Data-uitwisseling

Switchingcapaciteit*
240 Gbit/s
Verzending snelheid
178,5 Mpps
MAC-adrestabel*
16000 entries
Statische route
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
12000
Packet buffergeheugen
2 MB

Beveiliging

DHCP-functies
DHCP Option 82, DHCP relay, DHCPv6 client, DHCPv6 relay
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, HTTPS, SHA-2, SNMP, SNMPv2, SNMPv3, SSL/TLS
SSH/SSL support
Ja
Authenticatie
Gast-VLAN, MAC-gebaseerde authenticatie
Algoritmen wachtrijplanning
Strict Priority Queue (SPQ), WFQ, Weighted Round Robin (WRR)

Protocollen

GARP VLAN Registratieprotocol (GVRP)
Ja
IPv4- & IPv6-functies
Dual stack IPv4/IPv6

Design

Rack-montage*
Ja
Kleur van het product
Zwart
LED-indicatoren
Ja
Certificering
BSMI, EMC

Prestatie

Intern geheugen
256 MB
Flash memory
32 MB
Geluidsniveau
47,6 dB
Mean time between failures (MTBF)
532217 uur

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
Aantal voedingen
1
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
67,1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
67,1 BTU/h

Gewicht en omvang

Breedte
441 mm
Diepte
270 mm
Hoogte
44 mm
Gewicht
3,81 kg

Verpakking

Meegeleverde kabels
AC

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS
