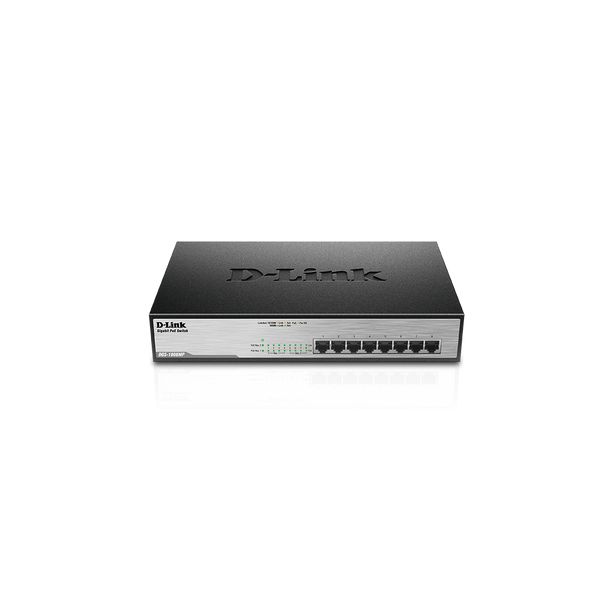

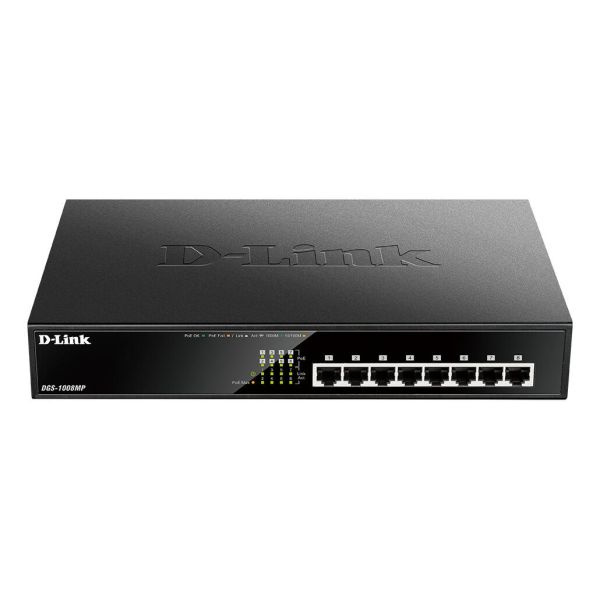

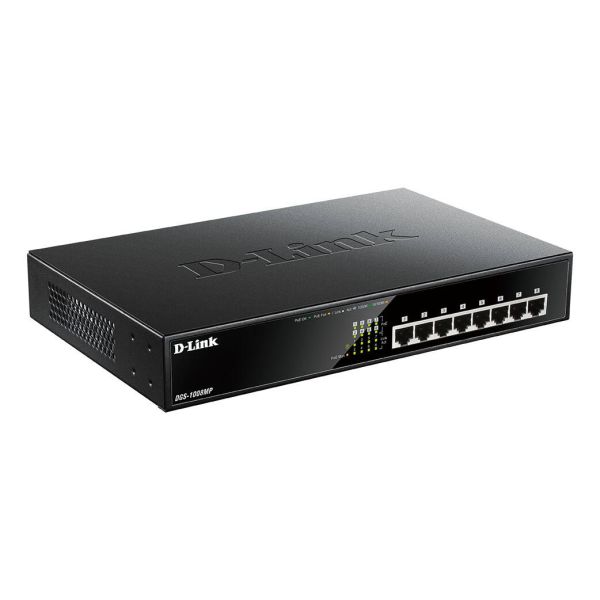

D-Link DGS-1008MP netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

D-Link DGS-1008MP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad (levering verwacht binnen 3 dagen)

MPN DGS-1008MP
EAN 0790069420337
€ 154,00 excl. BTW

D-Link DGS-1008MP netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex
Ja
Auto MDI/MDI-X
Ja

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Packet forwarding rate (1 Gbps)
14880 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
1488000 pps
Packet buffergeheugen
0,192 MB

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja

Technische details

(Binnenste) verzendverpakking hoogte
28,5 cm
(Binnenste) verzendverpakking breedte
40,6 cm
(Binnenste) verzendverpakking lengte
54,5 cm
Nettogewicht transportverpakking
14,2 kg
Producten per (binnenste) verzendverpakking
5 stuk(s)
Pallet brutogewicht (lucht)
563,8 kg
Aantal dozen per pallet (lucht)
36 stuk(s)
Aantal per pallet (lucht)
180 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm

Technische details

Pallethoogte (lucht)
193,5 cm
Pallet brutogewicht (zee)
563,8 kg
Aantal dozen per pallet (zee)
36 stuk(s)
Producten per pallet (zee)
180 stuk(s)
Pallethoogte (zee)
193,5 cm
(Binnenste) verzendverpakking gewicht
15,3 kg

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
13,5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
140 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
280 mm
Diepte
180 mm
Hoogte
44 mm
Gewicht
1,84 kg

Verpakking

Breedte verpakking
262 mm
Diepte verpakking
391 mm
Hoogte verpakking
102 mm
Gewicht verpakking
2,85 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
