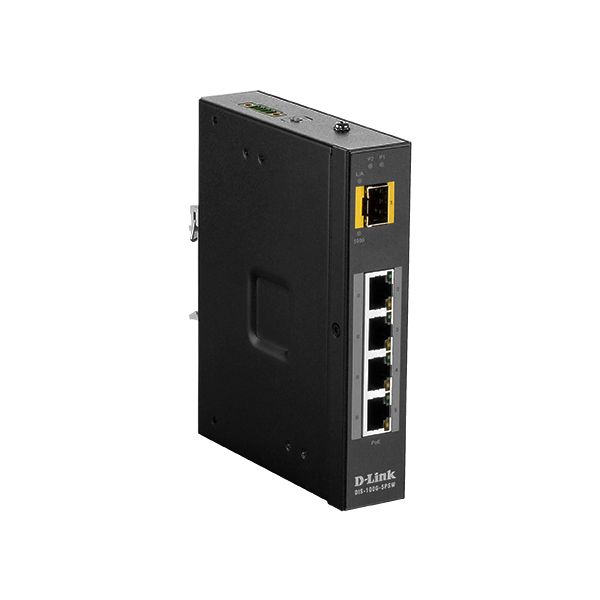

D-Link DIS‑100G‑5PSW Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

D-Link DIS‑100G‑5PSW, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Nog slechts 5 beschikbaar

MPN DIS-100G-5PSW
EAN 0790069437885
€ 309,00 excl. BTW

D-Link DIS‑100G‑5PSW Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Unmanaged Plug and Play with SFP and PoE
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.

Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment

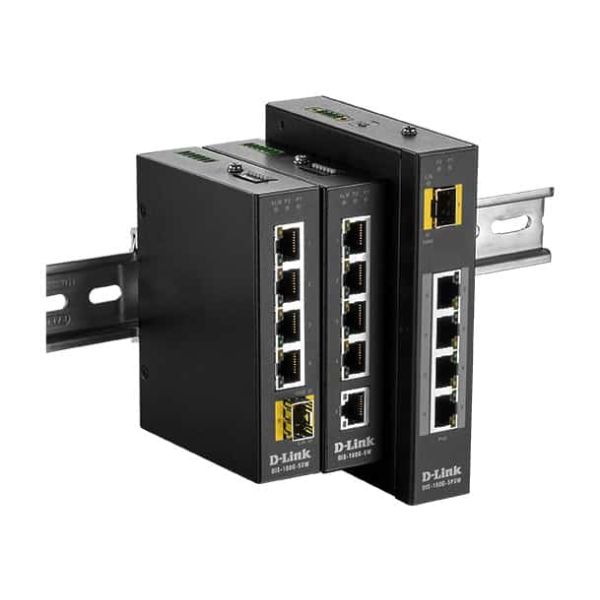

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.
  • 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots
  • 120 W PoE Budget
  • Unmanaged plug-and-play simplicity
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, EMC

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Switch-laag
L2
Traffic shaping
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
1
Vezel-optische connector
LC

Netwerk

Netwerkstandaard*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Full duplex
Ja
Datastroombeheer
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja

Data-uitwisseling

Switchingcapaciteit*
10 Gbit/s
Verzending snelheid
7,44 Mpps
MAC-adrestabel*
2000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
LED-indicatoren
LAN, Power over Ethernet (PoE), Stroom
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Elektromagnetische compatibiliteit
FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
Certificering
IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE

Technische details

(Binnenste) verzendverpakking hoogte
24 cm
(Binnenste) verzendverpakking breedte
38 cm
(Binnenste) verzendverpakking lengte
39 cm
Nettogewicht transportverpakking
7 kg
Producten per (binnenste) verzendverpakking
10 stuk(s)

Technische details

Pallet brutogewicht (lucht)
251,3 kg
Aantal dozen per pallet (lucht)
30 stuk(s)
Aantal per pallet (lucht)
300 stuk(s)
Pallet brutolengte
120 cm
Pallet brutobreedte
110 cm
Pallethoogte (lucht)
133,5 cm
Pallet brutogewicht (zee)
391,9 kg
Aantal dozen per pallet (zee)
48 stuk(s)
Producten per pallet (zee)
480 stuk(s)
Pallethoogte (zee)
2,06 m
(Binnenste) verzendverpakking gewicht
7,81 kg

Energie

DC voltage input
12 - 58 V
Vermogensverbruik (max)
120,2 W
Stroomspanning bescherming
Overstroom, Omgekeerde polariteit

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Voltagebereik Power over Ethernet (PoE)
54 - 58 V
Totaal Power over Ethernet (PoE)-budget
120 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Warmtedissipatie
410,12 BTU/h

Gewicht en omvang

Breedte
139 mm
Diepte
29 mm
Hoogte
107 mm
Gewicht
375 g

Verpakking

Breedte verpakking
181 mm
Diepte verpakking
210 mm
Hoogte verpakking
75 mm
Gewicht verpakking
700 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
