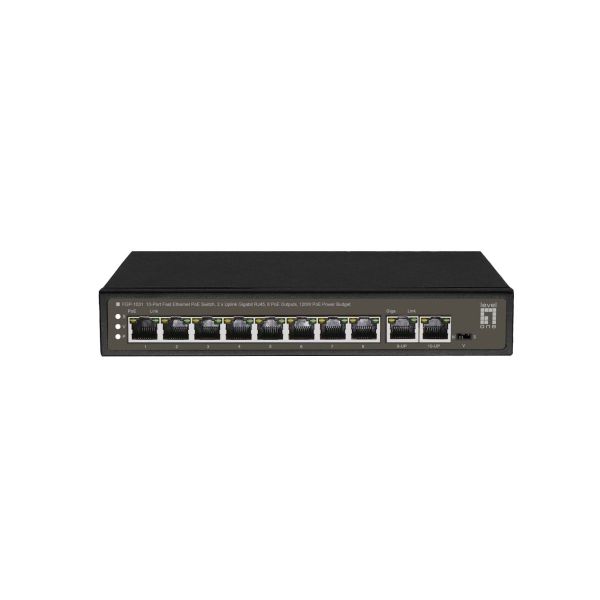

LevelOne FGP-1031 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

LevelOne FGP-1031, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Ruim op voorraad

Fabrikant LevelOne
MPN FGP-1031
EAN 4015867228166
€ 69,00 excl. BTW

LevelOne FGP-1031 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

The FGP-1031 switch provides 10 port 10/100 ports with 2 port 1000/100/10 Mbps uplink port. It is designed for easy installation and high performance in an environment where traffic is on the network and the number of users increases continuously. The FGP-1031 provides you with 8 PSE PoE ports, the first of which can even supply up to 60W. That can solve the limitation of the power outlet location and offer the system designer a flexible solution to locate the network device everywhere.The device size is specifically designed for medium to large workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrade to network capacity.
  • 8 10/100 Mbps PoE ports/ 2 Port Gigabit
  • First port supports output HiPoE_60W
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
10
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Fast Ethernet (koperen) ports kwantiteit
8
Aantal Gigabit Ethernet (koper)-poorten
2

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja
Ethernet LAN, data-overdrachtsnelheden
100,1000 Mbit/s
Auto-negotiation
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

MAC-adrestabel*
2000 entries

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom
Land van herkomst
China

Prestatie

Fanloos
Ja
Mean time between failures (MTBF)
5000 uur

Energie

Stroombron*
AC
AC-ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Totaal Power over Ethernet (PoE)-budget
120 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 55 °C
Temperatuur bij opslag
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
210 mm
Diepte
150 mm
Hoogte
35 mm
Gewicht
790 g

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Breedte verpakking
264 mm
Diepte verpakking
217 mm
Hoogte verpakking
67 mm
Gewicht verpakking
1,14 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
