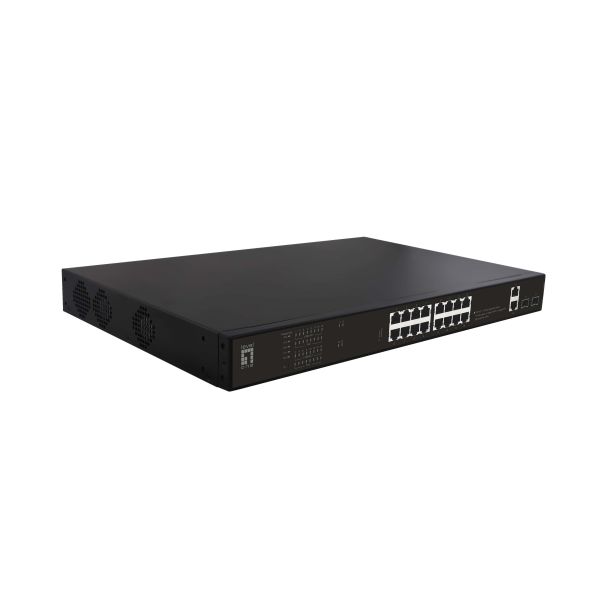

LevelOne GEP-2021 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

LevelOne GEP-2021, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

Fabrikant LevelOne
MPN GEP-2021
EAN 4015867223895
€ 282,00 excl. BTW

LevelOne GEP-2021 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

The GEP-2021 is LevelOne latest generation of 20-Port Gigabit Unmanaged PoE Switch, with 2 Gigabit RJ45 and 2 Gigabit SFP Uplink ports. also offers powerful DIP switch button configuration for VLAN mode and Default mode features. Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 40Gbps and bring Gigabit speeds all the way to your computers.

The GEP-2021 PoE-enabled switches features an IEEE 802.3af/at certified, better PoE functionality with 270W PoE power budget and usability. supports up to 16 ports at 15.4W, or 9 ports at 30 W to meet the increasing power demands of users. giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.
  • 16 Gigabit PoE ports, 2 Gigabit ports and 2 Gigabit SFP slots
  • Total PoE power budget: 270W, up to 30W per port
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Supports DIP switch configuration for VLAN mode and Default mode features
  • Supports port-based VLAN
  • Connection distance of up to 250m at 10Mbps data rate
  • 6KV surge protection, 6KV/8KV ESD protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
20
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Fast Ethernet (koperen) ports kwantiteit
16
Aantal Gigabit Ethernet (koper)-poorten
2
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.1ab, IEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
10G support*
Nee
VLAN=ondersteuning
Ja

Optische vezel

Transmissie afstand (max)
0,25 km

Data-uitwisseling

MAC-adrestabel*
8000 entries
Packet buffergeheugen
29,8 MB

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja
Land van herkomst
China
Certificering
CE, RoHS

Prestatie

Type processor
Ja
Processormodel
Realtek RTL8382L
Flash memory
4 MB
MTBF (PoE)
250000 uur

Technische details

Pallet nettohoogte
140,4 cm
Pallet nettodiepte
80 cm
Pallet nettobreedte
120 cm

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Spanningsbeveiliging
Ja
Overspanningsbeveiliging in voltage
6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
16
Vermogen per poort Power over Ethernet (PoE)
15,4 W
Totaal Power over Ethernet (PoE)-budget
270 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 85 °C
Temperatuur bij opslag
-40 - 90 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Warmtedissipatie
86,435 BTU/h

Gewicht en omvang

Breedte
285 mm
Diepte
442 mm
Hoogte
44 mm
Gewicht
4 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Breedte verpakking
395 mm
Diepte verpakking
90 mm
Hoogte verpakking
530 mm
Gewicht verpakking
4,8 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
